ST162-AEMVF (1985)
Toyota Carina Ff

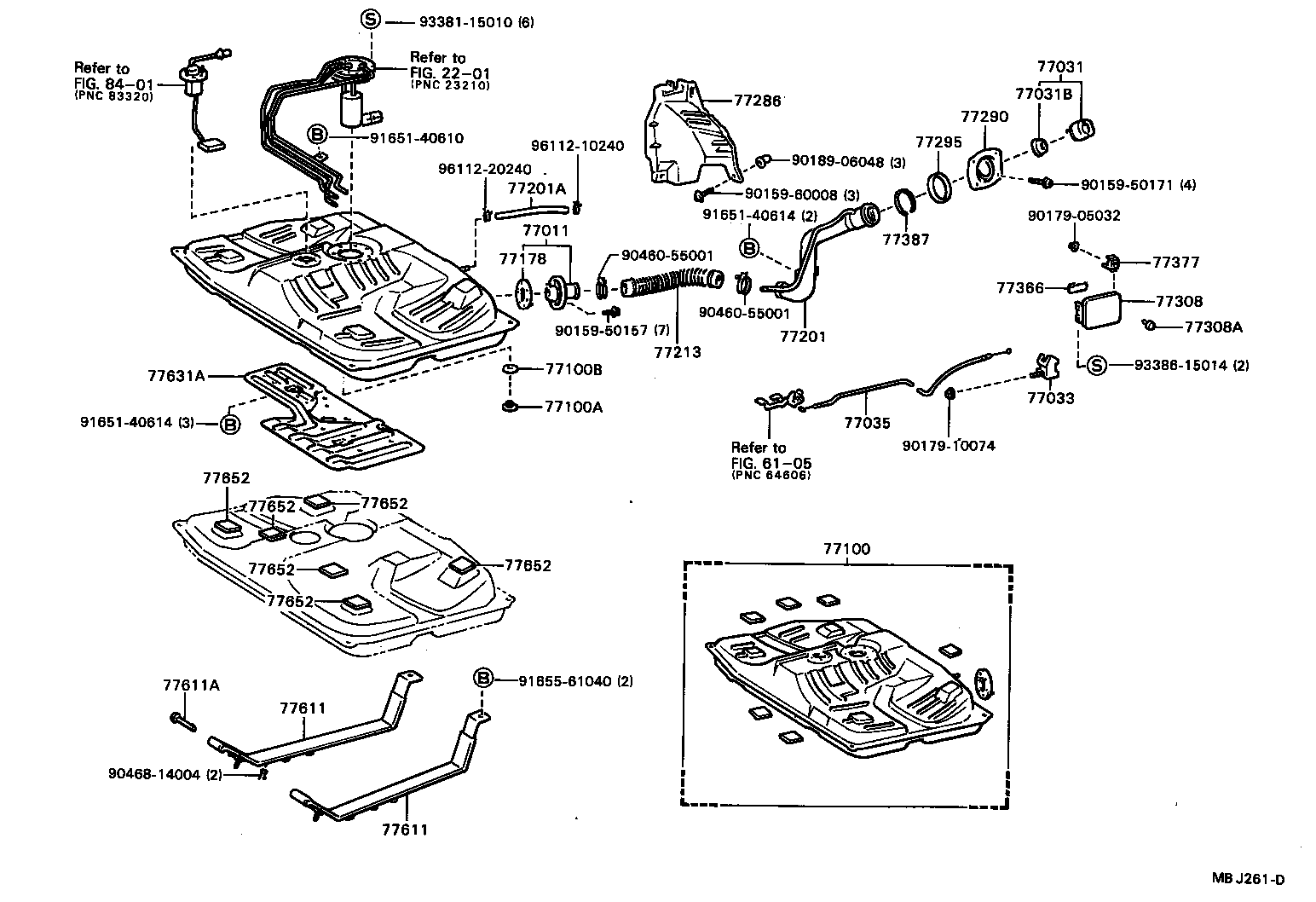

ILLUST NO. 1 OF 2(8508- )AT160,ST162
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-20020 |
AT160,ST162 |
1 | ||
| 77011-20010 |
AT160,ST162 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
AT15#,160,ST150,162 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-12040 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-20933 |
AT160,ST162 |
1 | ||
| 77001-20935 |
AT160,ST162 |
1 | ||
| 77001-29205 |
AT160,ST162 |
1 | ||
| 77001-29255 |
AT160,ST162 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AT15#,CT150,ST150,162 |
1 | ||
| 90341-20004 |
AT160,ST162 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 90430-20007 |
AT160,ST162 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
AT160,ST162 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-20180 |
AT160,ST162 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22912 |
AT160,ST162 長さ=220 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-20080 |
AT160,ST162 |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-20090 |
AT160,ST162 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-20010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 77290-20011 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77293-20010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 77293-32010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-20060 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-24010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-16011 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 77391-32010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-20090 |
AT160,ST162 LH |
1 | ||
| 77602-20110 |
AT160,ST162 W/PROTECTOR,LH |
1 | ||
| 77601-20060 |
AT160,ST162 RH |
1 | ||
| 77602-20110 |
AT160,ST162 LH |
1 | ||
| 77601-20080 |
AT160,ST162 RH |
1 | ||
| 77601-20080 |
AT160,ST162 W/PROTECTOR,RH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-20090 |
AT160,ST162 LH |
1 | ||
| 77602-20110 |
AT160,ST162 W/PROTECTOR,LH |
1 | ||
| 77601-20060 |
AT160,ST162 RH |
1 | ||
| 77602-20110 |
AT160,ST162 LH |
1 | ||
| 77601-20080 |
AT160,ST162 RH |
1 | ||
| 77601-20080 |
AT160,ST162 W/PROTECTOR,RH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-20040 |
AT160,ST162 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
AT160,ST162 |
6 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
AT160,ST162 |
6 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
AT160,ST162 |
6 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
AT160,ST162 |
6 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
AT160,ST162 |
6 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
AT160,ST162 |
6 | ||
| Common parts | ||||
| 90159-50157 | ||||
| 90159-50171 | ||||
| 90159-60008 | ||||
| 90179-05032 | ||||
| 90179-10074 | ||||
| 90189-06048 | ||||
| 90460-55001 | ||||
| 90468-14004 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 91655-61040 | ||||
| 93381-15010 | ||||
| 93386-15014 | ||||
| 96112-10240 | ||||
| 96112-20240 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 6105 | ||||
| 8401 | ||||

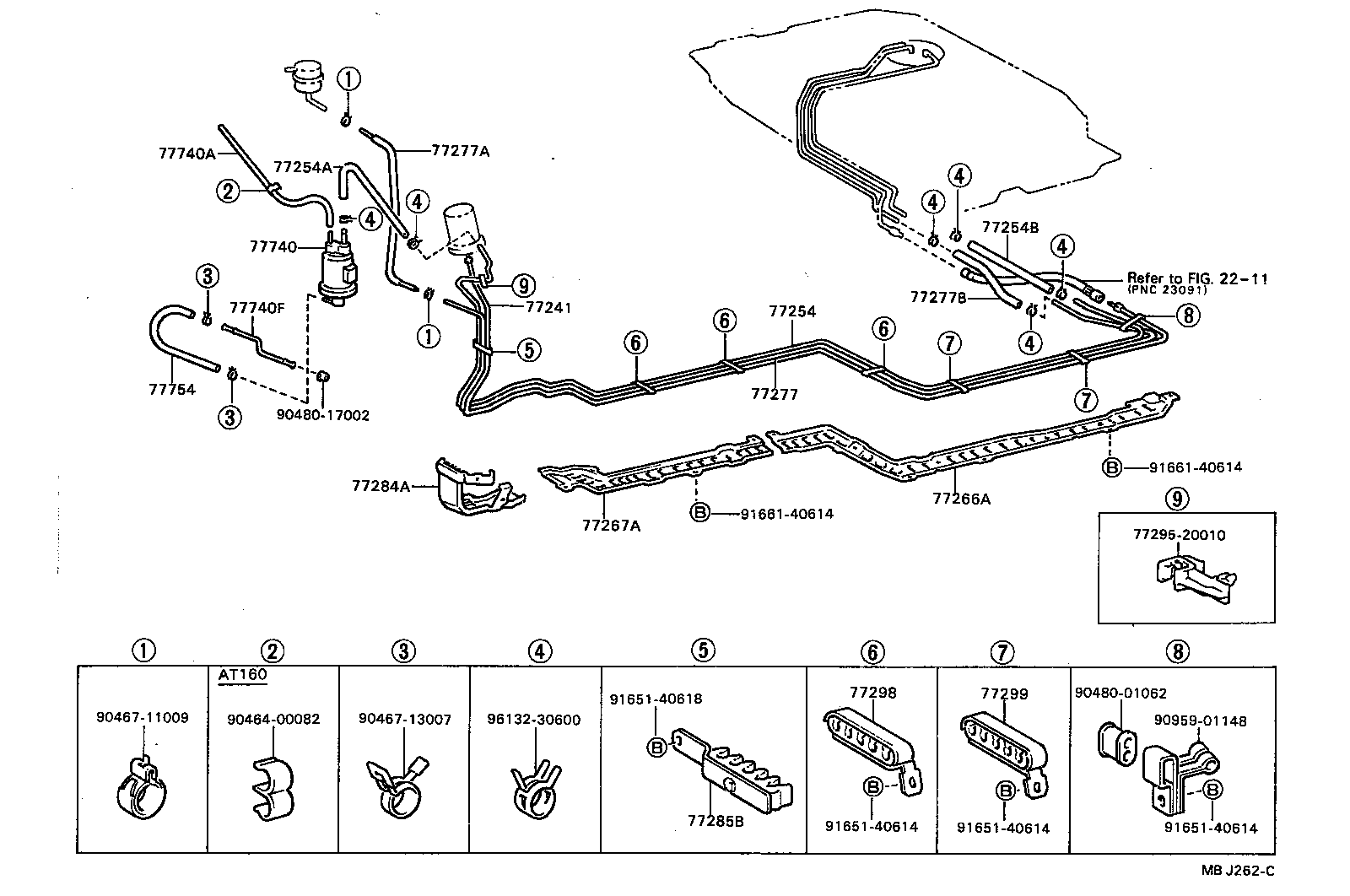

ILLUST NO. 2 OF 2(8508- )AT160,ST162
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-20320 |
AT160,ST162 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-20070 |
AT160,ST162 |
1 | ||
| 77261-20071 |
AT160,ST162 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 90447-12045 |
AT160,ST162 |
1 | ||
| 95333-06030 |
AT160,ST162 *H,L=300 |
1 | ||
| 77259-20060 |
AT160,ST162 長さ=240 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06020 |
AT160,ST162 *H,L=140 |
1 | ||
| 95332-06020 |
AT160,ST162 *H,L=140 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20070 |
AT160,ST162 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-20190 |
AT160,ST162 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12018 |
ST150,162 |
1 | ||
| 90447-12085 |
ST150,162 長さ=320 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06020 |
AT160,ST162 *H,L=140 |
1 | ||
| 95333-06020 |
AT160,ST162 *H,L=140 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-20041 |
AT151,160,CT150,ST150,162 |
1 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-20010 |
AT151,160,CT150,ST150,162 |
3 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-20010 |
AT151,160,CT150,ST150,162 |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-20230 |
AT151,160,ST150,162 |
1 | ||
| 77704-60050 |
AT151,160,ST150,162 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
ST150,162 *H,L=360,ﾏｰｸ=#* |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-20050 |
AT160,ST162 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12020 |
AT15#,160,ST150,162 |
1 | ||
| Common parts | ||||
| 77295-20010 | ||||
| 90464-00082 | ||||
| 90467-11009 | ||||
| 90467-13007 | ||||
| 90480-01062 | ||||
| 90480-17002 | ||||
| 90959-01148 | ||||
| 91651-40614 | ||||
| 91651-40618 | ||||
| 91661-40614 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 2211 | ||||
