ST150-AEPEL (1984)
Toyota Carina Ff
Production
May 1984
-
Apr 1988
Engine
1SILU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

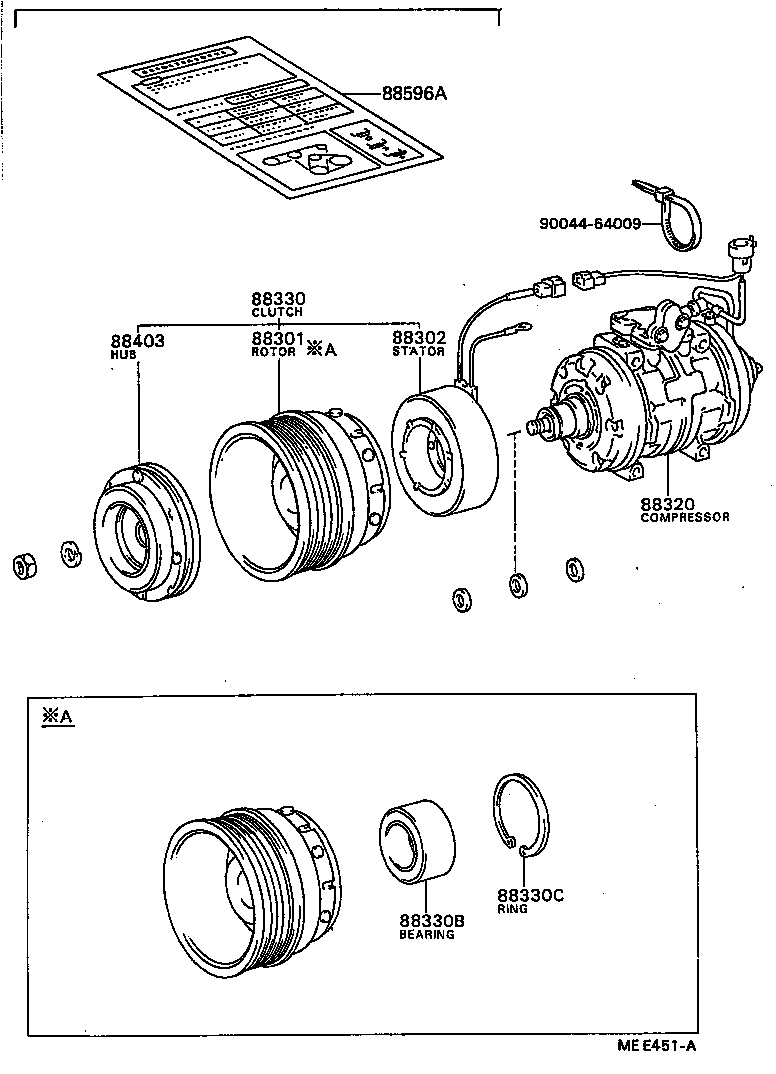

ILLUST NO. 1 OF 2(8405- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-32010 |
CT150,ST150 |
1 | ||
| 88412-32010 |
ST150 |
1 | ||
| 88412-20080 |
ST150 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
ST150 |
1 | ||
| 88411-32010 |
ST150 |
1 | ||
| 88411-32010 |
ST150 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-12200 |
ST150 |
1 | ||
| 88320-32010 |
CT150,ST150 |
1 | ||
| 88320-20460 |
ST150 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-32010 |
ST150 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
AT15#,CT150,ST150 |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07118 |
CT150,ST150 |
1 | ||
| 90099-07094 |
ST150 |
1 | ||
| 90099-07118 |
ST150 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14030 |
AT15#,CT150,ST150 |
1 | ||
| Common parts | ||||
| 90044-64009 | ||||

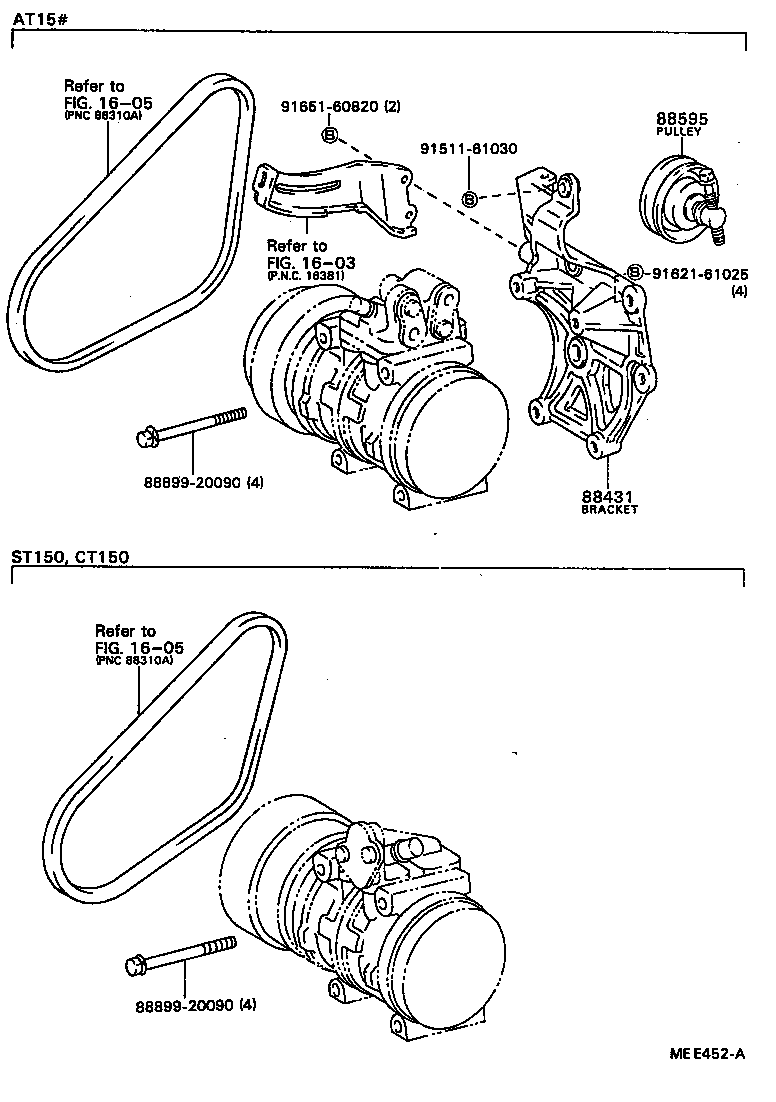

ILLUST NO. 2 OF 2(8405- )AT15#,CT150,ST150
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88899-20090 | ||||
| 91511-61030 | ||||
| 91621-61025 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1605 | ||||
