ST150-AEPEL (1984)
Toyota Carina Ff

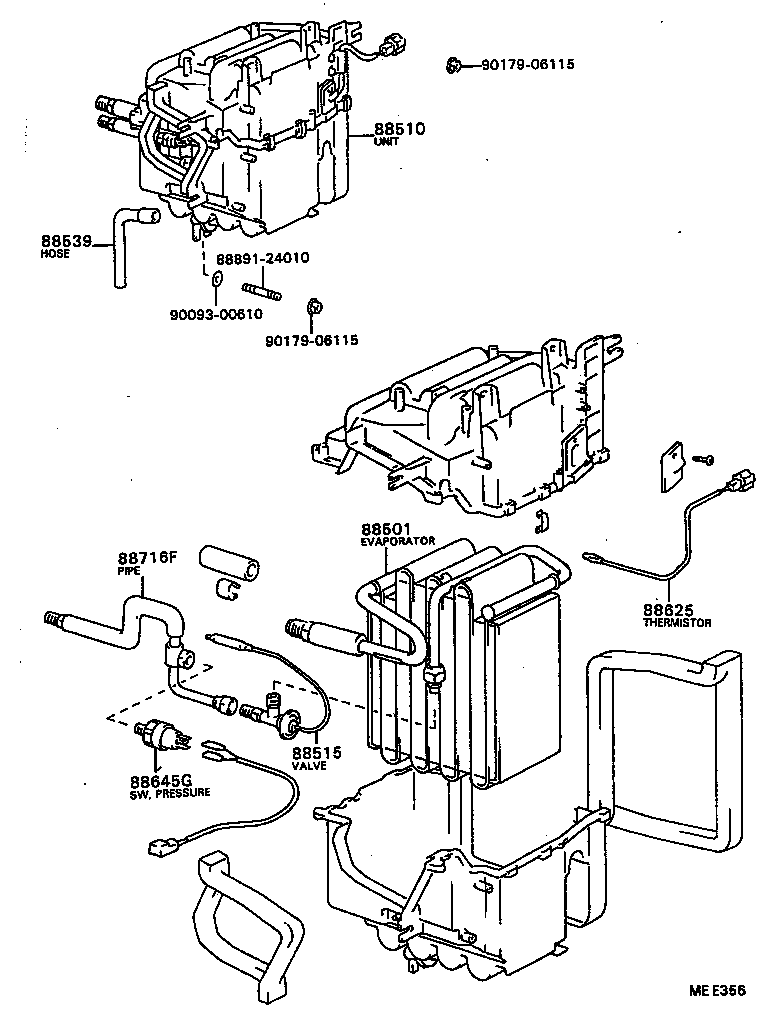

(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20180 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-20350 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20050 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-20100 |
AT15#,CT150,ST150 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12070 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-12020 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 88645-12010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-20670 |
AT15#,160,CT150,ST150,162 |
1 | ||
| Common parts | ||||
| 88891-24010 | ||||
| 90093-00610 | ||||
| 90179-06115 | ||||

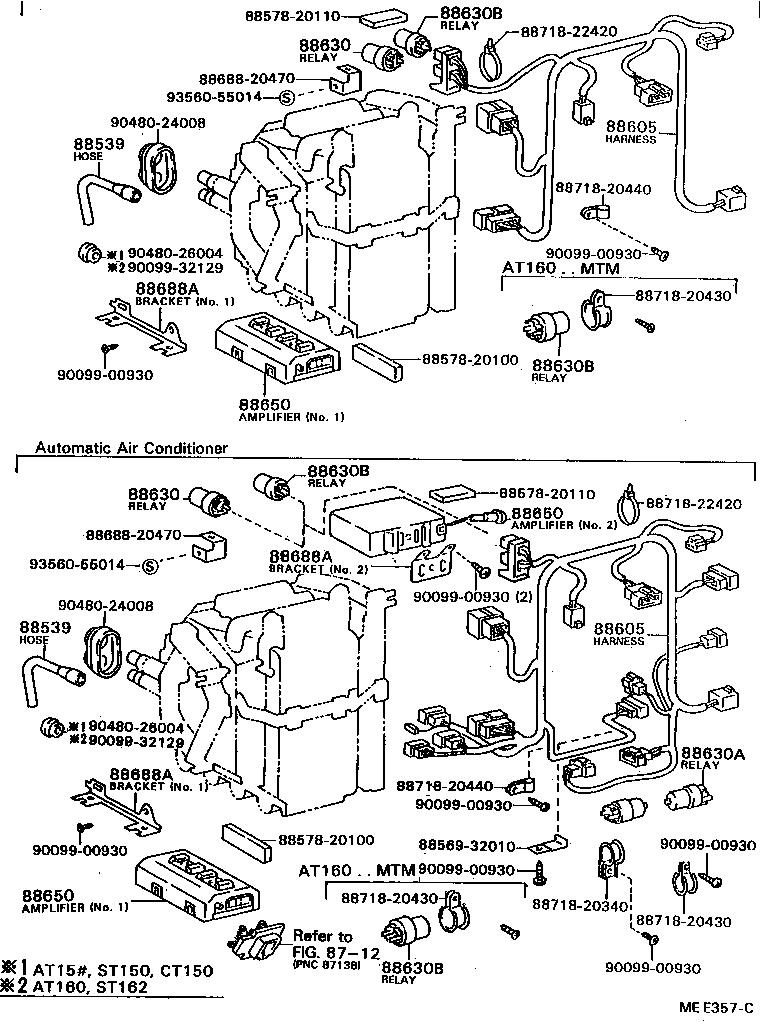

(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-20100 |
AT15#,CT150,ST150 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-20100 |
AT15#,CT150,ST150 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-20420 |
ST150..SE W/*AAC |
1 | ||
| 88605-20410 |
ST150,162 |
1 | ||
| 88605-20780 |
ST150..SE W/*PHC & *AAC |
1 | ||
| 88605-20770 |
ST150..SE W/*PHC |
1 | ||
| 88605-20580 |
ST150..SE W/*AAC |
1 | ||
| 88605-20410 |
ST150 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-20420 |
ST150..SE W/*AAC |
1 | ||
| 88605-20410 |
ST150,162 |
1 | ||
| 88605-20780 |
ST150..SE W/*PHC & *AAC |
1 | ||
| 88605-20770 |
ST150..SE W/*PHC |
1 | ||
| 88605-20580 |
ST150..SE W/*AAC |
1 | ||
| 88605-20410 |
ST150 |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-03001 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,ST |
2 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20150 |
AT150,160,CT150,ST150,162..GT,GTR,SE W/*AAC,NO.2 |
1 | ||
| 88650-20180 |
ST150 NO.1 |
1 | ||
| 88650-20310 |
ST150..SE W/*PHC,NO.1 |
1 | ||
| 88650-20150 |
AT150,CT150,ST150..SE W/*AAC,NO.2,*LHC |
1 | ||
| 88650-20150 |
AT150,CT150,ST150,162..GTR,SE W/*AAC,NO.2 |
1 | ||
| 88650-20311 |
ST150..SE W/*PHC,NO.1 |
1 | ||
| 88650-20181 |
ST150 NO.1 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20150 |
AT150,160,CT150,ST150,162..GT,GTR,SE W/*AAC,NO.2 |
1 | ||
| 88650-20180 |
ST150 NO.1 |
1 | ||
| 88650-20310 |
ST150..SE W/*PHC,NO.1 |
1 | ||
| 88650-20150 |
AT150,CT150,ST150..SE W/*AAC,NO.2,*LHC |
1 | ||
| 88650-20150 |
AT150,CT150,ST150,162..GTR,SE W/*AAC,NO.2 |
1 | ||
| 88650-20311 |
ST150..SE W/*PHC,NO.1 |
1 | ||
| 88650-20181 |
ST150 NO.1 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20150 |
AT150,160,CT150,ST150,162..GT,GTR,SE W/*AAC,NO.2 |
1 | ||
| 88650-20180 |
ST150 NO.1 |
1 | ||
| 88650-20310 |
ST150..SE W/*PHC,NO.1 |
1 | ||
| 88650-20150 |
AT150,CT150,ST150..SE W/*AAC,NO.2,*LHC |
1 | ||
| 88650-20150 |
AT150,CT150,ST150,162..GTR,SE W/*AAC,NO.2 |
1 | ||
| 88650-20311 |
ST150..SE W/*PHC,NO.1 |
1 | ||
| 88650-20181 |
ST150 NO.1 |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-20360 |
AT150,160,CT150,ST150,162..GT,GTR,SE W/*AAC,NO.2 |
1 | ||
| 88688-20360 |
AT150,CT150,ST150..SE W/*AAC,NO.2 |
1 | ||
| 88688-20360 |
AT150,CT150,ST150,162..GTR,SE W/*AAC,NO.2 |
1 | ||
| 88688-20340 |
AT160,CT150,ST150,162 NO.1 |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-20360 |
AT150,160,CT150,ST150,162..GT,GTR,SE W/*AAC,NO.2 |
1 | ||
| 88688-20360 |
AT150,CT150,ST150..SE W/*AAC,NO.2 |
1 | ||
| 88688-20360 |
AT150,CT150,ST150,162..GTR,SE W/*AAC,NO.2 |
1 | ||
| 88688-20340 |
AT160,CT150,ST150,162 NO.1 |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-20360 |
AT150,160,CT150,ST150,162..GT,GTR,SE W/*AAC,NO.2 |
1 | ||
| 88688-20360 |
AT150,CT150,ST150..SE W/*AAC,NO.2 |
1 | ||
| 88688-20360 |
AT150,CT150,ST150,162..GTR,SE W/*AAC,NO.2 |
1 | ||
| 88688-20340 |
AT160,CT150,ST150,162 NO.1 |
1 | ||
| Common parts | ||||
| 88569-32010 | ||||
| 88578-20100 | ||||
| 88578-20110 | ||||
| 88688-20470 | ||||
| 88718-20340 | ||||
| 88718-20430 | ||||
| 88718-20440 | ||||
| 88718-22420 | ||||
| 90099-00930 | ||||
| 90099-32129 | ||||
| 90480-24008 | ||||
| 90480-26004 | ||||
| 93560-55014 | ||||
| Linked diagrams | ||||
| 8712 | ||||

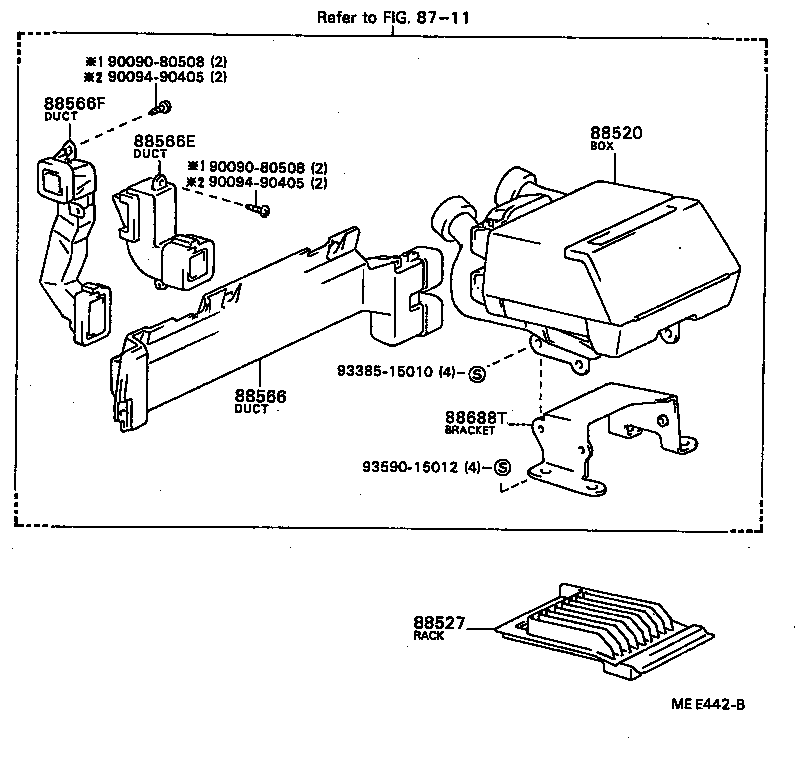

(8405-8605) ; (8605- )DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88520 - BOX ASSY, COOLING | ||||
| 88520-20100 |
AT15#,160,CT150,ST150,162 SEPIA BROWN |
1 | ||
| 88520-20030 |
AT15#,160,CT150,ST150,162 BLUE |
1 | ||
| 88520-20010 |
AT15#,160,CT150,ST150,162 GRAY |
1 | ||
| 88527 - RACK, CASSETTE | ||||
| 88527-20010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88566-20170 |
AT15#,160,CT150,ST150,162 BROWN |
1 | ||
| 88566-20270 |
AT15#,160,CT150,ST150,162 BLUE |
1 | ||
| 88566-20260 |
AT15#,160,CT150,ST150,162 BEIGE |
1 | ||
| 88566-20250 |
AT15#,160,CT150,ST150,162 GRAY |
1 | ||
| 88566-20060 |
AT15#,160,CT150,ST150,162 GRAY |
1 | ||
| 88566-20110 |
AT15#,160,CT150,ST150,162 BLUE |
1 | ||
| 88566E - DUCT, COOLER AIR, NO.2 | ||||
| 88566-20090 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 88566F - DUCT, COOLER AIR, NO.3 | ||||
| 88566-20080 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 88688T - BRACKET (FOR COOL BOX) | ||||
| 88688-20390 |
AT15#,160,CT150,ST150,162 |
1 | ||
| Common parts | ||||
| 90090-80508 | ||||
| 90094-90405 | ||||
| 93385-15010 | ||||
| 93590-15012 | ||||
| Linked diagrams | ||||
| 8711 | ||||

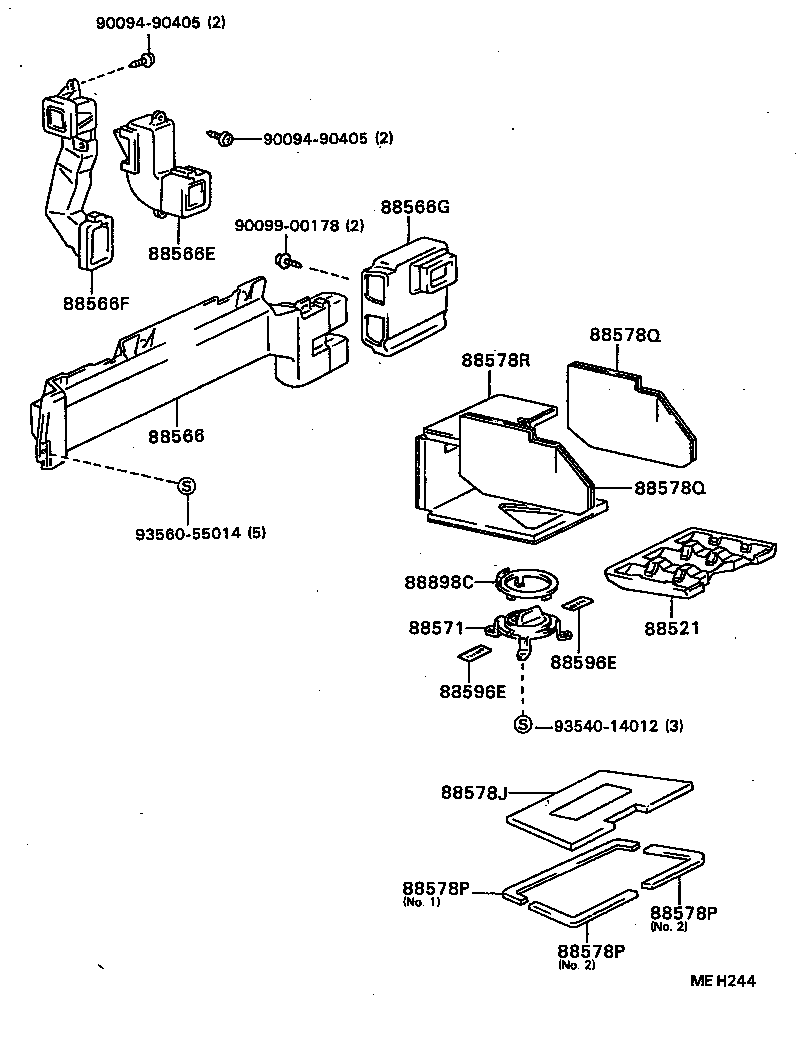

(8605- )GT,GTR,SE,SG,ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88521 - CASE, COOLER UNIT | ||||
| 88529-20160 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST GRAY |
1 | ||
| 88529-20220 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST BLUE |
1 | ||
| 88529-20190 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST BEIGE |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88566-20170 |
AT15#,160,CT150,ST150,162 BROWN |
1 | ||
| 88566-20270 |
AT15#,160,CT150,ST150,162 BLUE |
1 | ||
| 88566-20260 |
AT15#,160,CT150,ST150,162 BEIGE |
1 | ||
| 88566-20250 |
AT15#,160,CT150,ST150,162 GRAY |
1 | ||
| 88566-20060 |
AT15#,160,CT150,ST150,162 GRAY |
1 | ||
| 88566-20110 |
AT15#,160,CT150,ST150,162 BLUE |
1 | ||
| 88566E - DUCT, COOLER AIR, NO.2 | ||||
| 88566-20090 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 88566F - DUCT, COOLER AIR, NO.3 | ||||
| 88566-20080 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 88566G - DUCT, COOLER AIR, NO.4 | ||||
| 88566-20200 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
1 | ||
| 88571 - GRILLE, AIR OUTLET | ||||
| 88529-20200 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST BEIGE |
1 | ||
| 88529-20170 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST GRAY |
1 | ||
| 88529-20230 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST BLUE |
1 | ||
| 88578J - PACKING, COOL BOX, NO.1 | ||||
| 88578-20130 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
1 | ||
| 88578P - PACKING, COOL BOX, NO.2 | ||||
| 88578-20140 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST NO.2 |
2 | ||
| 88578-20210 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST NO.1 |
1 | ||
| 88578P - PACKING, COOL BOX, NO.2 | ||||
| 88578-20140 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST NO.2 |
2 | ||
| 88578-20210 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST NO.1 |
1 | ||
| 88578P - PACKING, COOL BOX, NO.2 | ||||
| 88578-20140 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST NO.2 |
2 | ||
| 88578-20210 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST NO.1 |
1 | ||
| 88578Q - PACKING, COOL BOX, NO.3 | ||||
| 88578-20180 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST LH |
1 | ||
| 88578-20170 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST RH |
1 | ||
| 88578Q - PACKING, COOL BOX, NO.3 | ||||
| 88578-20180 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST LH |
1 | ||
| 88578-20170 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST RH |
1 | ||
| 88578R - PACKING, COOL BOX, NO.4 | ||||
| 88578-20160 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
1 | ||
| 88596E - PLATE, CAUTION | ||||
| 88596-20020 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST CLOSE |
1 | ||
| 88596-20030 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST OPEN |
1 | ||
| 88596E - PLATE, CAUTION | ||||
| 88596-20020 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST CLOSE |
1 | ||
| 88596-20030 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST OPEN |
1 | ||
| 88898C - RING, COOL BOX | ||||
| 88529-20210 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST BEIGE |
1 | ||
| 88529-20240 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST BLUE |
1 | ||
| 88529-20180 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST GRAY |
1 | ||
| Common parts | ||||
| 90094-90405 | ||||
| 90099-00178 | ||||
| 93540-14012 | ||||
| 93560-55014 | ||||
