ST150-AEPEL (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 1SILU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )1SILU

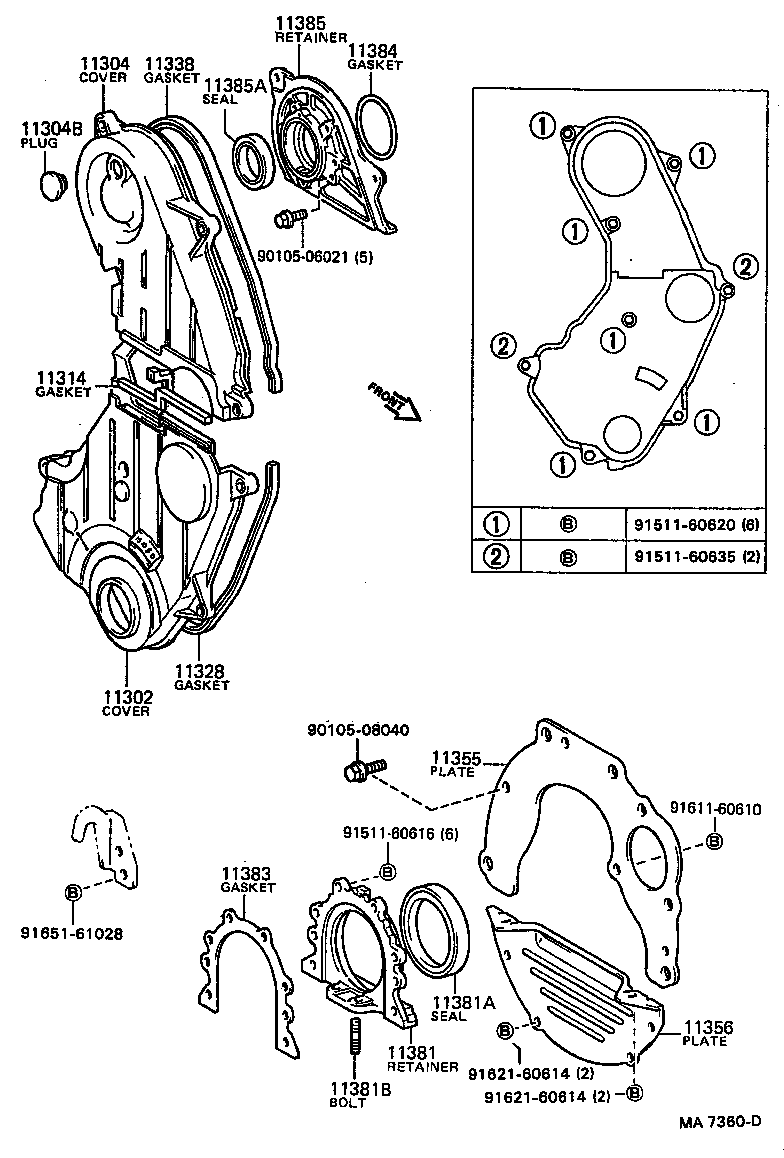

Click highlighted areas on diagram

diagram 11302 11304 11304B 11314 11328 11338 11355 11356 11381 11381A 11381B 11383 11384 11385 11385A 9010506021 9010508040 9151160616 9151160620 9151160635 9161160610 9162160614 9162160614 9165161028
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-63010

1SILU..ST150

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11303-63010

1SILU..ST150

 1
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01334

1SILU..ST150

 1
11314 - GASKET, TIMING CHAIN NO.2 COVER
11319-63010

1SILU..ST150

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-63010

1SILU..ST150

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11329-63010

1SILU..ST150

 1
11355 - PLATE, REAR END
11355-63020

1SILU,3SGELU..ST150,162

 1
11355-63021

1SILU,3SGELU..ST150,162

 1
11356 - PLATE, REAR END, NO.2
11356-63020

1SILU,3SGELU..ST150,162

 1
11356-63030

1SILU,3SGELU..ST150,162

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-63011

1SILU,3SGELU..ST150,162

 1
11381-63010

1SILU,3SGELU..ST150,162

 1
11381A - SEAL, ENGINE REAR OIL
90311-85003

1SILU,3SGELU..ST150,162

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90116-06022

1SILU..ST150

 2
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-63010

1SILU,3SGELU..ST150,162

 1
11383-63010

1SILU..ST150

 1
11384 - GASKET, OIL SEAL RETAINER, NO.2
90301-65002

1SILU..ST150

 1
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-63010

1SILU..ST150

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-38017

1SILU..ST150

 1
90311-38017

1SILU..ST150

 1
Common parts
90105-06021
90105-08040
91511-60616
91511-60620
91511-60635
91611-60610
91621-60614
91651-61028
