ET176V-CXMNS (1988)

Toyota Carina Ff

Production May 1988 - Nov 1992
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )ET176

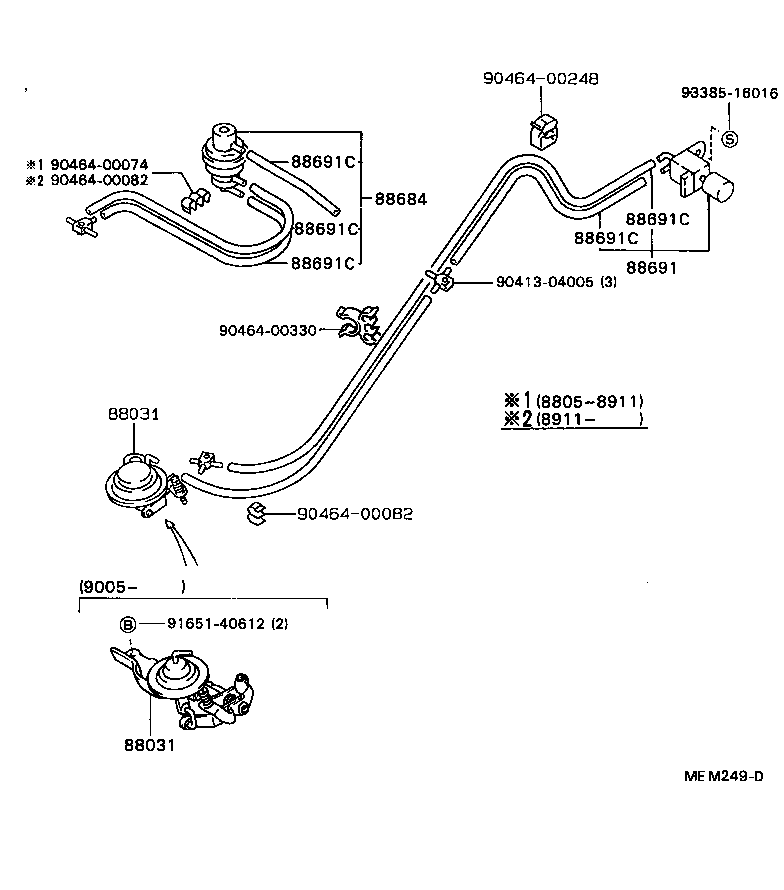

Click highlighted areas on diagram

diagram 88031 88031 88684 88691 88691C 88691C 88691C 88691C 88691C 9041304005 9046400074 9046400082 9046400082 9046400248 9046400330 9165140612 9338516016
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-16080

ET176

 1
88031-12200

ET176

 1
88031 - ACTUATOR SET, IDLE-UP
88031-16080

ET176

 1
88031-12200

ET176

 1
88684 - VALVE, VACUUM
88684-22050

ET176..MTM

 1
88684-20010

ET176..MTM

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-2B110

ET176

 1
88690-2B380

ET176

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

ET176;AT170..4FC..(DX,SE,SV)..CBR

*H,L=300

 1
90999-92003

ET176

長さ=600

 1
90999-92003

ET176;AT170..MTM..(DX,SE,SV)..CBR

長さ=600

 1
90999-92002

ET176

*H,L=300

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

ET176;AT170..4FC..(DX,SE,SV)..CBR

*H,L=300

 1
90999-92003

ET176

長さ=600

 1
90999-92003

ET176;AT170..MTM..(DX,SE,SV)..CBR

長さ=600

 1
90999-92002

ET176

*H,L=300

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

ET176;AT170..4FC..(DX,SE,SV)..CBR

*H,L=300

 1
90999-92003

ET176

長さ=600

 1
90999-92003

ET176;AT170..MTM..(DX,SE,SV)..CBR

長さ=600

 1
90999-92002

ET176

*H,L=300

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

ET176;AT170..4FC..(DX,SE,SV)..CBR

*H,L=300

 1
90999-92003

ET176

長さ=600

 1
90999-92003

ET176;AT170..MTM..(DX,SE,SV)..CBR

長さ=600

 1
90999-92002

ET176

*H,L=300

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

ET176;AT170..4FC..(DX,SE,SV)..CBR

*H,L=300

 1
90999-92003

ET176

長さ=600

 1
90999-92003

ET176;AT170..MTM..(DX,SE,SV)..CBR

長さ=600

 1
90999-92002

ET176

*H,L=300

 1
Common parts
90413-04005
90464-00074
90464-00082
90464-00248
90464-00330
91651-40612
93385-16016
