ET176V-CXMNS (1988)

Toyota Carina Ff

Production May 1988 - Nov 1992
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )ET176,ST170

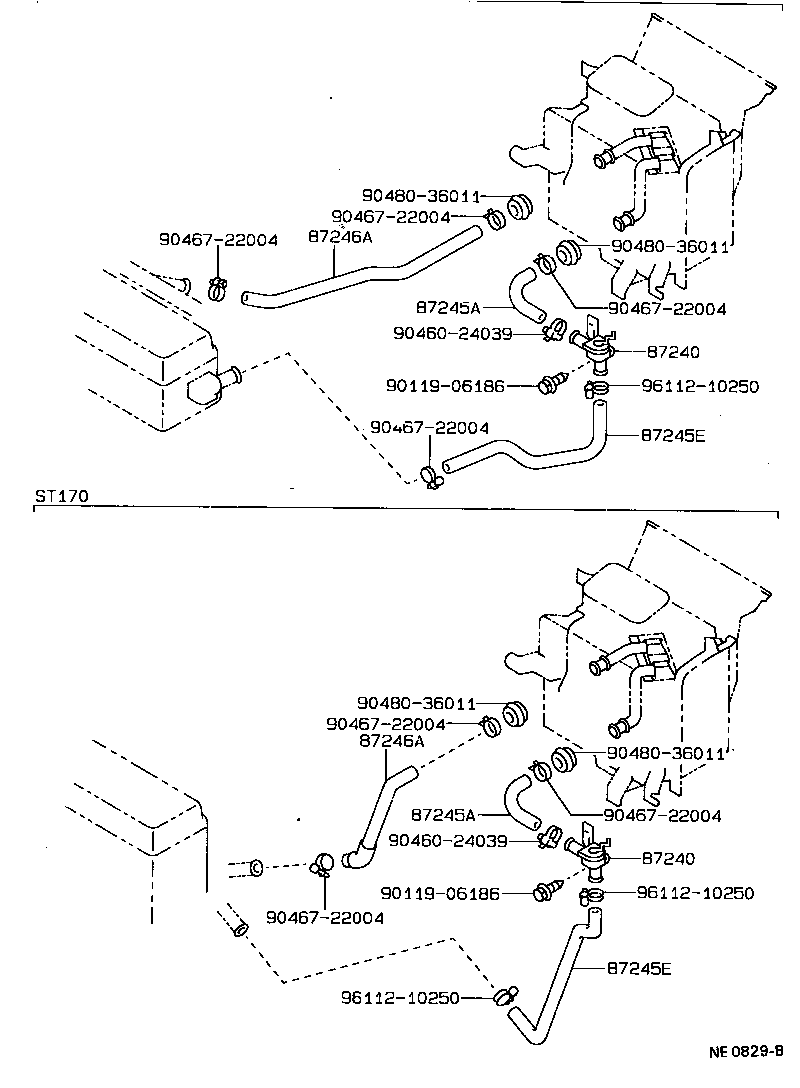

Click highlighted areas on diagram

diagram 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 9011906186 9011906186 9046024039 9046024039 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9048036011 9048036011 9048036011 9048036011 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-20230

AT17#,CT17#,ET176,ST170

 1
87240 - VALVE ASSY, HEATER WATER
87240-20230

AT17#,CT17#,ET176,ST170

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2B220

AT17#,CT17#,ET176,ST170

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2B220

AT17#,CT17#,ET176,ST170

 1
87245E - HOSE, HEATER WATER, INLET E
87245-2B280

ET176

 1
87245E - HOSE, HEATER WATER, INLET E
87245-2B280

ET176

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2B320

ET176

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2B320

ET176

 1
Common parts
90119-06186
90460-24039
90467-22004
90480-36011
96112-10250
