ET176V-CXMNS (1988)

Toyota Carina Ff

Production May 1988 - Nov 1992
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )CT176,ET176

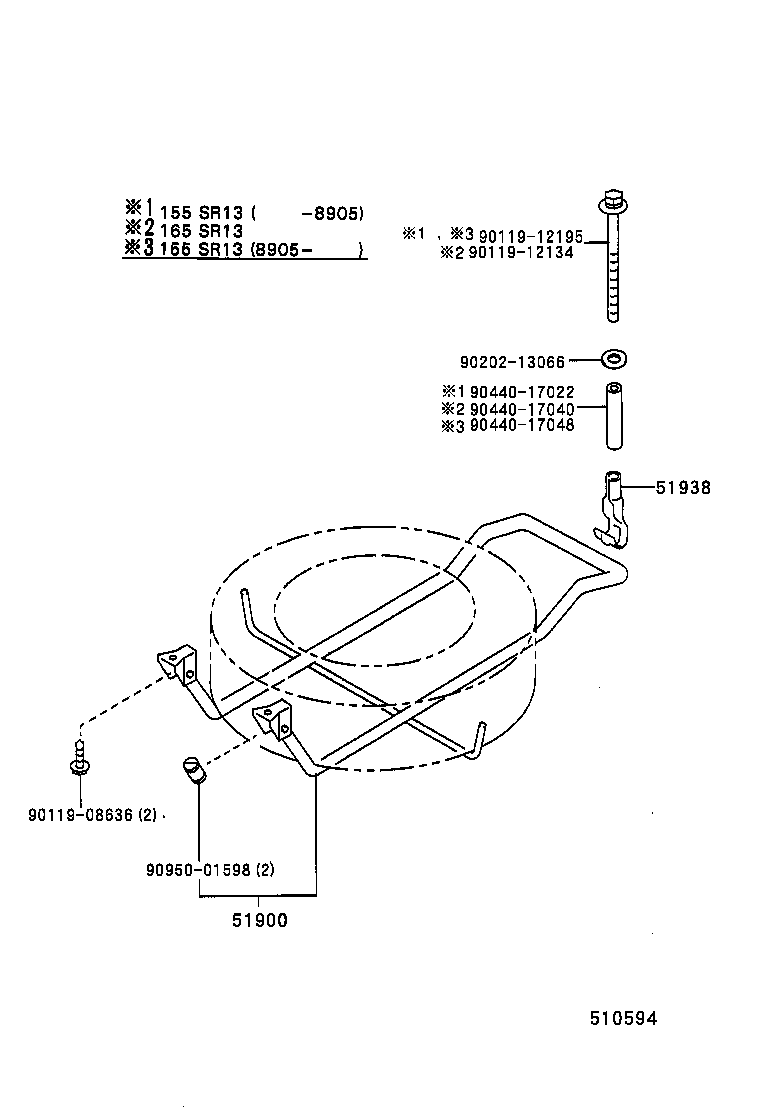

Click highlighted areas on diagram

diagram 51900 51938 9011908636 9011912134 9011912195 9020213066 9044017022 9044017040 9044017048 9095001598
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-95505

CT176,ET176

 1
51900-95503

CT176,ET176

ｱﾘ(165SR13 ﾀｲﾔ)

 1
51938 - LOCK, SPARE WHEEL CARRIER
51938-13030

CT176,ET176

 1
Common parts
90119-08636
90119-12134
90119-12195
90202-13066
90440-17022
90440-17040
90440-17048
90950-01598
