ET176V-CXMNS (1988)
Toyota Carina Ff
Production
May 1988
-
Nov 1992
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8805- )3E

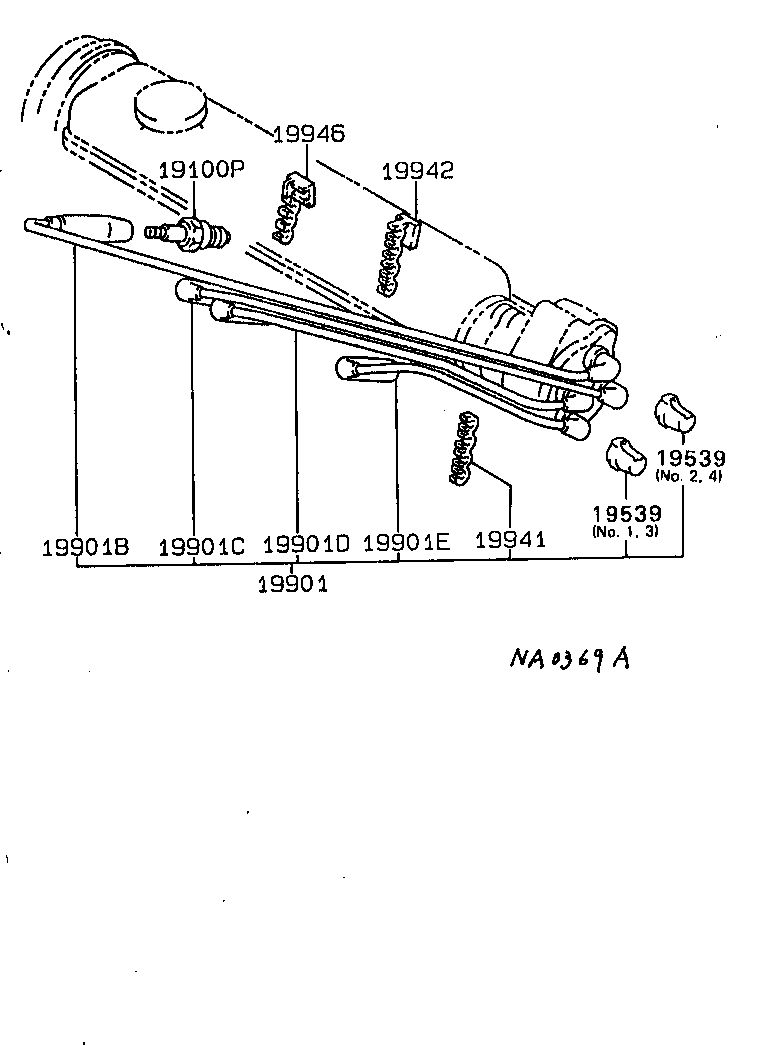

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01094 |
3E..ET176 W16EX−U11 |
4 | ||
| 90919-01091 |
3E..ET176 W16EXR−U11 |
4 | ||
| 90919-01104 |
3E..ET176 BPR5EY11 |
4 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-22251 |
3E..ET176 |
1 | ||
| 90919-22329 |
3E..ET176 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12929 |
3E..ET176 |
1 | ||
| 90919-12929 |
3E..ET176..5F |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12923 |
3E..ET176..5F |
1 | ||
| 90919-12923 |
3E..ET176 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12924 |
3E..ET176 |
1 | ||
| 90919-12924 |
3E..ET176..5F |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12921 |
3E..ET176..5F |
1 | ||
| 90919-12921 |
3E..ET176 |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90464-00490 |
3E..ET176 |
1 | ||
| 90464-00358 |
3E..ET176..5F |
1 | ||
| 90464-00358 |
3E..ET176 |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90464-00372 |
3E..ET176 |
1 | ||
| 90464-00372 |
3E..ET176..5F |
1 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 90464-00404 |
3E..ET176 |
1 | ||
| 90464-00404 |
3E..ET176..5F |
1 | ||
