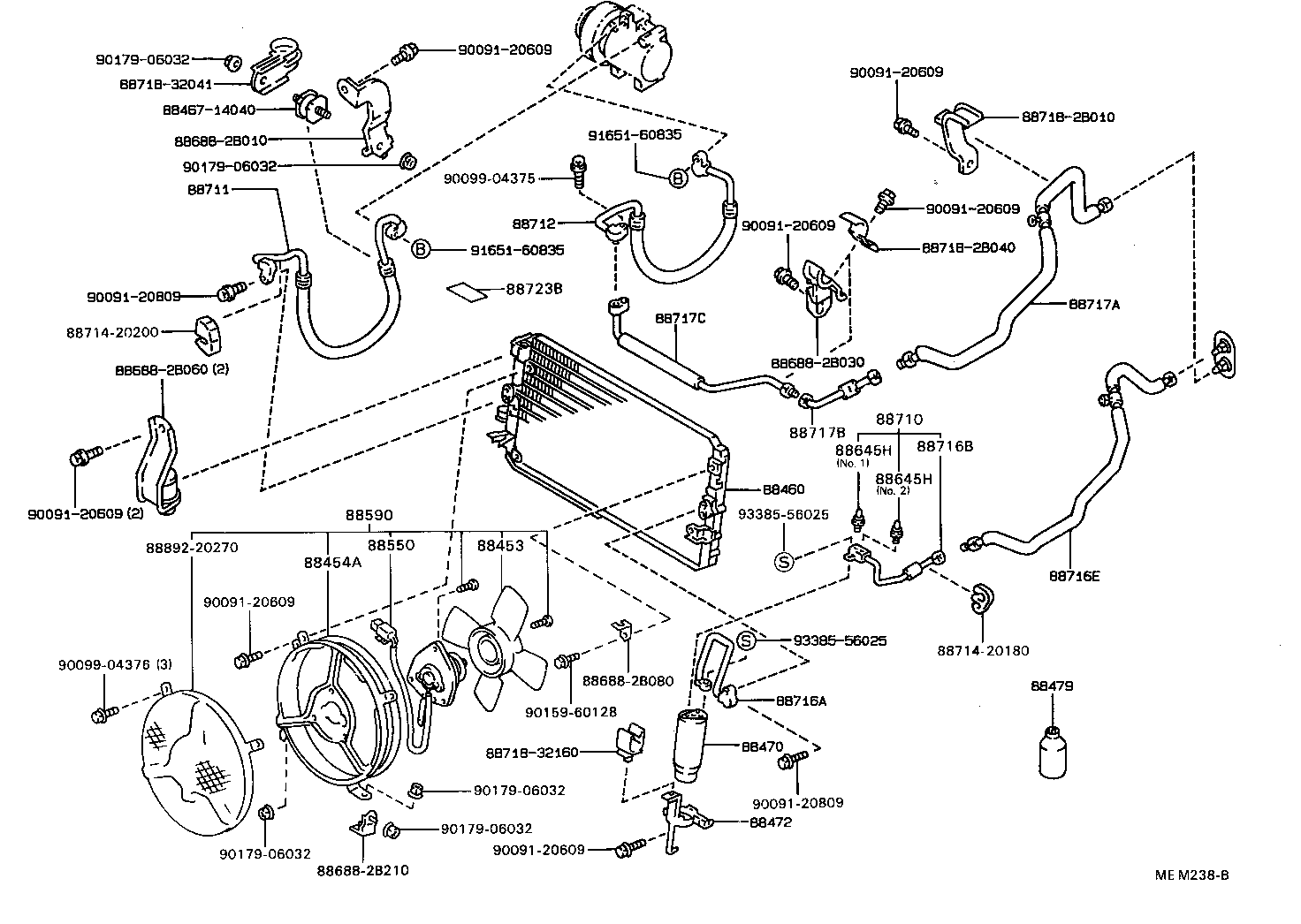

ET176V-CXKRS (1988)
Toyota Carina Ff
(8805- )ET176
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20030 |
AT17#,ET176,ST170..(SED,VAN)..(CBR,EFI) |
1 | ||
| 88453-20030 |
AT175;AT170,171,ET176,ST170..DX,GLIM,SE,SG,STD |
1 | ||
| 88453-20030 |
ET176,ST170 |
1 | ||
| 88453-20030 |
AT170,ET176,ST170..(VAN,WG)..(CBR,CI) |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-20060 |
AT170,ET176,ST170..(VAN,WG)..(CBR,CI) |
1 | ||
| 88454-20060 |
AT17#,ET176,ST170..(SED,VAN)..(CBR,EFI) |
1 | ||
| 88454-20060 |
ET176,ST170 |
1 | ||
| 88454-20060 |
ET176 |
1 | ||
| 88454-20060 |
AT175;AT170,171,ET176,ST170..DX,GLIM,SE,SG,STD |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20280 |
AT175,ET176;AT170,171,ST170..DX,GLIM,SE,SGEXT,SV,SX |
1 | ||
| 88460-20280 |
AT170..SED..EFI;AT170,ST170..(DX,SE,SV,SX)..(CBR,CI);AT171,175,ET176,ST170..(DX,GLIM,SE,SG,SGEXT,STD)..(CBR,EFI) |
1 | ||
| 88460-20280 |
AT175;AT170,171,ET176,ST170..DX,GLIM,SE,SG,STD |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-16040 |
AT175,ET176;AT170,171,ST170..DX,GLIM,SE,SGEXT,SV,SX |
1 | ||
| 88471-16040 |
AT175;AT170,171,ET176,ST170..DX,GLIM,SE,SG,STD |
1 | ||
| 88471-16040 |
AT170..SED..EFI;AT170,ST170..(DX,SE,SV,SX)..(CBR,CI);AT171,175,ET176,ST170..(DX,GLIM,SE,SG,SGEXT,STD)..(CBR,EFI) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-20040 |
AT175,ET176;AT170,171,ST170..DX,GLIM,SE,SGEXT,SV,SX |
1 | ||
| 88473-20040 |
AT170..SED..EFI;AT170,ST170..(DX,SE,SV,SX)..(CBR,CI);AT171,175,ET176,ST170..(DX,GLIM,SE,SG,SGEXT,STD)..(CBR,EFI) |
1 | ||
| 88473-20040 |
AT175;AT170,171,ET176,ST170..DX,GLIM,SE,SG,STD |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
AT175,ET176;AT170,171,ST170..DX,GLIM,SE,SGEXT,SV,SX 400G |
2 | ||
| 90986-02004 |
AT175,ET176;AT170,171,ST170..DX,GLIM,SE,SV,SX 250G |
2 | ||
| 90986-02001 |
AT175,ET176;AT170,171,ST170..DX,GLIM,SE,SV,SX 400G |
2 | ||
| 90986-02004 |
AT175,ET176;AT170,171,ST170..GLIM,SE,SGEXT 250G |
1 | ||
| 90986-02004 |
AT175,ET176;AT170,171,ST170..GLIM,SE 250G |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-20040 |
ET176 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-20180 |
AT175,ET176;AT170,171,ST170..DX,GLIM,SE,SGEXT,SV,SX |
1 | ||
| 88590-20180 |
AT170..SED..EFI;AT170,ST170..(DX,SE,SV,SX)..(CBR,CI);AT171,175,ET176,ST170..(DX,GLIM,SE,SG,SGEXT,STD)..(CBR,EFI) |
1 | ||
| 88590-20180 |
AT175;AT170,171,ET176,ST170..DX,GLIM,SE,SG,STD |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20010 |
AT17#,CT17#,ET176,ST170 NO.1 |
1 | ||
| 88645-30280 |
AT17#,CT17#,ET176,ST170 NO.2 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20010 |
AT17#,CT17#,ET176,ST170 NO.1 |
1 | ||
| 88645-30280 |
AT17#,CT17#,ET176,ST170 NO.2 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88706-20040 |
AT175,ET176;AT170,171,ST170..DX,GLIM,SE,SGEXT,SV,SX |
1 | ||
| 88706-20040 |
AT170..SED..EFI;AT170,ST170..(DX,SE,SV,SX)..(CBR,CI);AT171,175,ET176,ST170..(DX,GLIM,SE,SG,SGEXT,STD)..(CBR,EFI) |
1 | ||
| 88706-20040 |
AT175;AT170,171,ET176,ST170..DX,GLIM,SE,SG,STD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20650 |
ET176 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-20890 |
ET176 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2B720 |
AT175,ET176;AT170,171,ST170..DX,GLIM,SE,SGEXT,SV,SX |
1 | ||
| 88716-2B720 |
AT175;AT170,171,ET176,ST170..DX,GLIM,SE,SG,STD |
1 | ||
| 88716-2B720 |
AT170..SED..EFI;AT170,ST170..(DX,SE,SV,SX)..(CBR,CI);AT171,175,ET176,ST170..(DX,GLIM,SE,SG,SGEXT,STD)..(CBR,EFI) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2B710 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2B440 |
ET176;AT170..(DX,SE,SV)..CBR |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-20730 |
ET176;AT170..(DX,SE,SV)..CBR |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-20830 |
AT175,ET176;AT170,171,ST170..DX,GLIM,SE,SGEXT,SV,SX |
1 | ||
| 88717-20830 |
AT170..SED..EFI;AT170,ST170..(DX,SE,SV,SX)..(CBR,CI);AT171,175,ET176,ST170..(DX,GLIM,SE,SG,SGEXT,STD)..(CBR,EFI) |
1 | ||
| 88717-20830 |
AT175;AT170,171,ET176,ST170..DX,GLIM,SE,SG,STD |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-20820 |
AT175,ET176;AT170,171,ST170..DX,GLIM,SE,SGEXT,SV,SX |
1 | ||
| 88717-20820 |
AT170..SED..EFI;AT170,ST170..(DX,SE,SV,SX)..(CBR,CI);AT171,175,ET176,ST170..(DX,GLIM,SE,SG,SGEXT,STD)..(CBR,EFI) |
1 | ||
| 88717-20820 |
AT175;AT170,171,ET176,ST170..DX,GLIM,SE,SG,STD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12040 |
ET176 |
1 | ||
| 88723-12040 |
AT175,ET176;AT170,171,ST170..GLIM,SE |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88688-2B010 | ||||
| 88688-2B030 | ||||
| 88688-2B060 | ||||
| 88688-2B080 | ||||
| 88688-2B210 | ||||
| 88714-20180 | ||||
| 88714-20200 | ||||
| 88718-2B010 | ||||
| 88718-2B040 | ||||
| 88718-32041 | ||||
| 88718-32160 | ||||
| 88892-20270 | ||||
| 90091-20609 | ||||
| 90091-20809 | ||||
| 90099-04375 | ||||
| 90099-04376 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| 91651-60835 | ||||
| 93385-56025 | ||||
