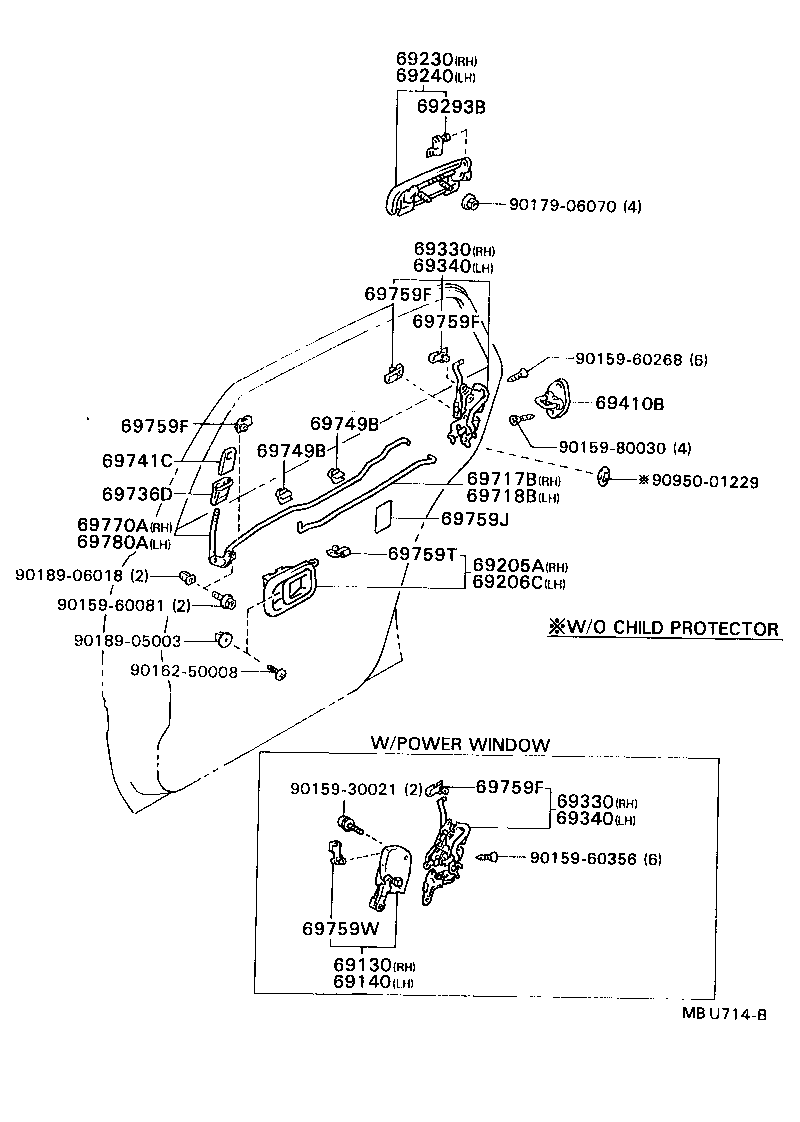

ET176V-CXKRS (1988)
Toyota Carina Ff
(8805-9005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-2004003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-2004003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-20200 |
AT170,CT17#,ET176..DX,STD,SV |
1 | ||
| 69210-20190 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SX |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69220-20190 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SX |
1 | ||
| 69220-20200 |
AT170,CT17#,ET176..DX,STD,SV |
1 | ||
| 69293B - SNAP, REAR DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
AT17#,CT17#,ET176,ST170 右側 |
1 | ||
| 69293-12040 |
AT17#,CT17#,ET176,ST170 左側 |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-21010 |
CT176,ET176 |
1 | ||
| 69330-95R00 |
CT176,ET176 |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-21010 |
CT176,ET176 |
1 | ||
| 69330-95R00 |
CT176,ET176 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-95R00 |
CT176,ET176 |
1 | ||
| 69340-21010 |
CT176,ET176 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-95R00 |
CT176,ET176 |
1 | ||
| 69340-21010 |
CT176,ET176 |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-20080 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-20110 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-20110 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 69741C - KNOB, REAR DOOR LOCK CONTROL | ||||
| 69741-90K0003 |
AT17#,CT17#,ET176,ST170 SHADOW GRAY,TRIM1# |
2 | ||
| 69741-90K0043 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-20030 |
AT17#,CT17#,ET176,ST170 |
4 | ||
| 69749-20030 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 69749-20030 |
AT17#,CT17#,ET176,ST170 OPEN CONTROL LINK |
2 | ||
| 69749-20030 |
AT17#,CT17#,ET176,ST170 LOCKING CONTROL LINK |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-20030 |
AT17#,CT17#,ET176,ST170 |
4 | ||
| 69749-20030 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 69749-20030 |
AT17#,CT17#,ET176,ST170 OPEN CONTROL LINK |
2 | ||
| 69749-20030 |
AT17#,CT17#,ET176,ST170 LOCKING CONTROL LINK |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24090 |
AT17#,CT17#,ET176,ST170 RH,BROWN |
2 | ||
| 69759-24030 |
AT17#,CT17#,ET176,ST170 RH,RED |
1 | ||
| 69759-24080 |
AT17#,CT17#,ET176,ST170 LH,YELLOW |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24090 |
AT17#,CT17#,ET176,ST170 RH,BROWN |
2 | ||
| 69759-24030 |
AT17#,CT17#,ET176,ST170 RH,RED |
1 | ||
| 69759-24080 |
AT17#,CT17#,ET176,ST170 LH,YELLOW |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24090 |
AT17#,CT17#,ET176,ST170 RH,BROWN |
2 | ||
| 69759-24030 |
AT17#,CT17#,ET176,ST170 RH,RED |
1 | ||
| 69759-24080 |
AT17#,CT17#,ET176,ST170 LH,YELLOW |
2 | ||
| 69759J - SILENCER, DOOR LOCK LINK | ||||
| 69759-30021 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 69759T - SNAP, REAR DOOR INSIDE HANDLE | ||||
| 69759-14050 |
AT17#,CT17#,ET176,ST170 左側 |
1 | ||
| 69759-24070 |
AT17#,CT17#,ET176,ST170 右側 |
1 | ||
| 69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-20080 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69780-20080 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90159-60268 | ||||
| 90159-80030 | ||||
| 90162-50008 | ||||
| 90179-06070 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| 90386-06021 | ||||
| 90950-01229 | ||||
| 91651-40612 | ||||
| 93311-16012 | ||||
| Linked diagrams | ||||
| 8511 | ||||
(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-2004003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-2004003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-20200 |
AT170,CT17#,ET176..DX,STD,SV |
1 | ||
| 69210-20190 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SX |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69220-20190 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SX |
1 | ||
| 69220-20200 |
AT170,CT17#,ET176..DX,STD,SV |
1 | ||
| 69293B - SNAP, REAR DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
AT17#,CT17#,ET176,ST170 右側 |
1 | ||
| 69293-12040 |
AT17#,CT17#,ET176,ST170 左側 |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-21010 |
CT176,ET176 |
1 | ||
| 69330-95R00 |
CT176,ET176 |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-21010 |
CT176,ET176 |
1 | ||
| 69330-95R00 |
CT176,ET176 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-95R00 |
CT176,ET176 |
1 | ||
| 69340-21010 |
CT176,ET176 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-95R00 |
CT176,ET176 |
1 | ||
| 69340-21010 |
CT176,ET176 |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-20080 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-20110 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-20110 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 69741C - KNOB, REAR DOOR LOCK CONTROL | ||||
| 69741-90K0003 |
AT17#,CT17#,ET176,ST170 SHADOW GRAY,TRIM1# |
2 | ||
| 69741-90K0043 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-20030 |
AT17#,CT17#,ET176,ST170 |
4 | ||
| 69749-20030 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 69749-20030 |
AT17#,CT17#,ET176,ST170 OPEN CONTROL LINK |
2 | ||
| 69749-20030 |
AT17#,CT17#,ET176,ST170 LOCKING CONTROL LINK |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-20030 |
AT17#,CT17#,ET176,ST170 |
4 | ||
| 69749-20030 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 69749-20030 |
AT17#,CT17#,ET176,ST170 OPEN CONTROL LINK |
2 | ||
| 69749-20030 |
AT17#,CT17#,ET176,ST170 LOCKING CONTROL LINK |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24090 |
AT17#,CT17#,ET176,ST170 RH,BROWN |
2 | ||
| 69759-24030 |
AT17#,CT17#,ET176,ST170 RH,RED |
1 | ||
| 69759-24080 |
AT17#,CT17#,ET176,ST170 LH,YELLOW |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24090 |
AT17#,CT17#,ET176,ST170 RH,BROWN |
2 | ||
| 69759-24030 |
AT17#,CT17#,ET176,ST170 RH,RED |
1 | ||
| 69759-24080 |
AT17#,CT17#,ET176,ST170 LH,YELLOW |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24090 |
AT17#,CT17#,ET176,ST170 RH,BROWN |
2 | ||
| 69759-24030 |
AT17#,CT17#,ET176,ST170 RH,RED |
1 | ||
| 69759-24080 |
AT17#,CT17#,ET176,ST170 LH,YELLOW |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24090 |
AT17#,CT17#,ET176,ST170 RH,BROWN |
2 | ||
| 69759-24030 |
AT17#,CT17#,ET176,ST170 RH,RED |
1 | ||
| 69759-24080 |
AT17#,CT17#,ET176,ST170 LH,YELLOW |
2 | ||
| 69759J - SILENCER, DOOR LOCK LINK | ||||
| 69759-30021 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 69759T - SNAP, REAR DOOR INSIDE HANDLE | ||||
| 69759-14050 |
AT17#,CT17#,ET176,ST170 左側 |
1 | ||
| 69759-24070 |
AT17#,CT17#,ET176,ST170 右側 |
1 | ||
| 69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-20080 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69780-20080 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| Common parts | ||||
| 90159-30021 | ||||
| 90159-60081 | ||||
| 90159-60268 | ||||
| 90159-60356 | ||||
| 90159-80030 | ||||
| 90162-50008 | ||||
| 90179-06070 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| 90950-01229 | ||||
