ET176V-CXKNS (1988)

Toyota Carina Ff

Production May 1988 - Nov 1992
Engine 3E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

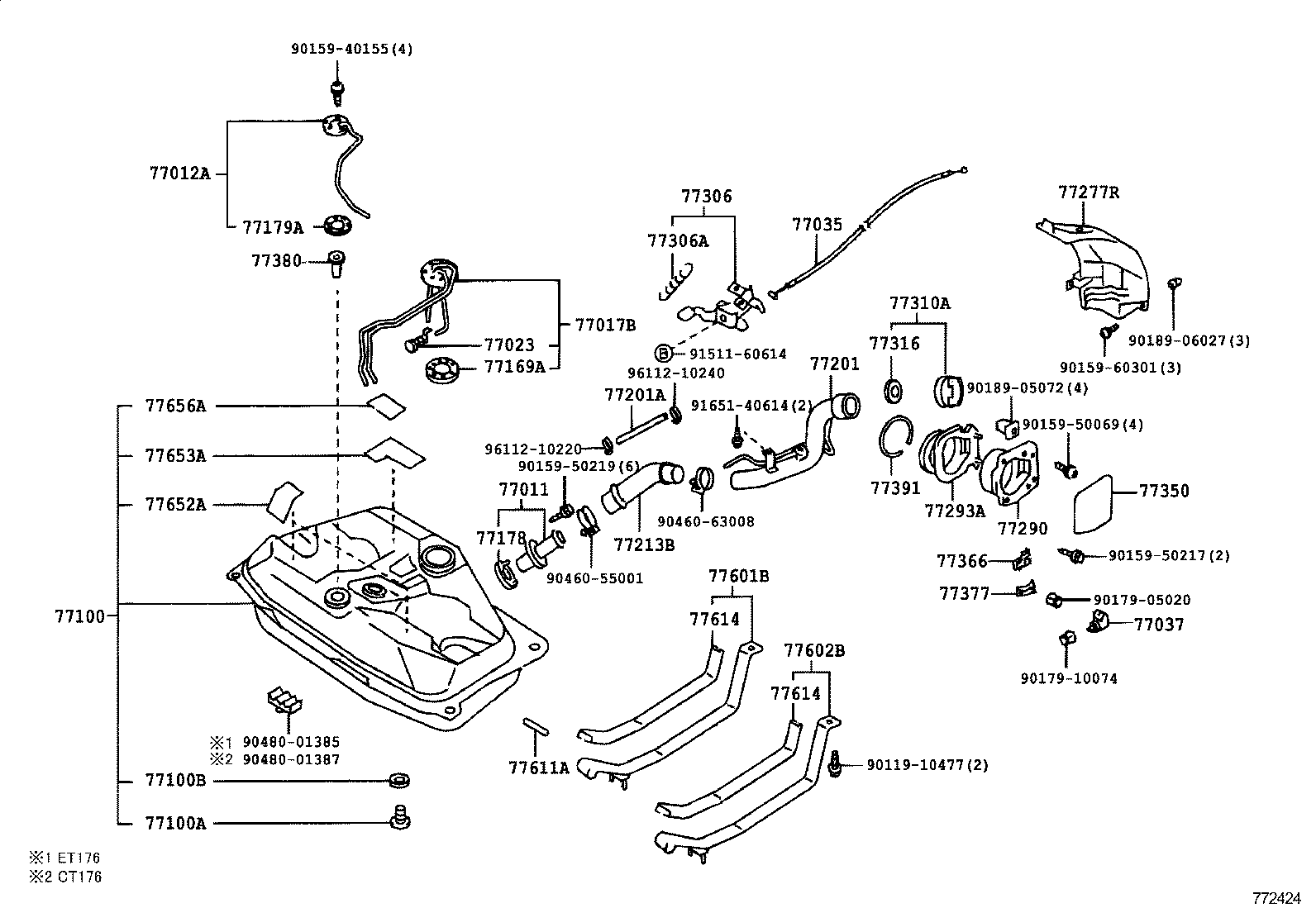

ILLUST NO. 1 OF 2(8805- )CT176,ET176

Click highlighted areas on diagram

diagram 77011 77012A 77017B 77023 77035 77037 77100 77100A 77100B 77169A 77178 77179A 77201 77201A 77213B 77277R 77290 77293A 77306 77306A 77310A 77316 77350 77366 77377 77380 77391 77601B 77602B 77611A 77614 77614 77652A 77653A 77656A 9011910477 9015940155 9015950069 9015950217 9015950219 9015960301 9017905020 9017910074 9018905072 9018906027 9046055001 9046063008 9048001385 9048001387 9151160614 9165140614 9611210220 9611210240
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-13020

CT176,ET176

 1
77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77012-12030

CT176,ET176

 1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-95501

ET176

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-14030

ET176

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-95505

CT176,ET176..SG;AT170,CT170,ST170..DX,SV,SX

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-20040

CT176,ET176..SG;AT17#,CT170,ST170

 1
77100 - TANK ASSY, FUEL
77001-21900

ET176

 1
77100A - PLUG(FOR FUEL TANK)
90341-20004

ET176

 1
90341-20004

ET176

 1
90341-20004

ST170..SGEXT,SX;AT170,171,ET176..DX,S,SE,SG,STD,SV

 1
77100B - GASKET(FOR FUEL TANK)
90430-20007

ST170..SGEXT,SX;AT170,171,ET176..DX,S,SE,SG,STD,SV

 1
90430-20007

ET176

 1
90430-20007

ET176

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-12020

CT176,ET176

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-12010

CT176,ET176

 1
77178-20010

AT170,171,CT17#,ET176,ST170

 1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-16010

CT176,ET176

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-95502

CT176,ET176

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77259-13030

CT176,ET176

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-13060

CT176,ET176

 1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-95500

CT176,ET176

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-20090

CT176,ET176..SG;AT17#,CT170,ST170

 1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-20031

CT176,ET176..SG;AT17#,CT170,ST170

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-14010

CT176,ET176..SG;AT170,CT170,ST170..DX,SV,SX

 1
77306A - SPRING, FUEL LID OPEN LEVER
90506-09004

CT176,ET176..SG;AT170,CT170,ST170..DX,SV,SX

 1
77310A - CAP ASSY, FUEL TANK
77310-12100

AT17#,ET176,ST170

 1
77316 - GASKET, FUEL TANK CAP
77316-12050

AT17#,CT17#,ET176,ST170

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-20140

CT176,ET176..SG;AT17#,CT170,ST170

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-20030

AT17#,CT17#,ET176,ST170

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20040

CT176,ET176..SG;AT17#,CT170,ST170

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-14020

AT175,CT176,ET176

 1
77391 - RING, FUEL INLET BOX
77391-16011

AT17#,CT17#,ET176,ST170

 1
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-95500

CT176,ET176

 1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-95500

CT176,ET176

 1
77611A - PIN (FOR FUEL TANK BAND)
90250-08019

CT176,ET176

 2
77614 - SEAT, FUEL TANK BAND
77681-12010

CT176,ET176

 2
77614 - SEAT, FUEL TANK BAND
77681-12010

CT176,ET176

 2
77652A - CUSHION, FUEL TANK, NO.2
77652-16060

CT176,ET176

 2
77653A - CUSHION, FUEL TANK, NO.3
77653-12090

CT176,ET176

 1
77656A - CUSHION, FUEL TANK, NO.4
77654-12060

CT176,ET176

 2
Common parts
90119-10477
90159-40155
90159-50069
90159-50217
90159-50219
90159-60301
90179-05020
90179-10074
90189-05072
90189-06027
90460-55001
90460-63008
90480-01385
90480-01387
91511-60614
91651-40614
96112-10220
96112-10240

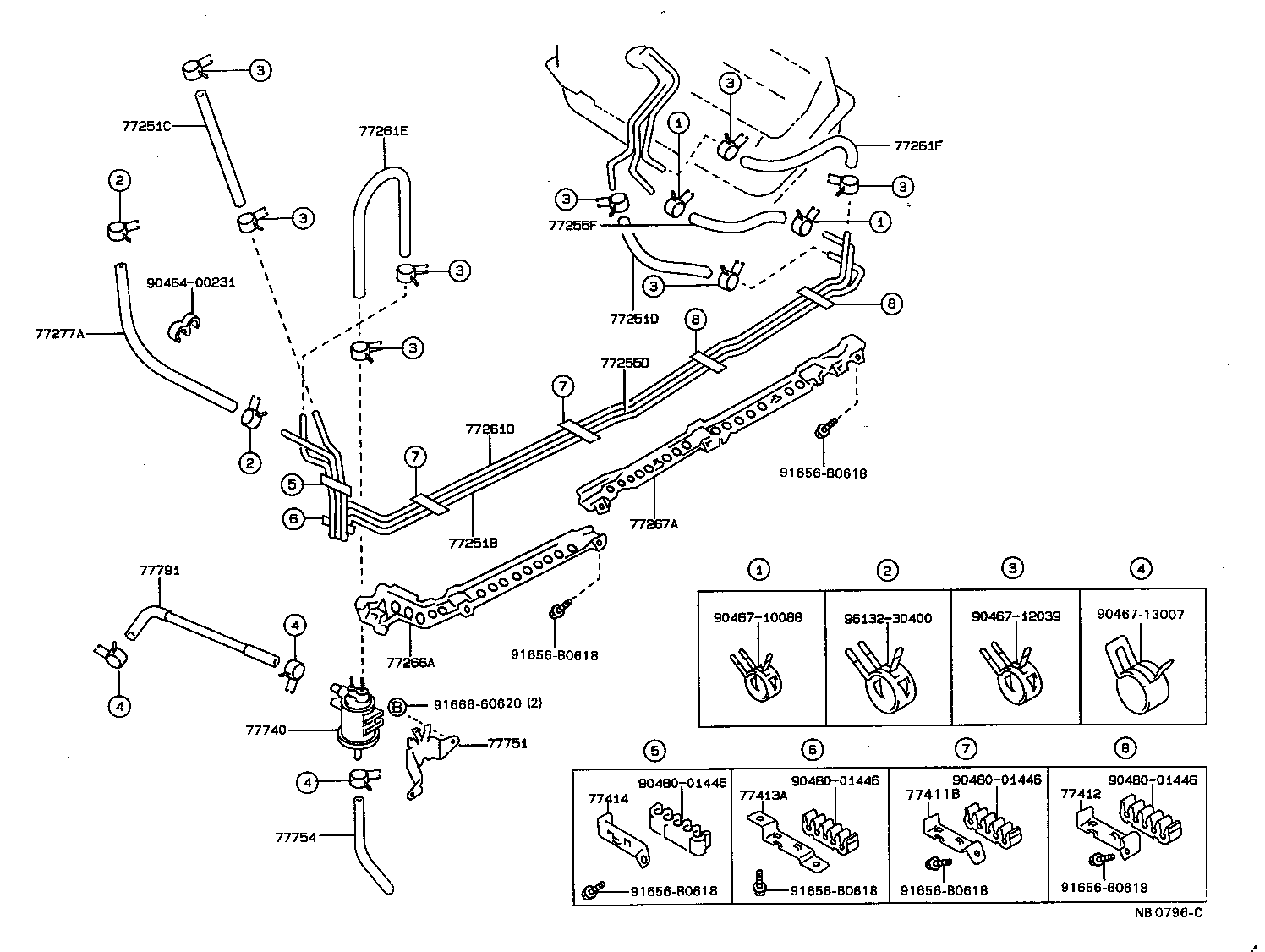

ILLUST NO. 2 OF 2(8805- )ET176

Click highlighted areas on diagram

diagram 77251B 77251C 77251D 77255D 77255F 77261D 77261E 77261F 77266A 77267A 77277A 77411B 77412 77413A 77414 77740 77751 77754 77791 9046400231 9046710088 9046712039 9046713007 9048001446 9048001446 9048001446 9048001446 91656B0618 91656B0618 91656B0618 91656B0618 91656B0618 91656B0618 9166660620 9613230400
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-95503

ET176

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95333-06020

ET176

*H,L=200

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-06020

ET176

*H,L=200

 1
77255D - TUBE, FUEL RETURN
77255-95509

ET176

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-04020

ET176

長さ=200

 1
95334-04013

ET176

長さ=130

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-95502

CT176,ET176

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030

ST170;AT170,ET176..CBR

*H,L=300

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

CT176,ET176

*H,L=200

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-20090

AT170,171,CT17#,ET176,ST170

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-20080

CT176,ET176

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-04046

ET176

*H,L=460

 1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-20010

CT176,ET176

 2
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-20010

AT170,171,CT17#,ET176,ST170

 2
77413A - SUPPORT, FUEL TUBE GROMMET, NO.3
77413-20010

AT170,171,CT17#,ET176,ST170

 1
77414 - SUPPORT, FUEL TUBE GROMMET, NO.4
77414-20010

AT170,171,CT17#,ET176,ST170

 1
77740 - CANISTER ASSY, CHARCOAL
77704-20250

ET176

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-20190

AT170,ET176..CBR

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
95333-08030

ET176

*H,L=300

 1
77791 - HOSE, OUTER VENT VALVE TO CARBURETOR
77791-12100

ET176

 1
77791-20030

ET176

 1
77791-20020

ET176

 1
Common parts
90464-00231
90467-10088
90467-12039
90467-13007
90480-01446
91656-B0618
91666-60620
96132-30400
