ET176V-CXKNS (1988)
Toyota Carina Ff
Production
May 1988
-
Nov 1992
Engine
3E
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8805- )ET176

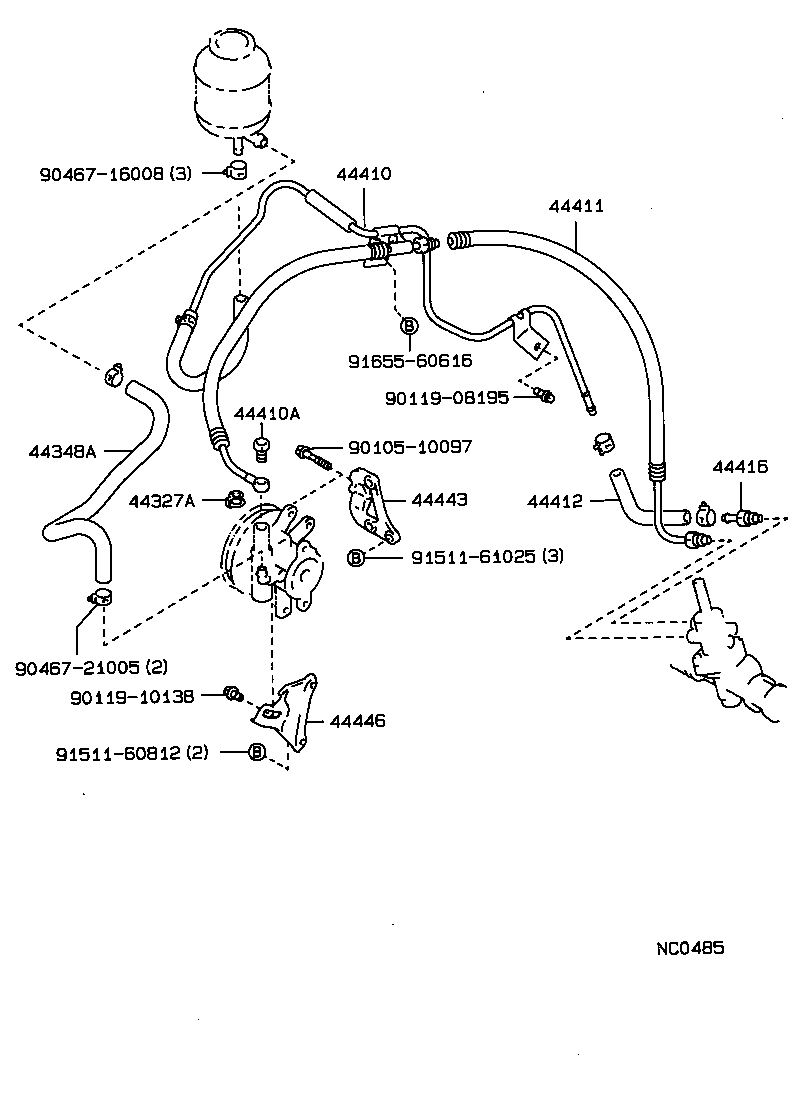

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44327-12010 |
CT170..SED;AT17#,ET176,ST170;CT17#..(VAN,WG)..5F |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-20190 |
ET176 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-20451 |
ET176 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
AT17#,CT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX |
1 | ||
| 90401-16008 |
CT170..SED;CT17#..(VAN,WG)..5F;AT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-20260 |
ET176 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-20180 |
ET176 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-20110 |
CT17#..(VAN,WG)..5F;AT171,CT170,ET176,ST170..DX,GLIM,SE,SG,SGEXT,STD,SX |
1 | ||
| 44416-20110 |
AT171,CT17#,ET176,ST170..DX,GLIM,SE,SG,SGEXT,STD,SX |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-13010 |
ET176 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-12050 |
ET176 |
1 | ||
| Common parts | ||||
| 90105-10097 | ||||
| 90119-08195 | ||||
| 90119-10138 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91511-60812 | ||||
| 91511-61025 | ||||
| 91655-60616 | ||||
