ET176V-CXKDS (1988)
Toyota Carina Ff
ILLUST NO. 5 OF 6(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-22300 | ||||
ILLUST NO. 2 OF 6(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2B700 |
ET176 |
1 | ||
| 82111-2B701 |
ET176 |
1 | ||
| 82111-2D810 |
ET176 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-2G760 |
ET176 |
1 | ||
| 82131-2G762 |
ET176 |
1 | ||
| 82131-2H880 |
ET176 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
CT170..SG;AT170,CT176,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
AT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX NO.2 |
1 | ||
| 82345-20060 |
AT170,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
ET176 NO.2 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-2B630 |
AT17#,CT17#,ET176,ST170 左側 |
1 | ||
| 82817-2B620 |
AT17#,CT17#,ET176,ST170 右側 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-2B630 |
AT17#,CT17#,ET176,ST170 左側 |
1 | ||
| 82817-2B620 |
AT17#,CT17#,ET176,ST170 右側 |
1 | ||
| Common parts | ||||
| 82824-20020 | ||||
| 90119-06005 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 8401 | ||||

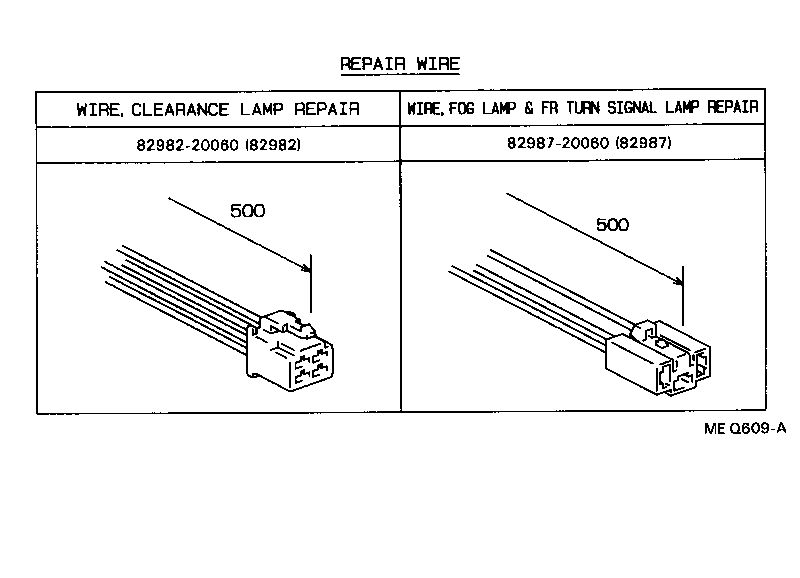

ILLUST NO. 6 OF 6(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20060 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82982-20030 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-14010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82987-20060 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| Common parts | ||||
| 82982-20060 | ||||
| 82987-20060 | ||||

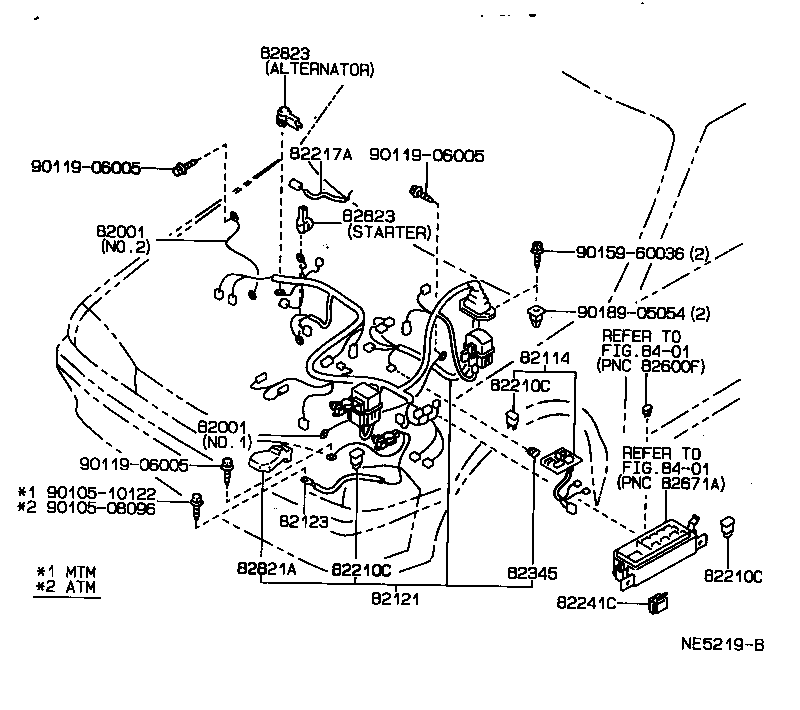

ILLUST NO. 1 OF 6(8805- )S ; (8808- )AT175
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
AT17#,ET176,ST170 NO.1 |
1 | ||
| 90980-07303 |
ET176 NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
AT17#,ET176,ST170 NO.1 |
1 | ||
| 90980-07303 |
ET176 NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
AT17#,ET176,ST170 NO.1 |
1 | ||
| 90980-07303 |
ET176 NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
AT17#,ET176,ST170 NO.1 |
1 | ||
| 90980-07303 |
ET176 NO.2 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-20030 |
ET176 |
1 | ||
| 82114-20030 |
AT170,ET176 J/B NO.5 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-20030 |
ET176 |
1 | ||
| 82114-20030 |
AT170,ET176 J/B NO.5 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-2D330 |
ET176..MTM |
1 | ||
| 82121-2G100 |
ET176..MTM |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-20130 |
AT17#,ET176,ST170 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
AT17#,CT17#,ET176,ST170 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08203 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒,YAZAKI |
1 | ||
| 90982-08188 |
AT17#,CT17#,ET176,ST170 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08203 |
ST170..5F;AT17#,ET176;ST170..4FC..CI 80A,ｵｽ端子,黒 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
AT17#,CT17#,ET176,ST170 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08203 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒,YAZAKI |
1 | ||
| 90982-08188 |
AT17#,CT17#,ET176,ST170 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08203 |
ST170..5F;AT17#,ET176;ST170..4FC..CI 80A,ｵｽ端子,黒 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
AT17#,CT17#,ET176,ST170 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08203 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒,YAZAKI |
1 | ||
| 90982-08188 |
AT17#,CT17#,ET176,ST170 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08203 |
ST170..5F;AT17#,ET176;ST170..4FC..CI 80A,ｵｽ端子,黒 |
1 | ||
| 82217A - WIRE, FRONT WINDOW DEFOGGER | ||||
| 82217-20010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-32020 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
CT170..SG;AT170,CT176,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
AT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX NO.2 |
1 | ||
| 82345-20060 |
AT170,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
ET176 NO.2 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-32030 |
AT170,ET176..CBR;AT170..(DX,SG,SV)..EFI;AT170..MTM..(SE,SGEXT)..EFI |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
AT17#,ET176..DX,S,SE,SG,SGEXT,STD,SV STARTER |
1 | ||
| 82823-22050 |
AT17#,ET176..DX,S,SE,SG,SGEXT,STD,SV ALTERNATOR |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
AT17#,ET176..DX,S,SE,SG,SGEXT,STD,SV STARTER |
1 | ||
| 82823-22050 |
AT17#,ET176..DX,S,SE,SG,SGEXT,STD,SV ALTERNATOR |
1 | ||
| Common parts | ||||
| 90105-06028 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90159-60036 | ||||
| 90179-06009 | ||||
| 90179-06158 | ||||
| 90189-05054 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 6(8805- )ET176
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
AT17#,ET176,ST170 NO.1 |
1 | ||
| 90980-07303 |
ET176 NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
AT17#,ET176,ST170 NO.1 |
1 | ||
| 90980-07303 |
ET176 NO.2 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-20030 |
ET176 |
1 | ||
| 82114-20030 |
AT170,ET176 J/B NO.5 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-2D330 |
ET176..MTM |
1 | ||
| 82121-2G100 |
ET176..MTM |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-20130 |
AT17#,ET176,ST170 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
AT17#,CT17#,ET176,ST170 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08203 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒,YAZAKI |
1 | ||
| 90982-08188 |
AT17#,CT17#,ET176,ST170 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08203 |
ST170..5F;AT17#,ET176;ST170..4FC..CI 80A,ｵｽ端子,黒 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
AT17#,CT17#,ET176,ST170 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08203 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒,YAZAKI |
1 | ||
| 90982-08188 |
AT17#,CT17#,ET176,ST170 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08203 |
ST170..5F;AT17#,ET176;ST170..4FC..CI 80A,ｵｽ端子,黒 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
AT17#,CT17#,ET176,ST170 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08203 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒,YAZAKI |
1 | ||
| 90982-08188 |
AT17#,CT17#,ET176,ST170 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08203 |
ST170..5F;AT17#,ET176;ST170..4FC..CI 80A,ｵｽ端子,黒 |
1 | ||
| 82217A - WIRE, FRONT WINDOW DEFOGGER | ||||
| 82217-20010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-32020 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
CT170..SG;AT170,CT176,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
AT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX NO.2 |
1 | ||
| 82345-20060 |
AT170,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
ET176 NO.2 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-32030 |
AT170,ET176..CBR;AT170..(DX,SG,SV)..EFI;AT170..MTM..(SE,SGEXT)..EFI |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
AT17#,ET176..DX,S,SE,SG,SGEXT,STD,SV STARTER |
1 | ||
| 82823-22050 |
AT17#,ET176..DX,S,SE,SG,SGEXT,STD,SV ALTERNATOR |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
AT17#,ET176..DX,S,SE,SG,SGEXT,STD,SV STARTER |
1 | ||
| 82823-22050 |
AT17#,ET176..DX,S,SE,SG,SGEXT,STD,SV ALTERNATOR |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90119-06006 | ||||
| 90159-60036 | ||||
| 90189-05054 | ||||
| Linked diagrams | ||||
| 8401 | ||||

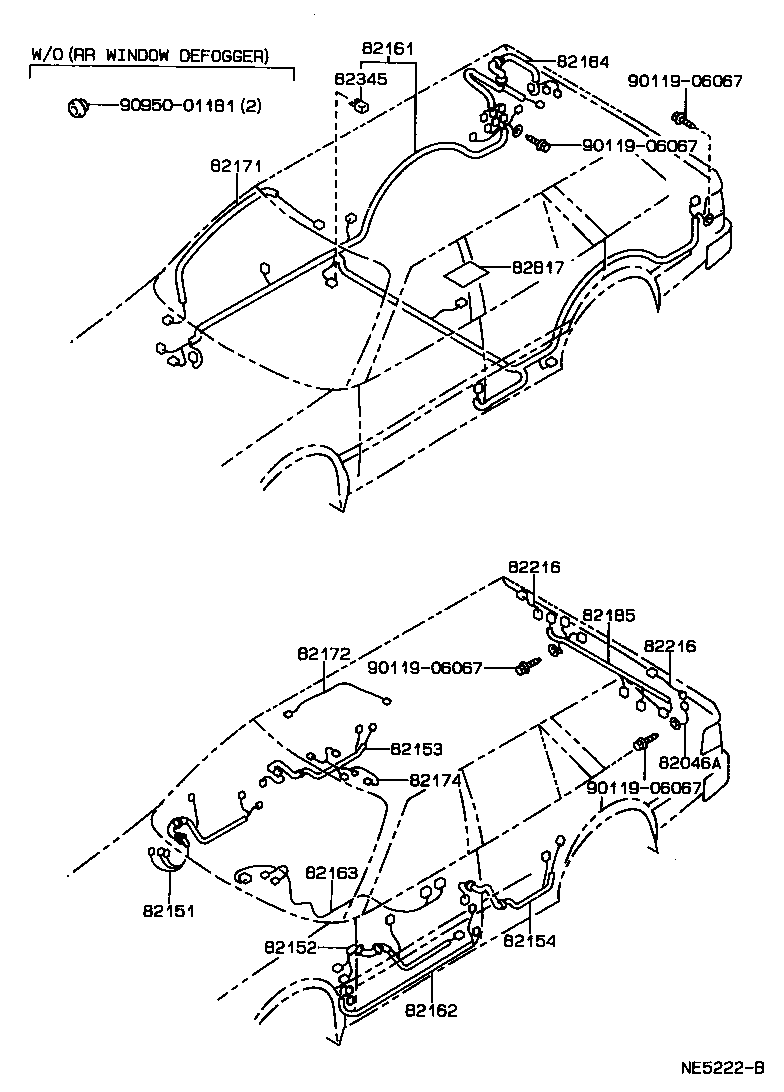

ILLUST NO. 3 OF 6(8805- )VAN,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-91255 |
AT170,CT17#,ET176,ST170..VAN,WG |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-20861 |
AT171,CT17#,ET176,ST170..S,SG,SGEXT,SX |
1 | ||
| 82151-20860 |
AT171,CT17#,ET176,ST170..S,SG,SGEXT,SX |
1 | ||
| 82151-2B710 |
AT171,CT17#,ET176,ST170..S,SG,SX |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-20860 |
AT171,CT17#,ET176,ST170..S,SG,SGEXT,SX |
1 | ||
| 82151-20861 |
AT171,CT17#,ET176,ST170..S,SG,SGEXT,SX |
1 | ||
| 82151-2B710 |
AT171,CT17#,ET176,ST170..S,SG,SX |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-95526 |
CT176,ET176..DX,STD ｱﾘ(*RW) |
1 | ||
| 82161-95510 |
CT176,ET176..DX,STD |
1 | ||
| 82161-2G710 |
CT176,ET176..DX,STD ｱﾘ(*RW) |
1 | ||
| 82161-2G700 |
CT176,ET176..DX,STD |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20490 |
AT170,175,CT17#,ET176,ST170..DX,SG,STD,SV,SX |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-95501 |
CT176,ET176..DX,STD |
1 | ||
| 82184-95505 |
CT176,ET176..DX,STD ｱﾘ(*RW) |
1 | ||
| 82184-95500 |
CT176,ET176..DX,STD ｱﾘ(*RW) |
1 | ||
| 82184-95500 |
CT176,ET176..DX,STD ｱﾘ(*RW) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-95503 |
CT176,ET176..DX,STD ｱﾘ(*RW) |
1 | ||
| 82185-95500 |
CT176,ET176..DX,STD |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-95502 |
AT170,CT17#,ET176,ST170..VAN,WG |
2 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-95502 |
AT170,CT17#,ET176,ST170..VAN,WG |
2 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
CT170..SG;AT170,CT176,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
AT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX NO.2 |
1 | ||
| 82345-20060 |
AT170,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
ET176 NO.2 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-20160 |
AT170,CT17#,ET176,ST170..VAN,WG |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90950-01181 | ||||
ILLUST NO. 4 OF 6(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-20060 |
CT170..SG;AT170,CT176,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
AT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX NO.2 |
1 | ||
| 82345-20060 |
AT170,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
ET176 NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
CT170..SG;AT170,CT176,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
AT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX NO.2 |
1 | ||
| 82345-20060 |
AT170,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
ET176 NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
CT170..SG;AT170,CT176,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
AT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX NO.2 |
1 | ||
| 82345-20060 |
AT170,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
ET176 NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
CT170..SG;AT170,CT176,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
AT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX NO.2 |
1 | ||
| 82345-20060 |
AT170,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
ET176 NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
CT170..SG;AT170,CT176,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
AT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX NO.2 |
1 | ||
| 82345-20060 |
AT170,ET176,ST170..VAN,WG NO.4 |
2 | ||
| 82345-20040 |
ET176 NO.2 |
1 | ||
| Common parts | ||||
| 82345-12010 | ||||
| 82345-20040 | ||||
| 82345-20050 | ||||
| 82345-20060 | ||||
| 82345-32010 | ||||
ILLUST NO. 5 OF 6(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14110 | ||||
| 82711-16450 | ||||
| 82711-16460 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-1A400 | ||||
| 82711-1A410 | ||||
| 82711-1A420 | ||||
| 82711-1A430 | ||||
| 82711-1A450 | ||||
| 82711-1A500 | ||||
| 82711-20330 | ||||
| 82711-20460 | ||||
| 82711-20620 | ||||
| 82711-20720 | ||||
ILLUST NO. 5 OF 6(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-22220 | ||||
| 82711-22270 | ||||
| 82711-24070 | ||||
| 82711-2B210 | ||||
| 82711-30130 | ||||
| 82711-30380 | ||||
| 82711-30660 | ||||
| 82711-32511 | ||||
| 82711-32620 | ||||
| 82711-32660 | ||||
| 82711-3H090 | ||||
| 82715-12010 | ||||
| 82715-12020 | ||||
| 85373-20010 | ||||
| 85373-32010 | ||||
| 90461-08066 | ||||
ILLUST NO. 6 OF 6(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-24010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20060 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82982-20030 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-14010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82987-20060 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20070 |
AT17#,CT17#,ET176,ST170 ENGINE=E,5A |
1 | ||
| 82991-20030 |
AT17#,CT17#,ET176,ST170 ENGINE=S,C,4A |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20070 |
AT17#,CT17#,ET176,ST170 ENGINE=E,5A |
1 | ||
| 82991-20030 |
AT17#,CT17#,ET176,ST170 ENGINE=S,C,4A |
1 | ||
| Common parts | ||||
| 82981-24010 | ||||
| 82982-20030 | ||||
| 82984-20010 | ||||
| 82987-14010 | ||||
| 82991-20030 | ||||
| 82991-20070 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
