ET176V-CXKDS (1988)

Toyota Carina Ff

Production May 1988 - Nov 1992
Engine 3E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8805- )AT170,171,CT17#,ET176,ST170

Click highlighted areas on diagram

diagram 51206A 51249 51284 51284 9011910504 91656A1022
Part # Description Qty Price
Common parts
90119-10504
91656-A1022

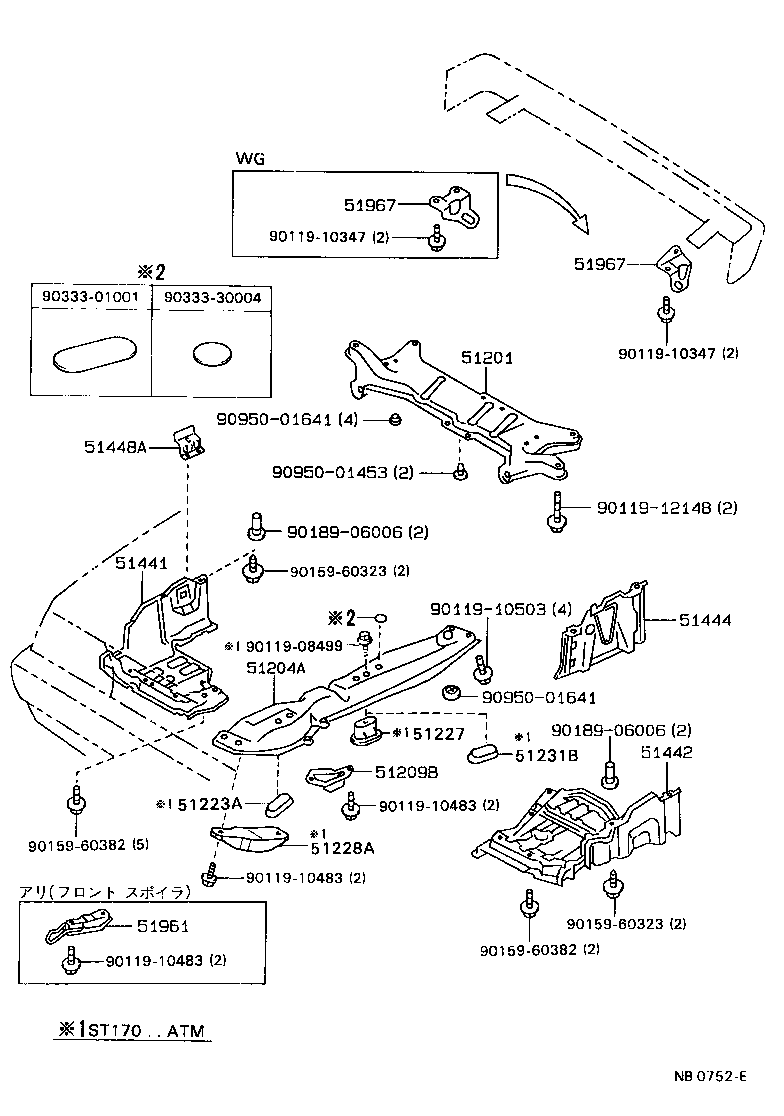

ILLUST NO. 1 OF 2(8805- )AT170,171,CT17#,ET176,ST170

Click highlighted areas on diagram

diagram 51201 51204A 51209B 51223A 51227 51228A 51231B 51441 51442 51444 51448A 51961 51967 51967 9011908499 9011910347 9011910347 9011910483 9011910483 9011910483 9011910503 9011912148 9015960323 9015960323 9015960382 9015960382 9018906006 9018906006 9033301001 9033330004 9095001453 9095001641 9095001641
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-20210

AT170,171,CT17#,ET176,ST170

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-20070

AT170,171,CT17#,ET176,ST170

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-20020

ST170..5F..CI;AT17#,CT17#,ET176,ST170..CBR,DSL,EFI,EFIS

 2
51441 - COVER, ENGINE UNDER, NO.1
51441-20150

AT170,171,CT17#,ET176,ST170

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-20090

AT170,171,CT17#,ET176,ST170..MTM

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20030

AT17#,CT17#,ET176,ST170

 1
Common parts
90119-08499
90119-10347
90119-10483
90119-10503
90119-12148
90159-60323
90159-60382
90189-06006
90333-01001
90333-30004
90950-01453
90950-01641
