ET176V-CXHNS (1988)

Toyota Carina Ff

Production May 1988 - Nov 1992
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )CT176,ET176

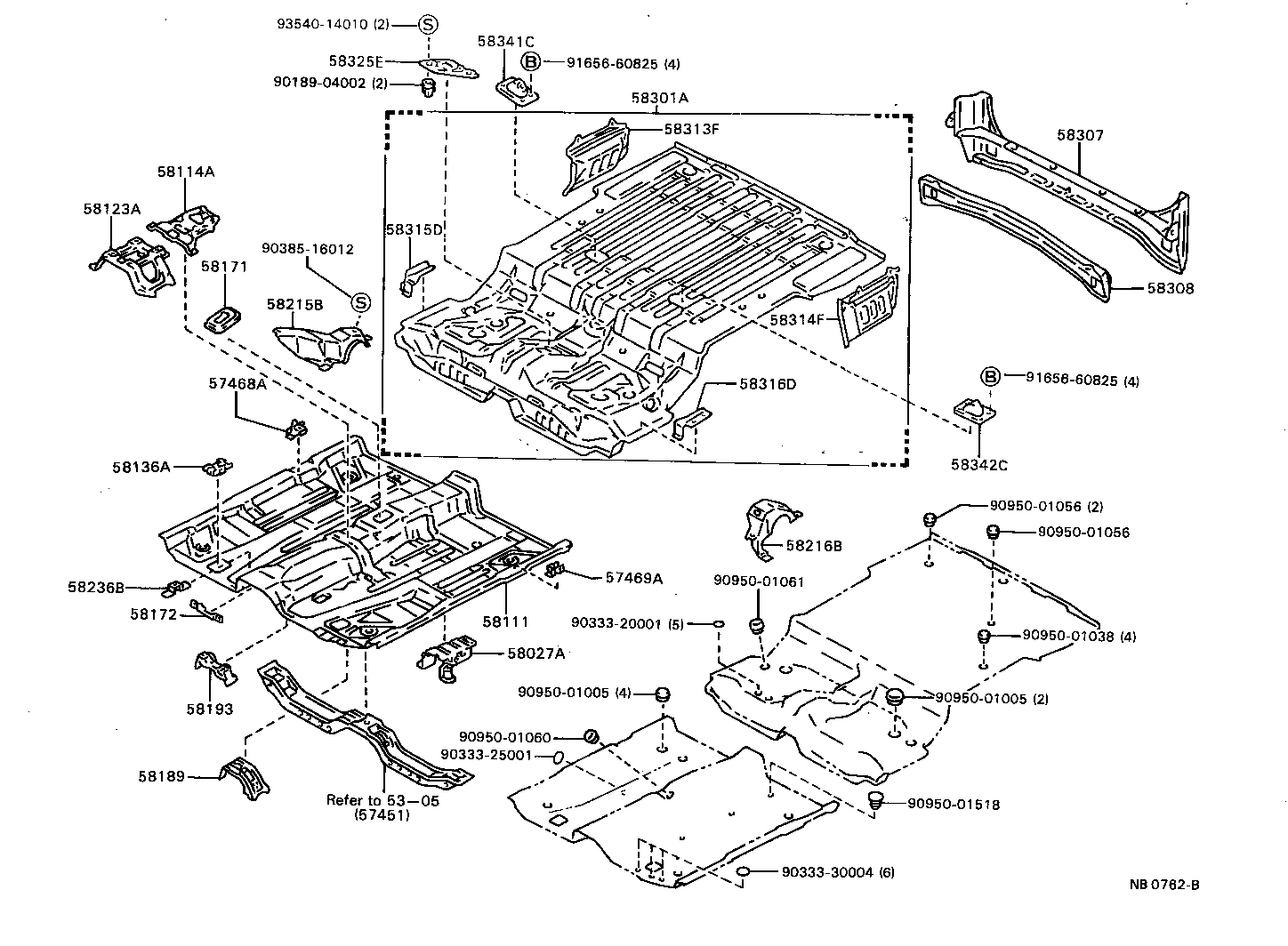

Click highlighted areas on diagram

diagram 5305 57468A 57469A 58027A 58111 58114A 58123A 58136A 58171 58172 58189 58193 58215B 58216B 58236B 58301A 58307 58308 58313F 58314F 58315D 58316D 58325E 58341C 58342C 9018904002 9033320001 9033325001 9033330004 9038516012 9095001005 9095001005 9095001038 9095001056 9095001056 9095001060 9095001061 9095001518 9165660825 9165660825 9354014010
Part # Description Qty Price
57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH
57468-20030

AT170,171,CT17#,ET176,ST170

 1
57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH
57469-20030

AT170,171,CT17#,ET176,ST170

 1
58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR
58027-20050

AT171,ET176..DX,GLIM,SG,STD

 1
58027-20070

AT170,171,CT17#,ET176,ST170..(DX,S,SE,SG,SGEXT,STD,SV,SX)..(CBR,CI,DSL,EFI)

 1
58111 - PAN, FRONT FLOOR
58111-20120

AT170,171,CT17#,ET176,ST170

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-20040

AT170,171,CT17#,ET176,ST170

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-20040

AT170,171,CT17#,ET176,ST170

 1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-20010

AT170,171,CT17#,ET176,ST170

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-20040

AT170,171,CT17#,ET176,ST170

 1
58171-20100

AT170,171,CT17#,ET176,ST170

 1
58172 - BRACKET, COMPUTER MOUNTING, NO.3
58172-20040

AT170,171,CT17#,ET176,ST170

 1
58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58189-20020

AT170,171,CT17#,ET176,ST170

 1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58109-20090

AT170,171,CT17#,ET176,ST170

 1
58215B - BRACKET, REAR SEAT MOUNTING, RH
58215-13020

CT176,ET176

 1
58216B - BRACKET, REAR SEAT MOUNTING, LH
58216-13020

CT176,ET176

 1
58236B - BRACKET, CENTER FLOOR HEAT INSULATOR
58236-14010

AT171,ET176..DX,GLIM,SG,STD

 3
58301A - PANEL SUB-ASSY, REAR FLOOR
58301-95510

CT176,ET176

 1
58301-95512

CT176,ET176

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-95517

CT176,ET176

 1
58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308-95501

CT176,ET176

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-95502

CT176,ET176

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-95502

CT176,ET176

 1
58315D - EXTENSION, REAR FLOOR PAN, RH
58315-95500

CT176,ET176

 1
58316D - EXTENSION, REAR FLOOR PAN, LH
58316-95500

CT176,ET176

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-12020

CT176,ET176

 1
58341C - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58341-13020

CT176,ET176

 1
58342C - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58342-13020

CT176,ET176

 1
Common parts
90189-04002
90333-20001
90333-25001
90333-30004
90385-16012
90950-01005
90950-01038
90950-01056
90950-01060
90950-01061
90950-01518
91656-60825
93540-14010
Linked diagrams
5305
