ET176V-CXHDS (1988)
Toyota Carina Ff
Production
May 1988
-
Nov 1992
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8805- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-20110 |
ET176 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-20160 |
ET176,ST170 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20680 |
ET176 |
1 | ||
| 88320-20670 |
ET176 ｱﾘ(ﾊﾟﾜ- ｽﾃﾘﾝｸﾞ) |
1 | ||
| 88320-20840 |
ET176 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 88320-20850 |
ET176 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
AT17#,ET176,ST170 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-20260 |
ET176 |
1 | ||
| 88410-20560 |
ET176 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 88410-20570 |
ET176 |
1 | ||
| Common parts | ||||
| 16385-64011 | ||||
| 90099-04349 | ||||
| 90099-04356 | ||||
| 90099-04976 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90119-08299 | ||||
| 93319-15008 | ||||
(8805- )ET176

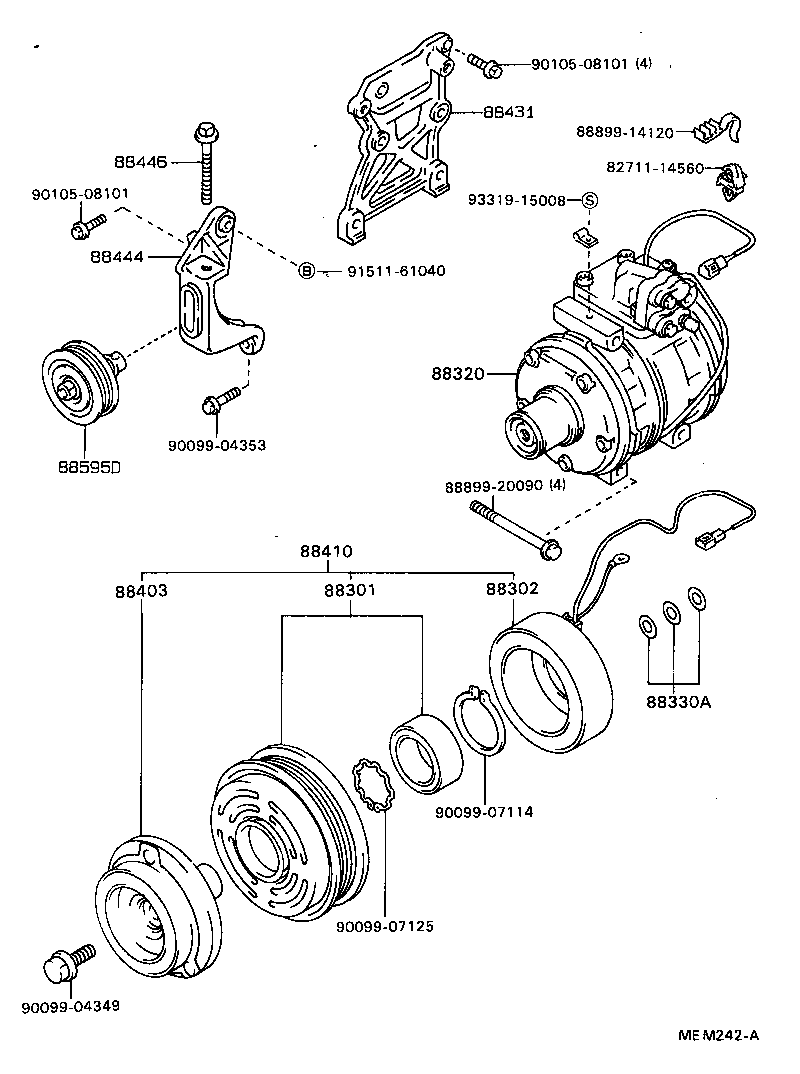

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-20110 |
ET176 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-20160 |
ET176,ST170 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20680 |
ET176 |
1 | ||
| 88320-20670 |
ET176 ｱﾘ(ﾊﾟﾜ- ｽﾃﾘﾝｸﾞ) |
1 | ||
| 88320-20840 |
ET176 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 88320-20850 |
ET176 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
AT17#,ET176,ST170 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-20260 |
ET176 |
1 | ||
| 88410-20560 |
ET176 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 88410-20570 |
ET176 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-20310 |
ET176 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-16030 |
ET176 |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-12030 |
AT175,ET176;AT170..SED..EFI;AT170..(DX,SE,SV)..CBR |
1 | ||
| 88446-12030 |
AT170,175,ET176 |
1 | ||
| 88446-12030 |
AT175;AT170,ET176..DX,SE,SG,STD |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-12170 |
ET176 |
1 | ||
| Common parts | ||||
| 82711-14560 | ||||
| 88899-14120 | ||||
| 88899-20090 | ||||
| 90099-04349 | ||||
| 90099-04353 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90105-08101 | ||||
| 91511-61040 | ||||
| 93319-15008 | ||||
