ET176V-CXHDS (1988)
Toyota Carina Ff
(8805- )CT176,ET176

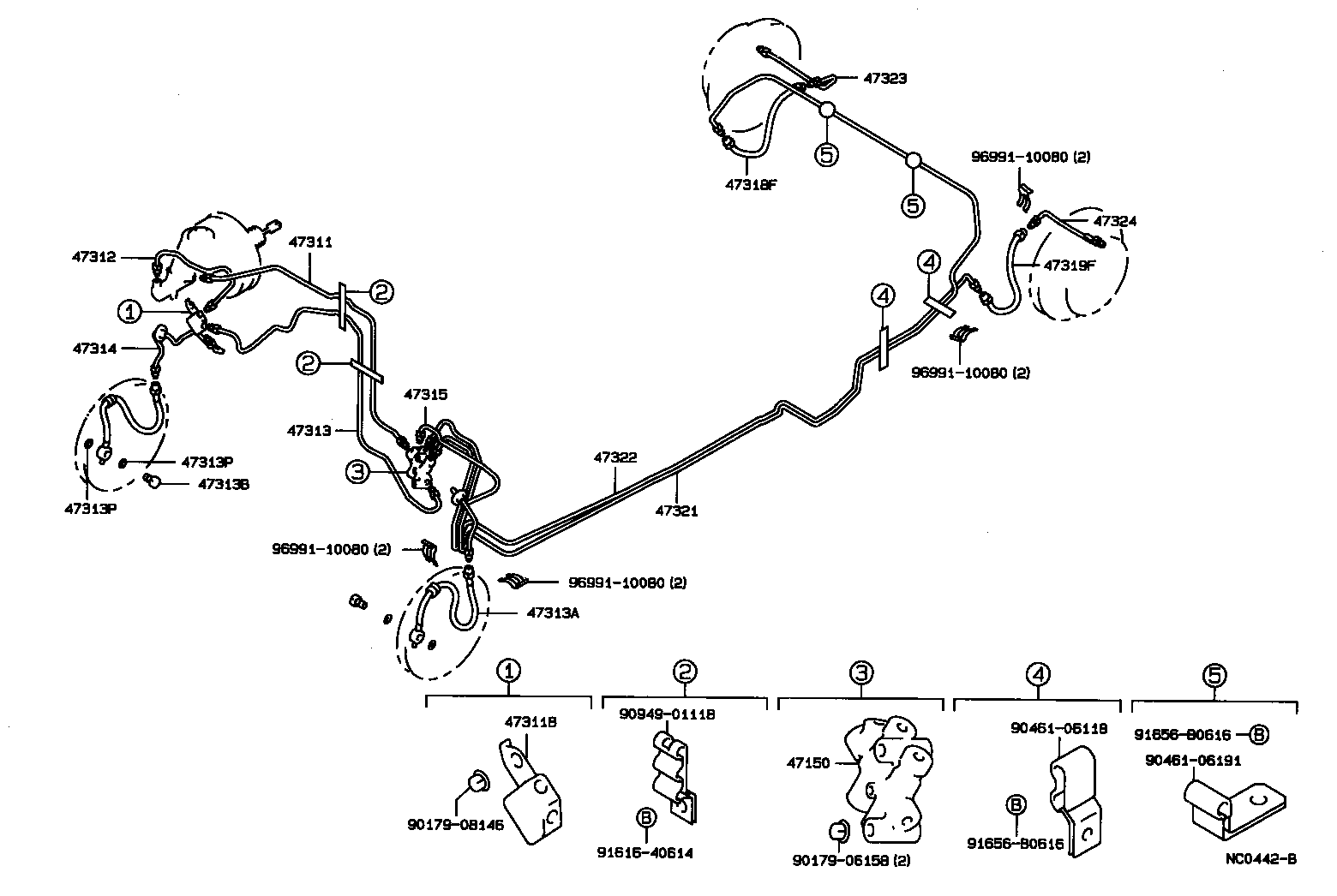

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-20160 |
AT171,175,CT176,ET176..DX,GLIM,SE,SG,SGEXT,STD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20520 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 47311-20670 |
CT17#,ET176 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10193 |
AT170,171..GLIM,S,SV;AT175,CT17#,ET176,ST170 |
1 | ||
| 90413-10193 |
AT175,CT17#,ET176 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-20200 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 47312-20200 |
CT17#,ET176 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20340 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02565 |
AT170,171,CT17#,ET176,ST170 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
AT17#,CT17#,ET176,ST170 |
4 | ||
| 90430-10074 |
AT17#,CT17#,ET176,ST170 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
AT17#,CT17#,ET176,ST170 |
4 | ||
| 90430-10074 |
AT17#,CT17#,ET176,ST170 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20560 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 47314-20300 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20400 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02539 |
CT176,ET176 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02539 |
CT176,ET176 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20230 |
CT176,ET176 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20350 |
CT176,ET176 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-13020 |
CT176,ET176 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-13060 |
CT176,ET176 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90461-06118 | ||||
| 90461-06191 | ||||
| 90949-01118 | ||||
| 91616-40614 | ||||
| 91656-B0616 | ||||
| 96991-10080 | ||||
(8805- )AT170,171,CT170,ST170 ; (9011- )
ｼﾝﾀｲｼﾖｳｶﾞｲｼﾔﾖｳ ｼﾔﾘﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-20160 |
AT171,175,CT176,ET176..DX,GLIM,SE,SG,SGEXT,STD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20520 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 47311-20670 |
CT17#,ET176 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20520 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 47311-20670 |
CT17#,ET176 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20520 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 47311-20670 |
CT17#,ET176 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10193 |
AT170,171..GLIM,S,SV;AT175,CT17#,ET176,ST170 |
1 | ||
| 90413-10193 |
AT175,CT17#,ET176 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10193 |
AT170,171..GLIM,S,SV;AT175,CT17#,ET176,ST170 |
1 | ||
| 90413-10193 |
AT175,CT17#,ET176 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-20200 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 47312-20200 |
CT17#,ET176 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-20200 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 47312-20200 |
CT17#,ET176 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-20200 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 47312-20200 |
CT17#,ET176 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20340 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02565 |
AT170,171,CT17#,ET176,ST170 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02565 |
AT170,171,CT17#,ET176,ST170 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
AT17#,CT17#,ET176,ST170 |
4 | ||
| 90430-10074 |
AT17#,CT17#,ET176,ST170 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
AT17#,CT17#,ET176,ST170 |
4 | ||
| 90430-10074 |
AT17#,CT17#,ET176,ST170 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20560 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 47314-20300 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20400 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02539 |
CT176,ET176 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02539 |
CT176,ET176 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02539 |
CT176,ET176 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02539 |
CT176,ET176 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20230 |
CT176,ET176 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20350 |
CT176,ET176 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-13020 |
CT176,ET176 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-13060 |
CT176,ET176 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90461-06055 | ||||
| 90480-01359 | ||||
| 90949-01118 | ||||
| 90959-01274 | ||||
| 90959-01278 | ||||
| 91616-40614 | ||||
| 91656-B0616 | ||||
| 96991-10080 | ||||
