ET176V-CXHDS (1988)

Toyota Carina Ff

Production May 1988 - Nov 1992
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )

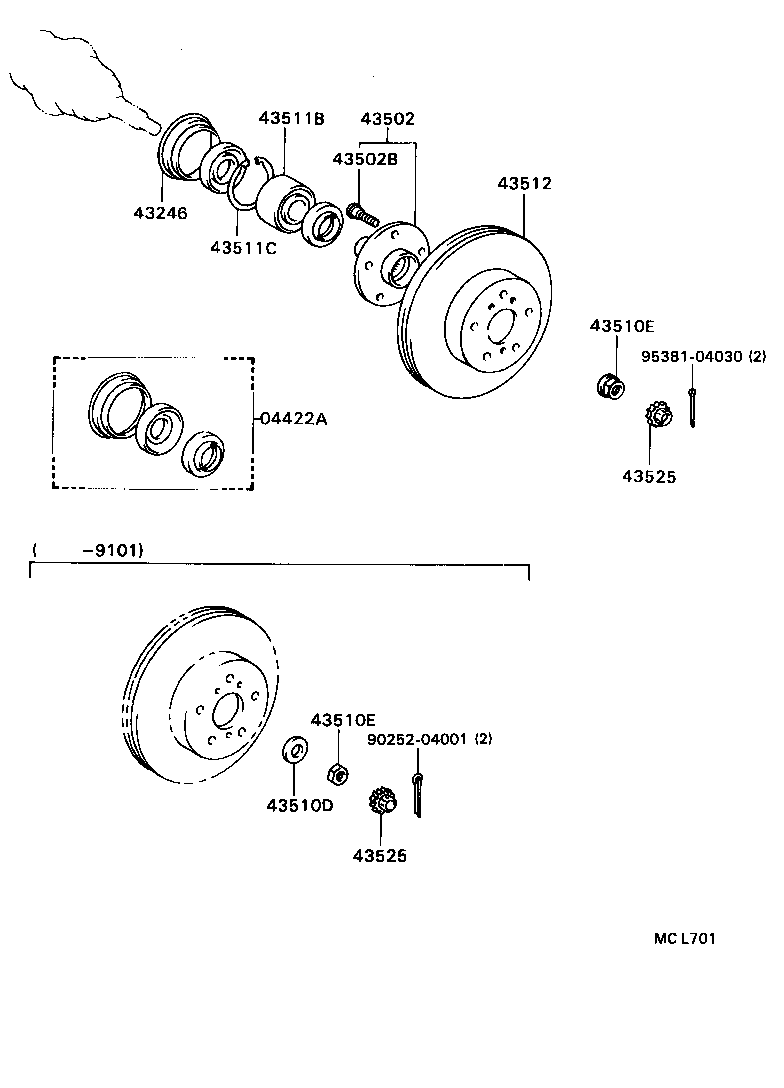

Click highlighted areas on diagram

diagram 04422A 43246 43502 43502B 43510D 43510E 43510E 43511B 43511C 43512 43525 43525 9025204001 9538104030
Part # Description Qty Price
04422A - SEAL KIT, FRONT AXLE OIL
04422-20010

AT17#,CT17#,ET176,ST170

 2
04422-20010

CT170,ET176

 2
04422-20010

AT170,CT17#,ET176,ST170

 2
43246 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1
43246-20010

AT17#,CT17#,ET176,ST170

 2
43246-20010

CT170,ET176,ST170

 2
43502 - HUB SUB-ASSY, FRONT AXLE
43502-20080

AT170,ET176,ST170..VAN,WG

 2
43502-20080

AT170,ET176,ST170

 2
43502-20110

AT170,171,CT17#,ET176,ST170..(DX,S,SE,SG,SGEXT,STD,SV,SX)..(CBR,CI,DSL,EFI)

 2
43502-20080

AT170,ET176,ST170

 2
43502B - BOLT, HUB (FOR FRONT AXLE)
90942-02047

AT170,ET176,ST170

 8
90942-02049

AT170,171,CT17#,ET176,ST170..(DX,S,SE,SG,SGEXT,STD,SV,SX)..(CBR,CI,DSL,EFI)

 8
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90201-20012

AT17#,CT17#,ET176,ST170

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19001

AT17#,CT17#,ET176,ST170

 2
90179-22020

AT17#,CT17#,ET176,ST170

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19001

AT17#,CT17#,ET176,ST170

 2
90179-22020

AT17#,CT17#,ET176,ST170

 2
43511B - BEARING (FOR FRONT AXLE HUB)
90369-38003

AT17#,CT17#,ET176,ST170

 2
43511C - RING, HOLE SNAP (FOR FRONT AXLE HUB)
90521-79002

AT17#,CT17#,ET176,ST170

外径=79

 2
43512 - DISC, FRONT
43512-20240

AT17#,CT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX

 2
43512-20310

AT170,171,CT17#,ET176,ST170..(DX,S,SE,SG,SGEXT,STD,SV,SX)..(CBR,CI,DSL,EFI)

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-16010

AT17#,CT17#,ET176,ST170

 2
43525-20030

AT17#,CT17#,ET176,ST170

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-16010

AT17#,CT17#,ET176,ST170

 2
43525-20030

AT17#,CT17#,ET176,ST170

 2
Common parts
90252-04001
95381-04030
