ET176V-CXHDS (1988)
Toyota Carina Ff
Production
May 1988
-
Nov 1992
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8805- )3E

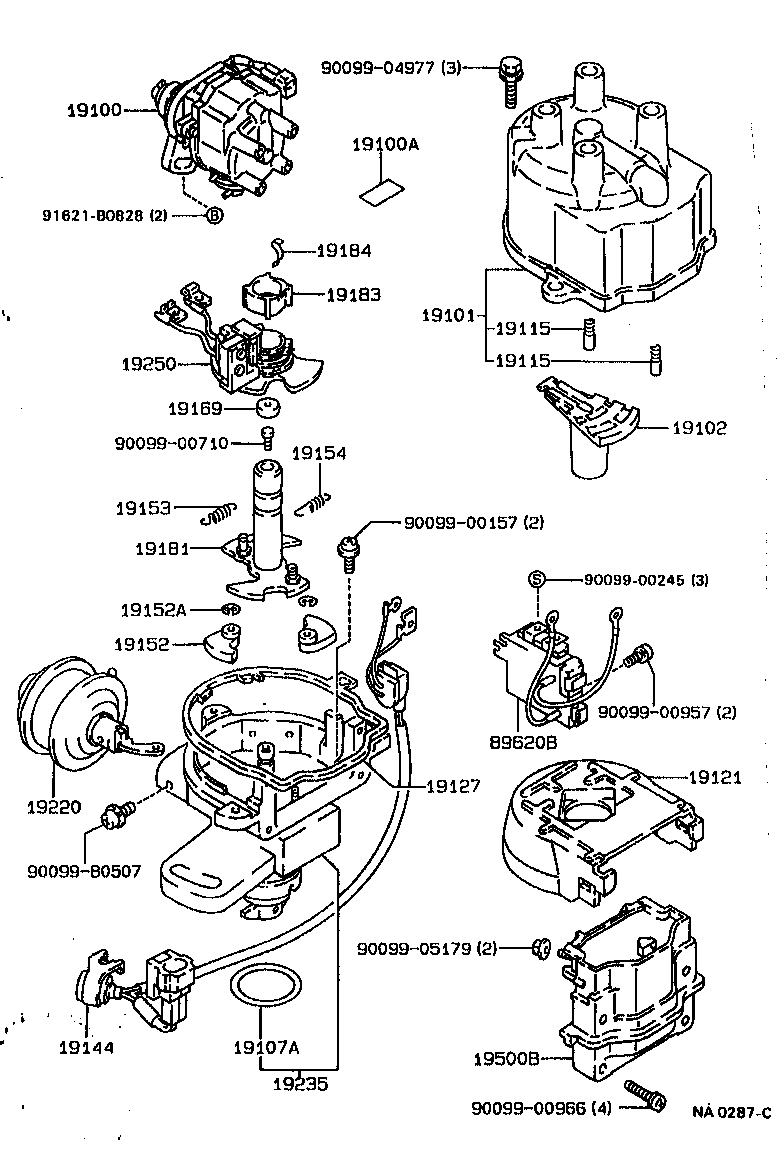

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19020-11230 |
3E..ET176 |
1 | ||
| 19020-11310 |
3E..ET176..3FC,4F |
1 | ||
| 19020-11170 |
3E..ET176 |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
3E..ET176 |
1 | ||
| 90919-24004 |
3E..ET176 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-11300 |
3E..ET176..3FC,4F |
1 | ||
| 19101-11010 |
3E..ET176 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-11031 |
3E..ET176 |
1 | ||
| 19102-11010 |
3E..ET176 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14091 |
3E..ET176 |
1 | ||
| 96711-35030 |
3E..ET176 |
1 | ||
| 96711-35030 |
3E..ET176 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
3E..ET176 |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
3E..ET176 |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-11080 |
3E..ET176 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15120 |
3E..ET176 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-11080 |
3E..ET176 |
1 | ||
| 19144-11300 |
3E..ET176 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-15160 |
3E..ET176 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
3E..ET176 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-11080 |
3E..ET176 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-11080 |
3E..ET176 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
3E..ET176..3FC,4F |
2 | ||
| 19169-63011 |
3E..ET176 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-11172 |
3E..ET176 |
1 | ||
| 19181-11230 |
3E..ET176 |
1 | ||
| 19183 - ROTOR, SIGNAL | ||||
| 19183-15010 |
3E..ET176 |
1 | ||
| 19184 - SPRING, ROTOR SET | ||||
| 19184-63010 |
3E..ET176 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-11230 |
3E..ET176 |
1 | ||
| 19220-11080 |
3E..ET176 |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-11170 |
3E..ET176 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19251-16100 |
3E..ET176 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02164 |
3E..ET176 |
1 | ||
| 90919-02164 |
3E..ET176 |
1 | ||
| 90919-02164 |
3E..ET176 |
1 | ||
| 89620B - IGNITER ASSY | ||||
| 89620-10090 |
ET176 |
1 | ||
| 89620-12340 |
ET176 |
1 | ||
| Common parts | ||||
| 90099-00157 | ||||
| 90099-00245 | ||||
| 90099-00710 | ||||
| 90099-00957 | ||||
| 90099-00966 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90099-80507 | ||||
| 91621-B0828 | ||||
