CT216-CEPMT (1998)

Toyota Carina Ff

Production Aug 1998 - Dec 2001
Engine 3CTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

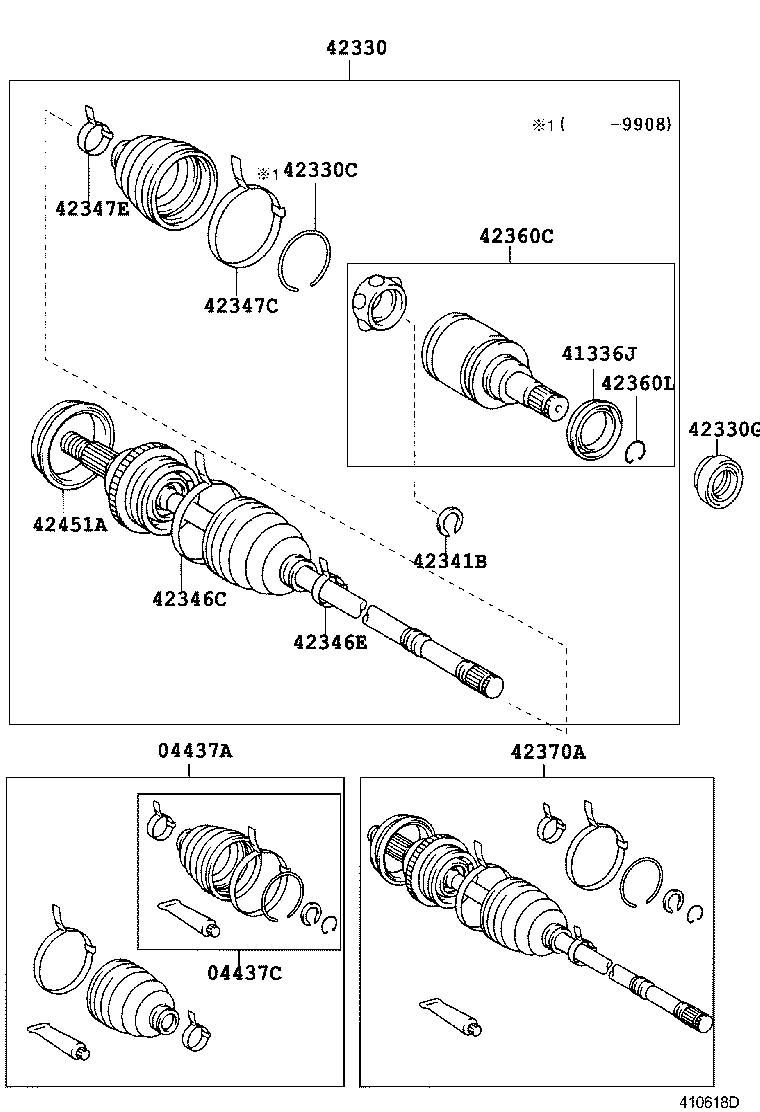

ILLUST NO. 1 OF 2(9808- )CT216,ST215

Click highlighted areas on diagram

ﾗｲﾄ

diagram 04437A 04437C 41336J 42330 42330C 42330G 42341B 42346C 42346E 42347C 42347E 42360C 42360L 42370A 42451A
Part # Description Qty Price
04437A - BOOT KIT, REAR DRIVE SHAFT, RH
04437-21021

CT216,ST215

 1
04437-21022

CT216,ST215

 1
04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH
04437-21011

CT216,ST215

 1
04437-21012

CT216,ST215

 1
41336J - COVER, REAR DRIVE SHAFT DUST, RH
41336-33010

CT216,ST215

 1
42330 - SHAFT ASSY, REAR DRIVE, RH
42330-21011

CT216,ST215

 1
42330C - RING, HOLE SNAP(FOR REAR DRIVE SHAFT)
90521-64001

CT216,ST215

 1
42330G - OIL SEAL, REAR DRIVE SHAFT, RH
90311-42033

CT216,ST215

 1
42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH)
90520-21020

CT216,ST215

 1
42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-12120

CT216,ST215

内径=74.3

 1
42345-12120

CT216,ST215

 1
42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R
42345-33020

CT216,ST215

 1
42345-12130

CT216,ST215

 1
42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-12120

CT216,ST215

内径=74.3

 1
42345-12120

CT216,ST215

 1
42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH
42345-12130

CT216,ST215

 1
42345-33020

CT216,ST215

 1
42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH
42360-33010

CT216,ST215

 1
42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH
90521-26004

CT216,ST215

 1
42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
42370-29417

CT216,ST215

 1
42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH
43247-12010

CT215,216,ST215

 1

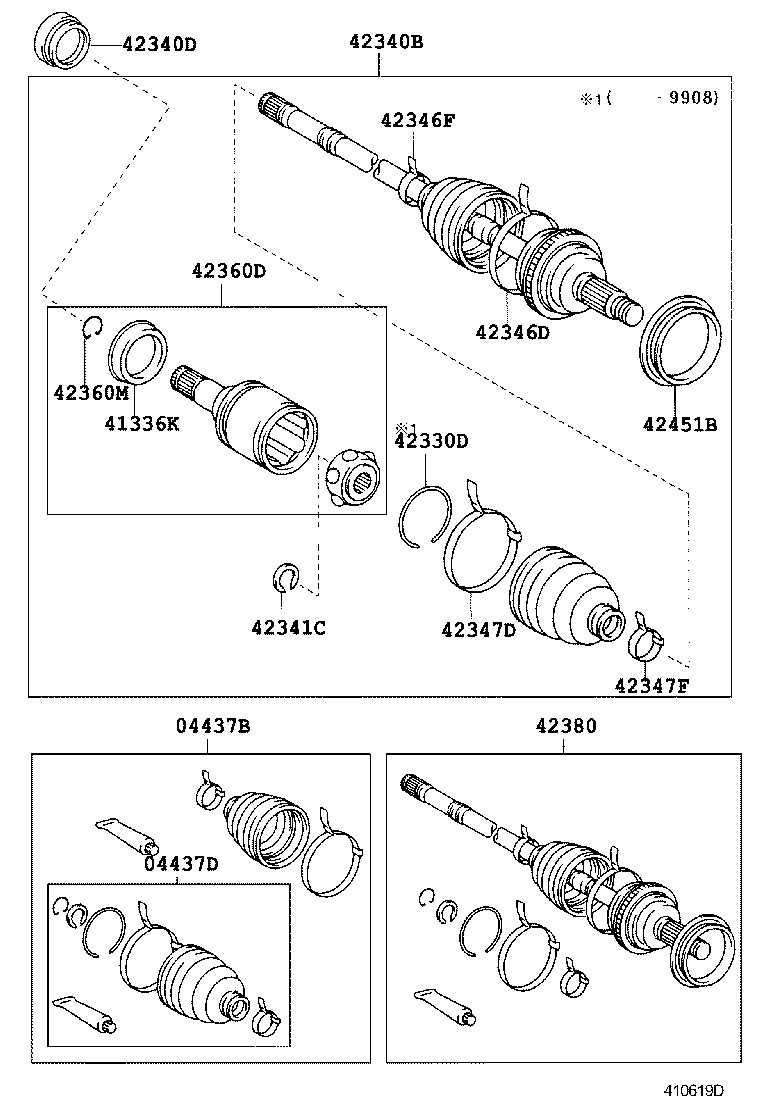

ILLUST NO. 1 OF 2(9808- )CT216,ST215

Click highlighted areas on diagram

ﾚﾌﾄ

diagram 04437B 04437D 41336K 42330D 42340B 42340D 42341C 42346D 42346F 42347D 42347F 42360D 42360M 42380 42451B
Part # Description Qty Price
04437B - BOOT KIT, REAR DRIVE SHAFT, LH
04437-21022

CT216,ST215

 1
04437-21021

CT216,ST215

 1
04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH
04437-21011

CT216,ST215

 1
04437-21012

CT216,ST215

 1
41336K - COVER, REAR DRIVE SHAFT DUST, LH
41336-33010

CT216,ST215

 1
42330D - RING, SHAFT SNAP(FOR REAR DRIVE SHAFT)
90521-64001

CT216,ST215

 1
42340B - SHAFT ASSY, REAR DRIVE, LH
42340-21011

CT216,ST215

 1
42340D - OIL SEAL, REAR DRIVE SHAFT, LH
90311-42033

CT216,ST215

 1
42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH)
90520-21020

CT216,ST215

 1
42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-12120

CT216,ST215

 1
42345-12120

CT216,ST215

内径=74.3

 1
42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L
42345-12130

CT216,ST215

 1
42345-33020

CT216,ST215

 1
42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42345-12120

CT216,ST215

内径=74.3

 1
42345-12120

CT216,ST215

 1
42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH
42345-12130

CT216,ST215

 1
42345-33020

CT216,ST215

 1
42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH
42360-33010

CT216,ST215

 1
42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH
90521-26004

CT216,ST215

 1
42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
42380-29167

CT216,ST215

 1
42380-29166

CT216,ST215

 1
42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH
43247-12010

CT215,216,ST215

 1
