CT211-CEPMT (1998)

Toyota Carina Ff

Production Aug 1998 - Dec 2001
Engine 3CTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9808- )CT21#,ST215

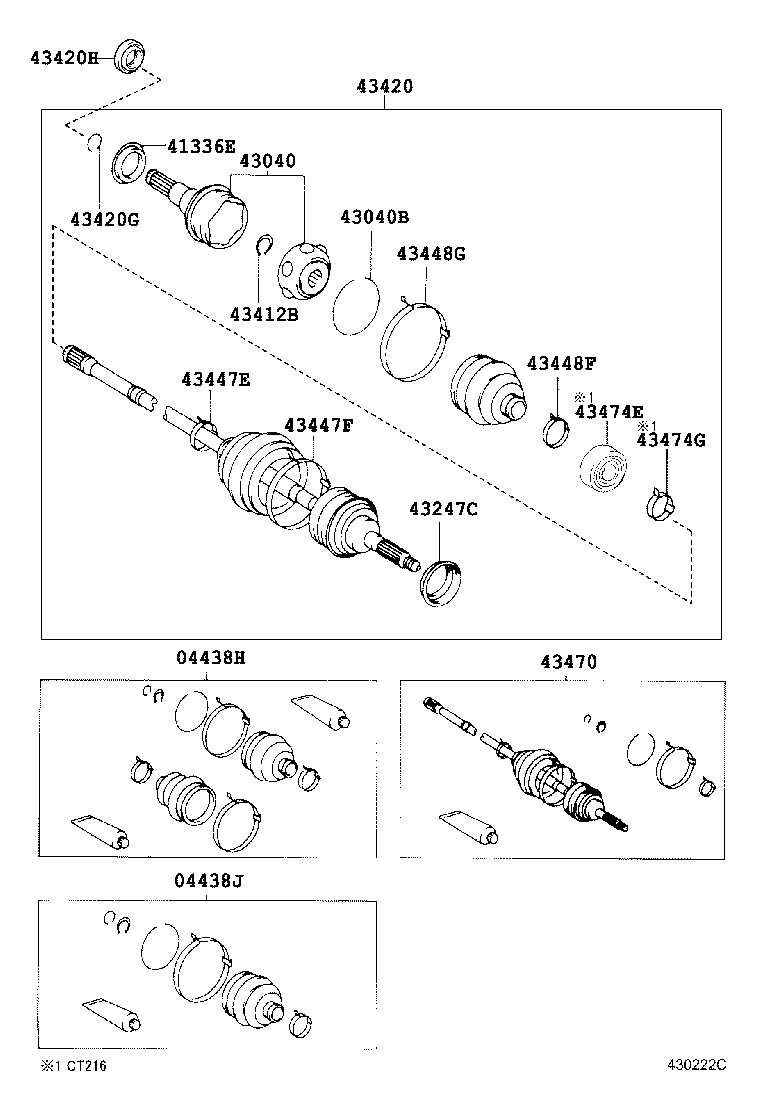

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43040B 43247C 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474E 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-20350

CT211

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-20340

CT211

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-32020

CT210,211,216,ST215..TI

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-20050

CT211

 1
43040B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH)
90521-79001

CT21#,ST215

 1
43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2
43247-12010

AT21#,CT21#,ST215

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-25034

CT21#,ST215

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-20530

CT211

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-27005

CT210,211,216,ST215..TI

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35020

CT210,211,216,ST215..4FC..TI

 1
90311-35047

CT21#,ST215..4FC

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
90949-01A65

CT21#,ST215

 1
42345-16030

CT21#,ST215

内径=35.75

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
90949-01937

CT21#,ST215

 1
42345-16040

CT21#,ST215

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01108

CT21#,ST215

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-16040

CT21#,ST215

 1
42346-22010

CT21#,ST215

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-29515

CT211

 1

(9808- )CT211

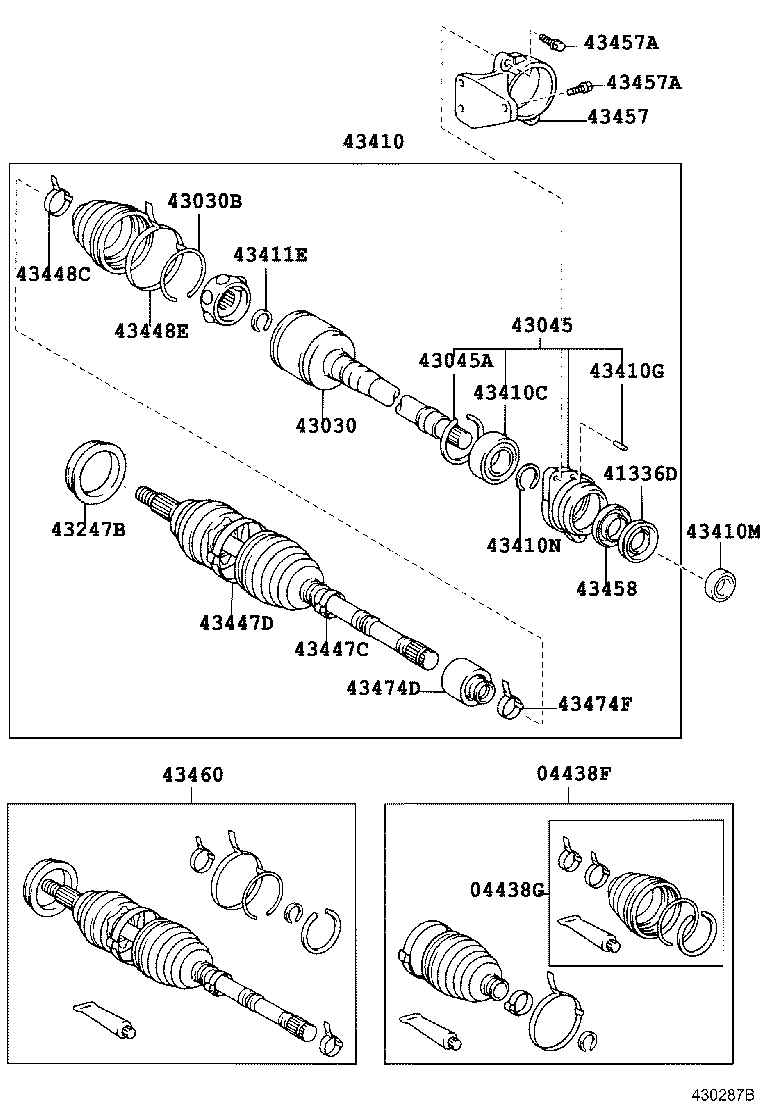

Click highlighted areas on diagram

RH

diagram 04438F 04438G 41336D 43030 43030B 43045 43045A 43247B 43410 43410C 43410G 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457A 43458 43460 43474D 43474F
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-20350

CT211

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-20340

CT211

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-20050

AT210,CT211

 1
41336-20011

AT210,CT211

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-20080

CT211

 1
43030B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)
90521-79001

CT21#,ST215

 1
43045 - CASE SUB ASSY, DRIVE SHAFT BEARING
43045-20030

CT211

 1
43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
96153-00680

AT210,CT211

 1
43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
43247-12010

AT21#,CT21#,ST215

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-20560

CT211

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36004

AT210,CT211

 1
90363-36003

CT211

 1
43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT)
90250-06003

AT210,CT211

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-35019

CT210,211..4FC

 1
90311-35045

CT211..4FC

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008

CT21#,ST215

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-25034

CT21#,ST215

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-16030

CT21#,ST215

内径=35.75

 1
90949-01A65

CT21#,ST215

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-16040

CT21#,ST215

 1
90949-01937

CT21#,ST215

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01108

CT21#,ST215

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42346-22010

CT21#,ST215

 1
42345-16040

CT21#,ST215

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-20060

CT211

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-10285

CT211

*10−1.25PX22−19.5

 5
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-10285

CT211

*10−1.25PX22−19.5

 5
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-20011

CT211

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-29355

CT211

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-20090

CT21#,ST215

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
90949-01696

CT21#,ST215

 1
