CT211-CEMMT (1998)

Toyota Carina Ff

Production Aug 1998 - Dec 2001
Engine 3CTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9808- )CT21#

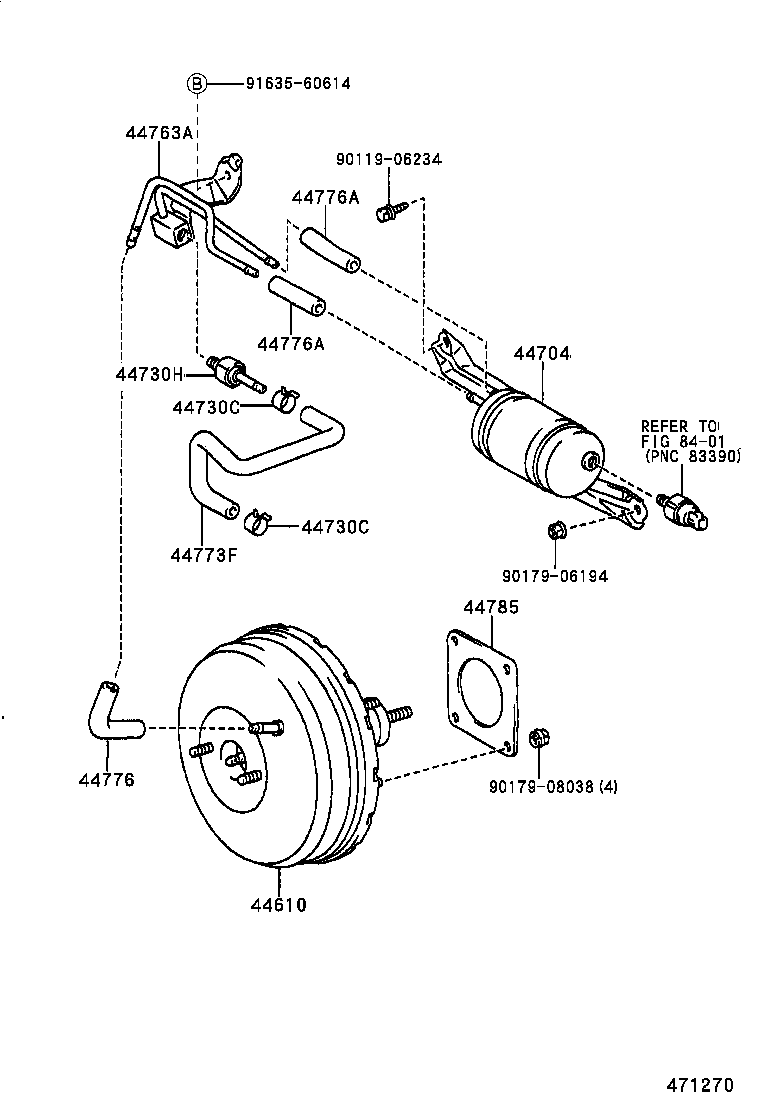

Click highlighted areas on diagram

diagram 44610 44704 44730C 44730C 44730H 44763A 44773F 44776 44776A 44776A 44785 8401 9011906234 9017906194 9017908038 9163560614
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-2D880

CT211

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-20130

CT21#

 1
44704-20140

CT21#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AT211,212,CT211,216,ST215

 2
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AT211,212,CT211,216,ST215

 2
44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)
44730-60050

CT21#

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-20200

CT21#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-2B060

CT21#

 1
44773-21040

CT21#

 1
44776 - HOSE, BRAKE BOOSTER
44776-21010

CT21#

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
90445-17044

CT21#

 2
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
90445-17044

CT21#

 2
44785 - GASKET, BRAKE BOOSTER
44785-20020

AT21#,CT21#,ST215

 1
Common parts
90119-06234
90179-06194
90179-08038
91635-60614
Linked diagrams
8401
