CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9608- )CT21#

Click highlighted areas on diagram

diagram 1605 88688K 9009904345
Part # Description Qty Price
88688K - BRACKET, COOLER COMPRESSOR
88688-2D720

CT21#

 3
Common parts
90099-04345
Linked diagrams
1605

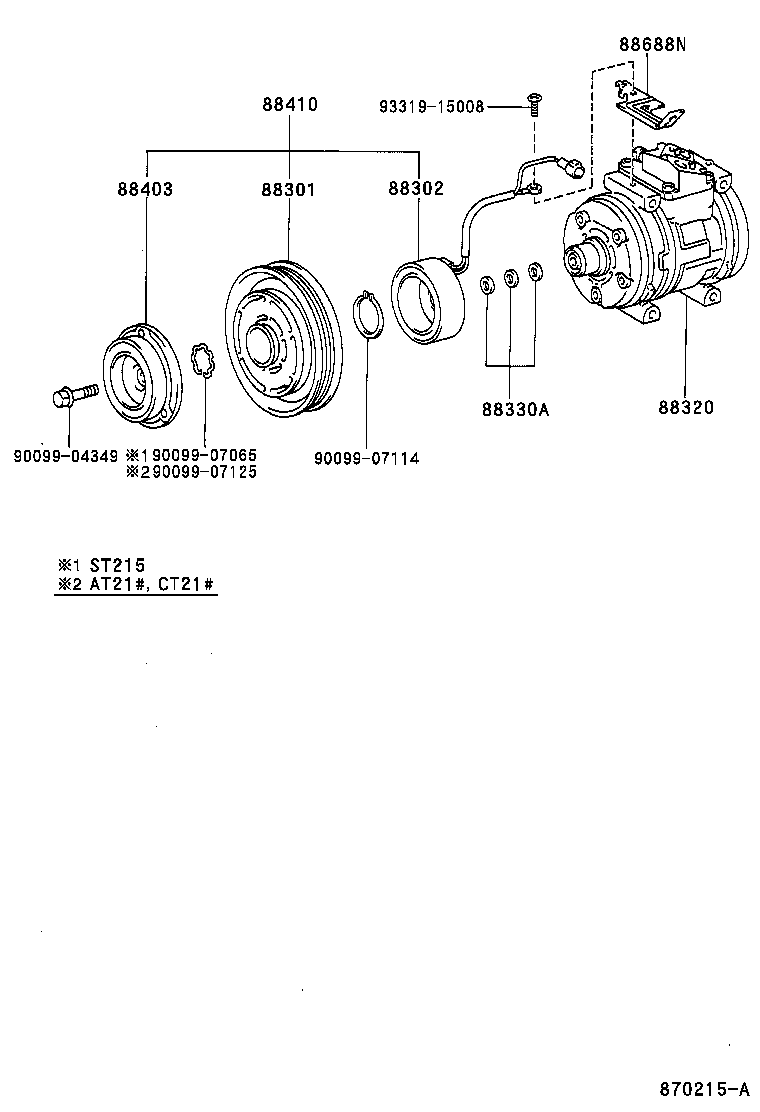

ILLUST NO. 2 OF 2(9608- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 88688N 9009904349 9009907065 9009907114 9009907125 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-33050

CT21#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2A030

AT21#,CT21#,ST215

 1
88411-22310

AT21#,CT21#,ST215

 1
88320 - COMPRESSOR ASSY, COOLER
88320-2B360

CT21#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

AT21#,CT21#,ST215

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-30290

AT21#,CT21#,ST215

 1
88410 - CLUTCH ASSY, MAGNET
88410-2B060

CT21#

 1
88688N - BRACKET, COOLER
88688-2D770

CT21#

 1
Common parts
90099-04349
90099-07065
90099-07114
90099-07125
93319-15008
