CT210-CEPMX (1996)
Toyota Carina Ff
Production
Aug 1996
-
Aug 1998
Engine
2CT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )CT21#

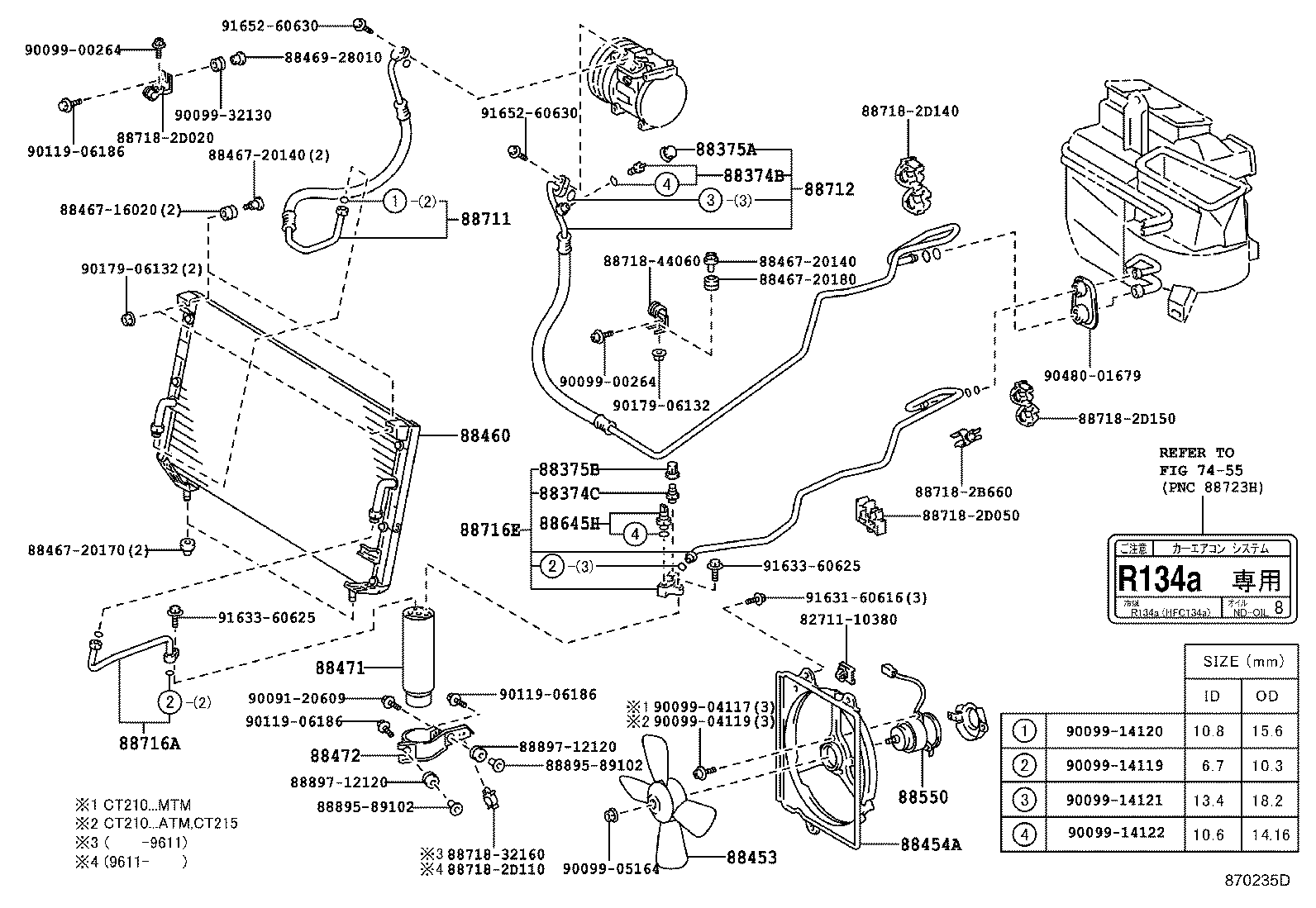

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
AT21#,CT21#,ST215 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
AT21#,CT21#,ST215 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30290 |
AT21#,CT21#,ST215 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
AT21#,CT21#,ST215 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 16361-64030 |
CT215;CT210..4FC |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 16711-64362 |
CT215;CT210..4FC |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20530 |
CT21# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
AT21#,CT21#,ST215 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-20200 |
AT21#,CT21#,ST215 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-64090 |
CT215;CT210..4FC |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20060 |
CT211,215;CT210,216..4FC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2B340 |
CT21# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2D010 |
CT21# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2D490 |
AT21#,CT21#,ST215 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2D480 |
CT21# |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 88467-16020 | ||||
| 88467-20140 | ||||
| 88467-20170 | ||||
| 88467-20180 | ||||
| 88469-28010 | ||||
| 88718-2B660 | ||||
| 88718-2D020 | ||||
| 88718-2D050 | ||||
| 88718-2D110 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-32160 | ||||
| 88718-44060 | ||||
| 88895-89102 | ||||
| 88897-12120 | ||||
| 90091-20609 | ||||
| 90099-00264 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-32130 | ||||
| 90119-06186 | ||||
| 90179-06132 | ||||
| 90480-01679 | ||||
| 91631-60616 | ||||
| 91633-60625 | ||||
| 91652-60630 | ||||
| Linked diagrams | ||||
| 7455 | ||||
