CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

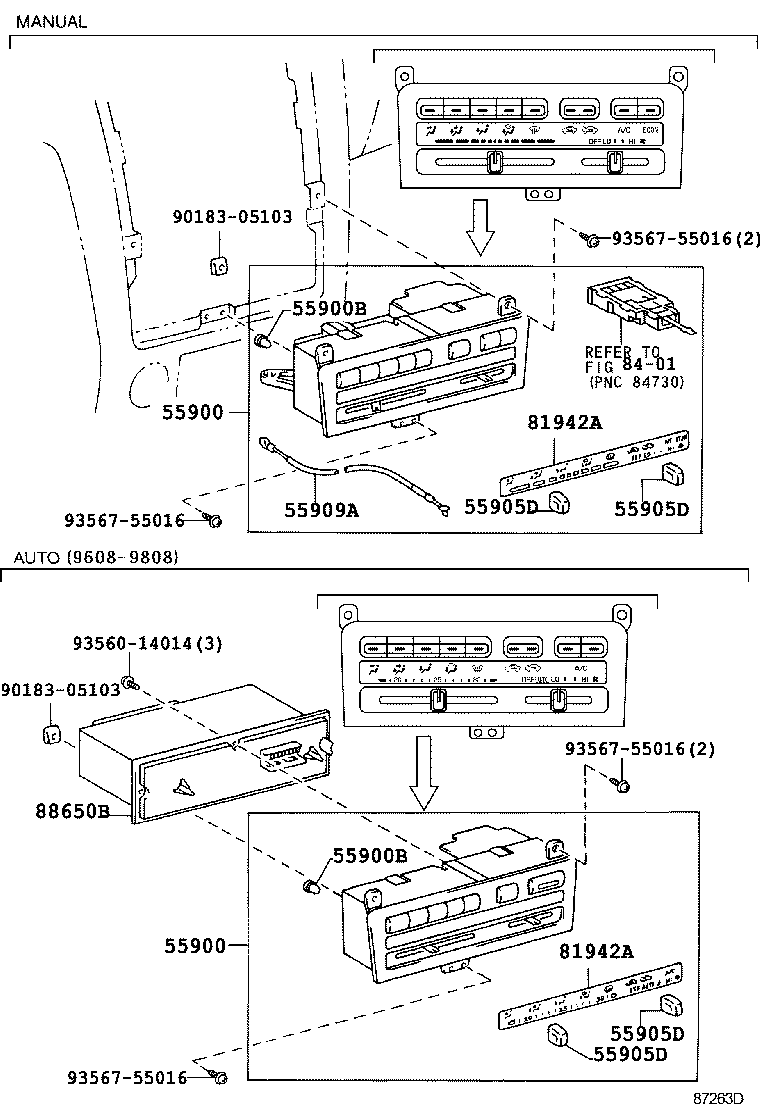

ILLUST NO. 1 OF 3(9608- )

Click highlighted areas on diagram

diagram 55900 55900 55900B 55900B 55905D 55905D 55905D 55905D 55909A 81942A 81942A 8401 88650B 9018305103 9018305103 9356014014 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-2B360

AT211,212,CT21#,ST215

ｵ-ﾄ

 1
55900-2B350

AT210,212,CT21#

ﾏﾆﾕｱﾙ

 1
55900-2B360

AT21#,CT21#,ST215

ｵ-ﾄ

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-2B360

AT211,212,CT21#,ST215

ｵ-ﾄ

 1
55900-2B350

AT210,212,CT21#

ﾏﾆﾕｱﾙ

 1
55900-2B360

AT21#,CT21#,ST215

ｵ-ﾄ

 1
55900B - BULB, AIR CONDITIONER CONTROL
84999-70018

AT21#,CT21#,ST215

14V 1.4W,ｷｬｯﾌﾟ付き

 2
55900B - BULB, AIR CONDITIONER CONTROL
84999-70018

AT21#,CT21#,ST215

14V 1.4W,ｷｬｯﾌﾟ付き

 2
55905D - KNOB SUB-ASSY, CONTROL
55905-20380

AT21#,CT21#,ST215

 2
55905D - KNOB SUB-ASSY, CONTROL
55905-20380

AT21#,CT21#,ST215

 2
55905D - KNOB SUB-ASSY, CONTROL
55905-20380

AT21#,CT21#,ST215

 2
55905D - KNOB SUB-ASSY, CONTROL
55905-20380

AT21#,CT21#,ST215

 2
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-20190

AT210,212,CT21#

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-20500

AT21#,CT21#,ST215

ｱﾘ(ｵ-ﾄｴｱｺﾝ)

 1
81942-20500

AT211,212,CT21#,ST215

ｱﾘ(ｵ-ﾄｴｱｺﾝ)

 1
81942-20470

AT210,212,CT21#

ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-20500

AT21#,CT21#,ST215

ｱﾘ(ｵ-ﾄｴｱｺﾝ)

 1
81942-20500

AT211,212,CT21#,ST215

ｱﾘ(ｵ-ﾄｴｱｺﾝ)

 1
81942-20470

AT210,212,CT21#

ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)

 1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-2B510

CT21#,ST215

 1
Common parts
90183-05103
93560-14014
93567-55016
Linked diagrams
8401

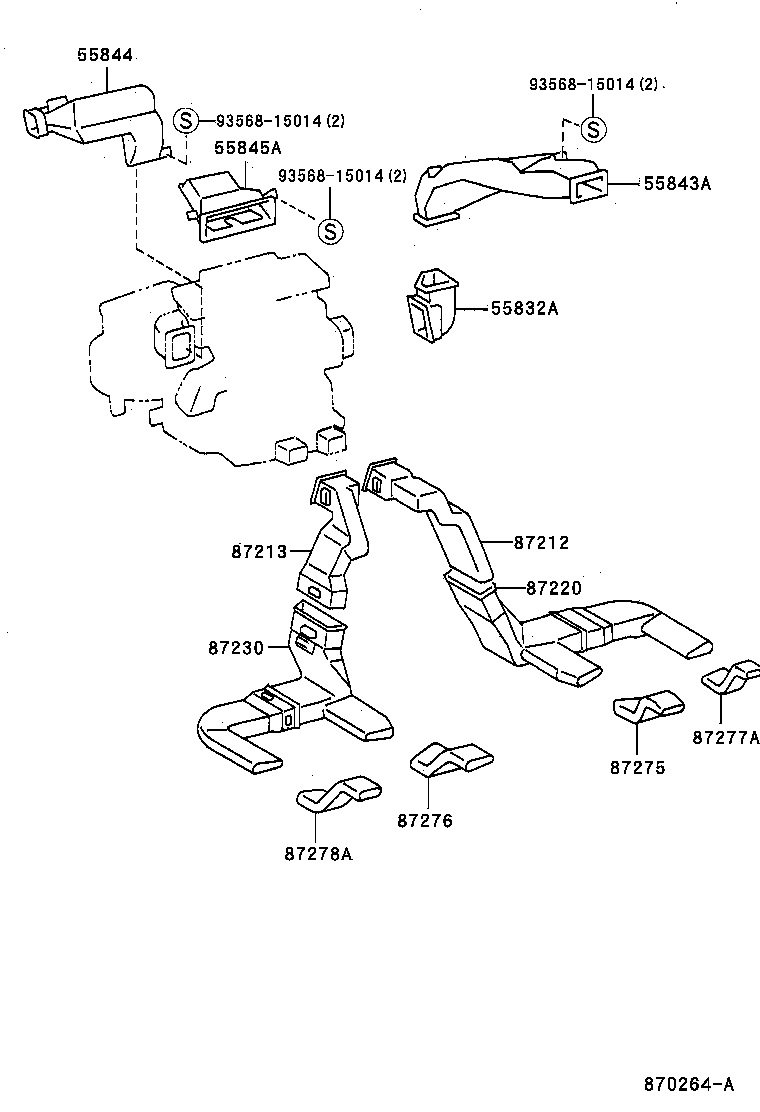

ILLUST NO. 2 OF 3(9608- )

Click highlighted areas on diagram

ｴｱ ﾀﾞｸﾄ

diagram 55832A 55843A 55844 55845A 87212 87213 87220 87230 87275 87276 87277A 87278A 9356815014 9356815014 9356815014
Part # Description Qty Price
55832A - CONNECTOR, INSTRUMENT PANEL REGISTER, NO.2
55832-20110

AT21#,CT21#,ST215

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-20270

AT21#,CT21#,ST215

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-20250

AT21#,CT21#,ST215

 1
55844-20350

AT21#,CT21#,ST215

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-20290

AT21#,CT21#,ST215

 1
87212 - DUCT, AIR, REAR NO.1
87212-20100

AT21#,CT21#,ST215

 1
87213 - DUCT, AIR, REAR NO.2
87213-20100

AT21#,CT21#,ST215

 1
87220 - DUCT ASSY, AIR
87220-20100

AT21#,CT21#,ST215

 1
87230 - DUCT ASSY, AIR, HEATER
87230-20070

AT21#,CT21#,ST215

 1
87275 - DUCT, FLOOR HEATER AIR, NO.1 RH
87275-20010

AT21#,CT21#,ST215

 1
87276 - DUCT, FLOOR HEATER AIR, NO.1 LH
87276-20010

AT21#,CT21#,ST215

 1
87277A - DUCT, FLOOR HEATER AIR, NO.2 RH
87277-20010

AT21#,CT21#,ST215

 1
87278A - DUCT, FLOOR HEATER AIR, NO.2 LH
87278-20010

AT21#,CT21#,ST215

 1
Common parts
93568-15014

ILLUST NO. 3 OF 3(9608-9704)AT211,212,CT21#,ST215 ; (9704- )

Click highlighted areas on diagram

ｾﾝｻ

diagram 88625C 88625C 88625C
Part # Description Qty Price
88625C - THERMISTOR, COOLER
88625-20490

AT21#,CT21#,ST215

ROOM(ﾅｲｷ)

 1
88625-20490

AT211,212,CT21#,ST215

ROOM(ﾅｲｷ)

 1
88625-32160

AT211,212,CT21#,ST215

SOLAR(ﾆﾂｼﾔ)

 1
88625-32160

AT21#,CT21#,ST215

SOLAR(ﾆﾂｼﾔ)

 1
88625-32170

AT211,212,CT21#,ST215

AMBIENT(ｶﾞｲｷ)

 1
88625C - THERMISTOR, COOLER
88625-20490

AT21#,CT21#,ST215

ROOM(ﾅｲｷ)

 1
88625-20490

AT211,212,CT21#,ST215

ROOM(ﾅｲｷ)

 1
88625-32160

AT211,212,CT21#,ST215

SOLAR(ﾆﾂｼﾔ)

 1
88625-32160

AT21#,CT21#,ST215

SOLAR(ﾆﾂｼﾔ)

 1
88625-32170

AT211,212,CT21#,ST215

AMBIENT(ｶﾞｲｷ)

 1
88625C - THERMISTOR, COOLER
88625-20490

AT21#,CT21#,ST215

ROOM(ﾅｲｷ)

 1
88625-20490

AT211,212,CT21#,ST215

ROOM(ﾅｲｷ)

 1
88625-32160

AT211,212,CT21#,ST215

SOLAR(ﾆﾂｼﾔ)

 1
88625-32160

AT21#,CT21#,ST215

SOLAR(ﾆﾂｼﾔ)

 1
88625-32170

AT211,212,CT21#,ST215

AMBIENT(ｶﾞｲｷ)

 1
