CT210-CEPMX (1996)
Toyota Carina Ff
(9608- )AT210,212,CT21#

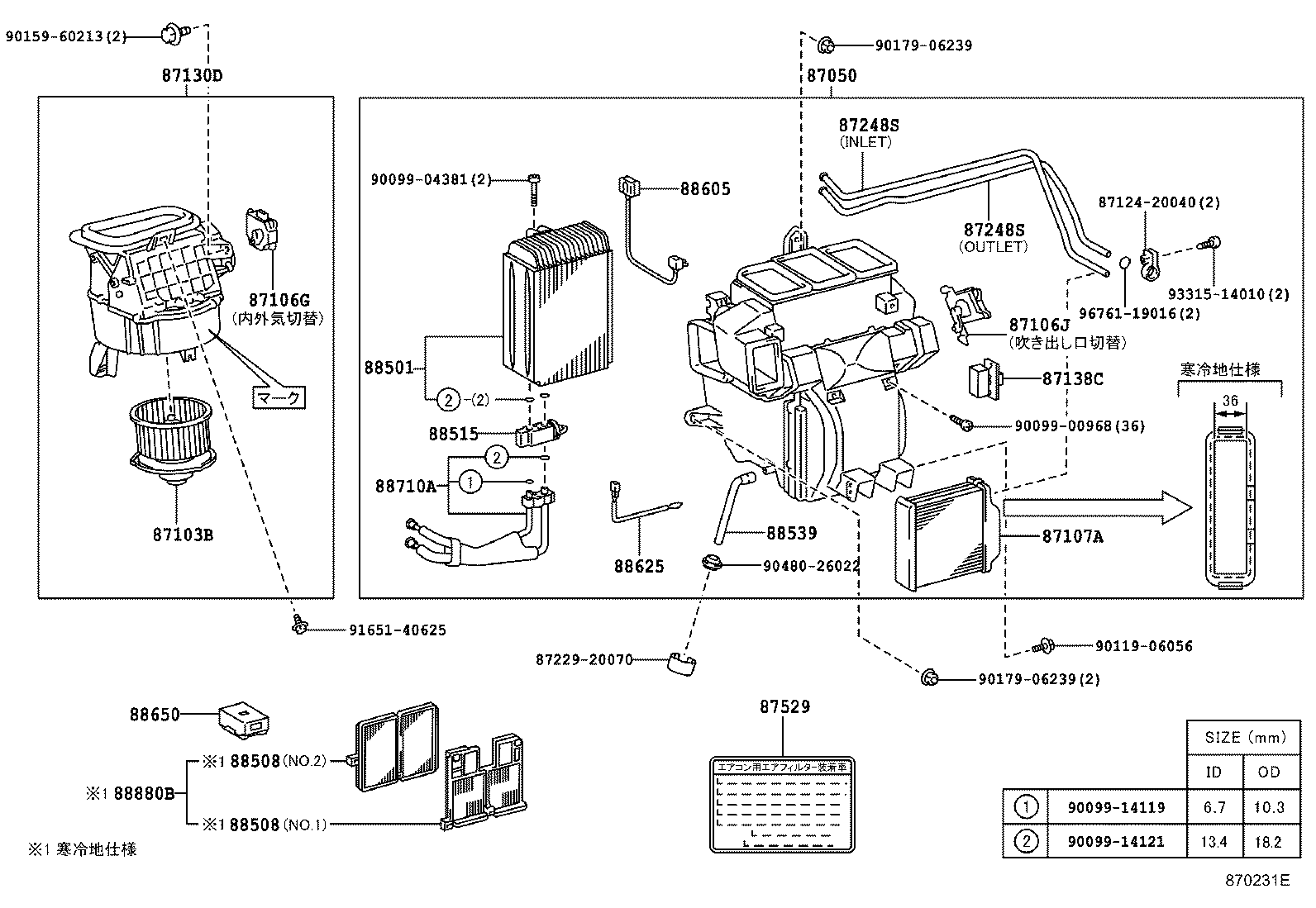

MANUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-20130 |
AT210,212,CT21# ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87050-21060 |
CT21# ｱﾘ(ｵ-ﾄｴｱｺﾝ) & ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87050-20020 |
AT210,212,CT21# |
1 | ||
| 87050-21050 |
CT21# ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-22100 |
AT21#,CT21#,ST215 |
1 | ||
| 87103-22120 |
AT21#,CT21#,ST215 |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-20360 |
AT21#,CT21#,ST215 |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-20220 |
AT21#,CT21#,ST215 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-20680 |
AT21#,CT21#,ST215 ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87107-20600 |
AT21#,CT21#,ST215 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-20530 |
AT21#,CT21#,ST215 ﾏｰｸ=410 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-20320 |
AT210,212,CT21# |
1 | ||
| 87248S - PIPE, FRONT HEATER RADIATOR WATER | ||||
| 87248-20360 |
AT21#,CT21#,ST215 ｲﾝﾚｯﾄ |
1 | ||
| 87248-20370 |
AT21#,CT21#,ST215 ｱｳﾄﾚｯﾄ |
1 | ||
| 87248S - PIPE, FRONT HEATER RADIATOR WATER | ||||
| 87248-20360 |
AT21#,CT21#,ST215 ｲﾝﾚｯﾄ |
1 | ||
| 87248-20370 |
AT21#,CT21#,ST215 ｱｳﾄﾚｯﾄ |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20291 |
AT21#,CT21#,ST215 |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20020 |
AT21#,CT21#,ST215 UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1) |
1 | ||
| 88508-20030 |
AT21#,CT21#,ST215 LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2) |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20020 |
AT21#,CT21#,ST215 UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1) |
1 | ||
| 88508-20030 |
AT21#,CT21#,ST215 LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
AT21#,CT21#,ST215 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-20270 |
AT21#,CT21#,ST215 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-2D470 |
AT21#,CT21#,ST215 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-3A090 |
AT21#,CT21#,ST215 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-2B490 |
CT21# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-20600 |
AT21#,CT21#,ST215 |
1 | ||
| 88880B - FILTER ASSY, CLEAN AIR | ||||
| 88880-20010 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 87124-20040 | ||||
| 87229-20070 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90119-06056 | ||||
| 90159-60213 | ||||
| 90179-06239 | ||||
| 90480-26022 | ||||
| 91651-40625 | ||||
| 93315-14010 | ||||
| 96761-19016 | ||||
(9608-9704)AT211,212,CT21#,ST215 ; (9704- )

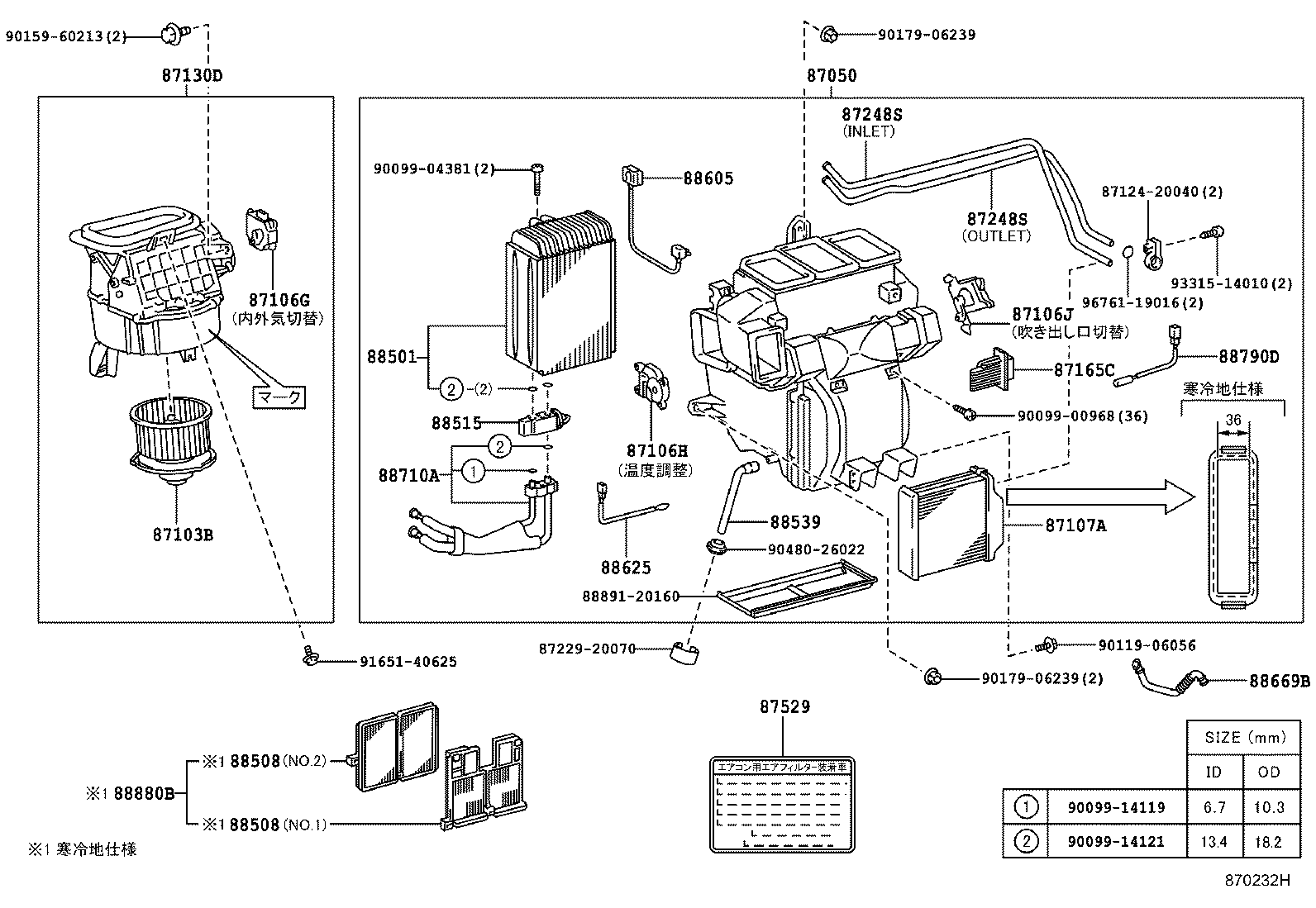

AUTO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-20130 |
AT210,212,CT21# ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87050-21060 |
CT21# ｱﾘ(ｵ-ﾄｴｱｺﾝ) & ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87050-20020 |
AT210,212,CT21# |
1 | ||
| 87050-21050 |
CT21# ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-22100 |
AT21#,CT21#,ST215 |
1 | ||
| 87103-22120 |
AT21#,CT21#,ST215 |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-20360 |
AT21#,CT21#,ST215 |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-20350 |
AT21#,CT21#,ST215 |
1 | ||
| 87106-20350 |
AT211,212,CT21#,ST215 |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-20220 |
AT21#,CT21#,ST215 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-20680 |
AT21#,CT21#,ST215 ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87107-20600 |
AT21#,CT21#,ST215 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-20530 |
AT21#,CT21#,ST215 ﾏｰｸ=410 |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-32010 |
AT21#,CT21#,ST215 |
1 | ||
| 87165-21010 |
AT211,212,CT21#,ST215 |
1 | ||
| 87165-21010 |
AT21#,CT21#,ST215 |
1 | ||
| 87248S - PIPE, FRONT HEATER RADIATOR WATER | ||||
| 87248-20360 |
AT21#,CT21#,ST215 ｲﾝﾚｯﾄ |
1 | ||
| 87248-20370 |
AT21#,CT21#,ST215 ｱｳﾄﾚｯﾄ |
1 | ||
| 87248S - PIPE, FRONT HEATER RADIATOR WATER | ||||
| 87248-20360 |
AT21#,CT21#,ST215 ｲﾝﾚｯﾄ |
1 | ||
| 87248-20370 |
AT21#,CT21#,ST215 ｱｳﾄﾚｯﾄ |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20291 |
AT21#,CT21#,ST215 |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20020 |
AT21#,CT21#,ST215 UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1) |
1 | ||
| 88508-20030 |
AT21#,CT21#,ST215 LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2) |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20020 |
AT21#,CT21#,ST215 UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1) |
1 | ||
| 88508-20030 |
AT21#,CT21#,ST215 LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
AT21#,CT21#,ST215 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-20270 |
AT21#,CT21#,ST215 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-2D470 |
AT21#,CT21#,ST215 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-3A090 |
AT21#,CT21#,ST215 |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-20150 |
AT21#,CT21#,ST215 |
1 | ||
| 88669-20150 |
AT211,212,CT21#,ST215 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-20600 |
AT21#,CT21#,ST215 |
1 | ||
| 88880B - FILTER ASSY, CLEAN AIR | ||||
| 88880-20010 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 87124-20040 | ||||
| 87229-20070 | ||||
| 88891-20160 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90119-06056 | ||||
| 90159-60213 | ||||
| 90179-06239 | ||||
| 90480-26022 | ||||
| 91651-40625 | ||||
| 93315-14010 | ||||
| 96761-19016 | ||||
