CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

Click highlighted areas on diagram

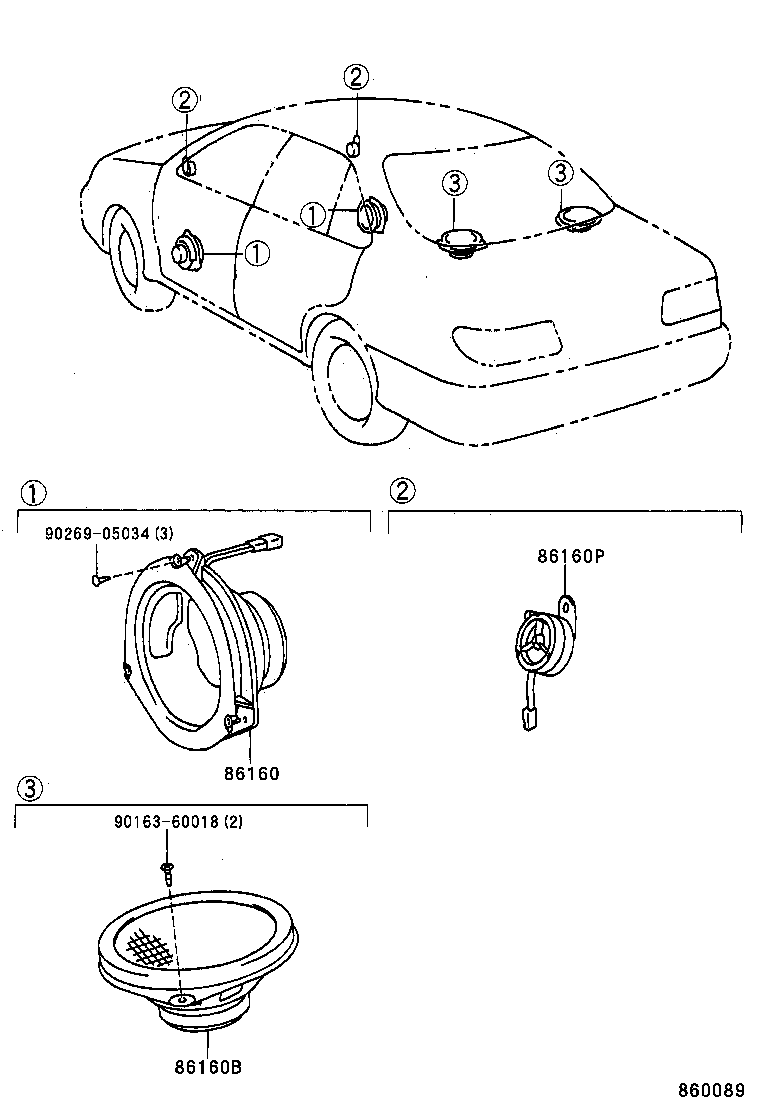

diagram 86160 86160B 86160P 9016360018 9026905034
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-20890

AT21#,CT21#,ST215

 2
86160B - SPEAKER ASSY, REAR
86160-2B360

AT212,CT210

ﾏｲﾛ-ﾄﾞ *(B)

 2
86160-2B360

AT21#,CT21#,ST215

 2
Common parts
90163-60018
90269-05034
