CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

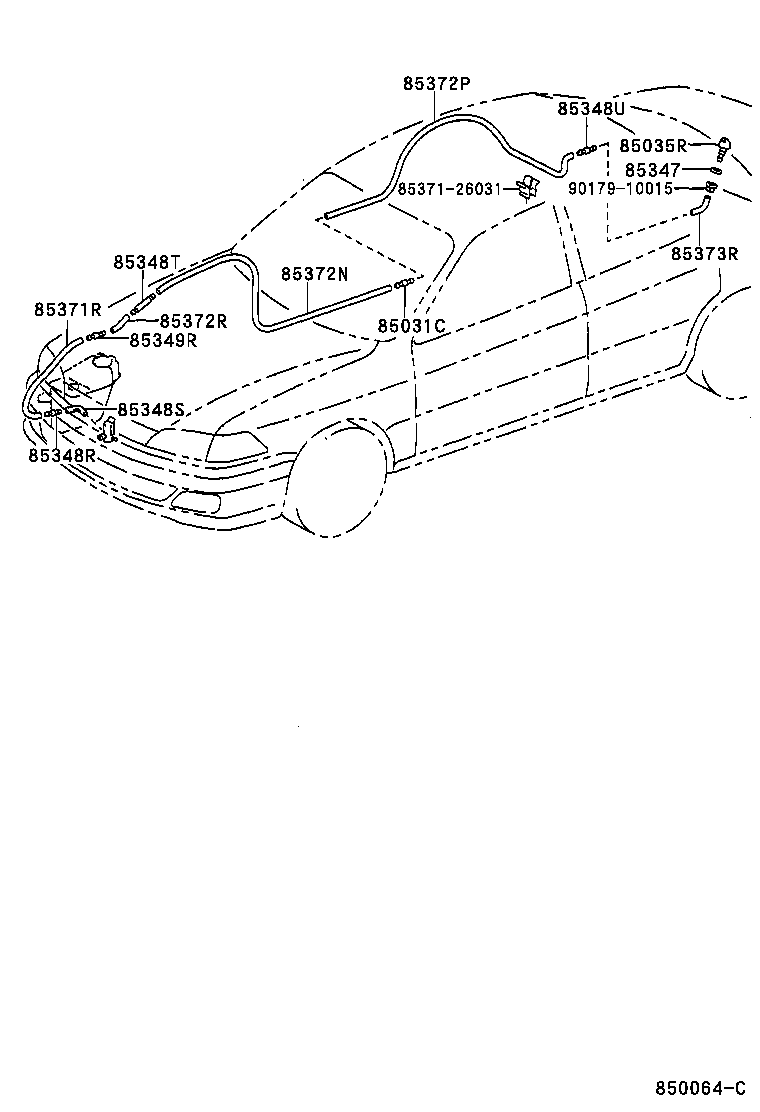

Click highlighted areas on diagram

diagram 85031C 85035R 85347 85348R 85348S 85348T 85348U 85349R 8537126031 85371R 85372N 85372P 85372R 85373R 9017910015
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85375-12520

AT21#,CT21#,ST215

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-22010

AT21#,CT21#,ST215

 1
85347 - PACKING, REAR WASHER
85347-12010

AT21#,CT21#,ST215

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

AT21#,CT21#,ST215

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-14481

AT21#,CT21#,ST215

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-32150

AT21#,CT21#,ST215

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

AT21#,CT21#,ST215

 1
85349R - JOINT, REAR WASHER HOSE, NO.5
85349-89122

AT21#,CT21#,ST215

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

AT21#,CT21#,ST215

*H,L=720

 1
90446-07001

AT21#,CT21#,ST215

*H,L=650

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33589

AT21#,CT21#,ST215

*H,L=1670

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33589

AT21#,CT21#,ST215

*H,L=2200

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33080

AT21#,CT21#,ST215

*H,L=30

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-59139

AT21#,CT21#,ST215

長さ=170

 1
Common parts
85371-26031
90179-10015
