CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

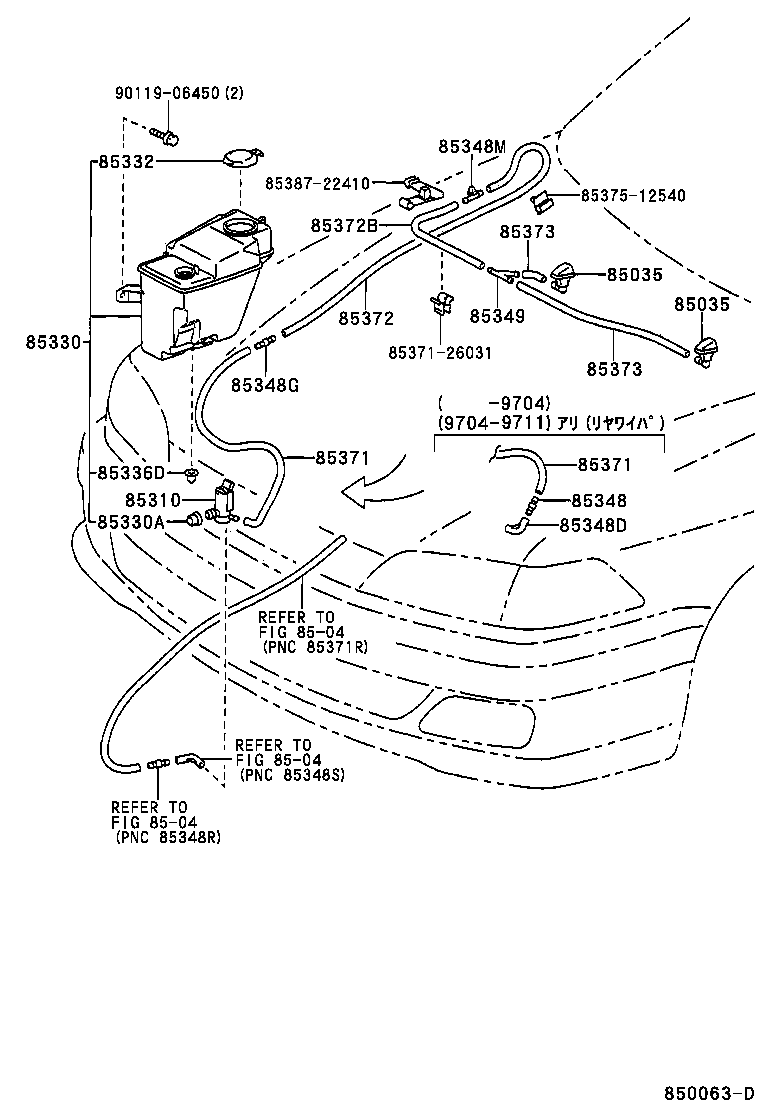

Click highlighted areas on diagram

diagram 85035 85035 8504 8504 8504 85310 85330 85330A 85332 85336D 85348 85348D 85348G 85348M 85349 85371 85371 8537126031 85372 85372B 85373 85373 8537512540 8538722410 9011906450
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-20030

AT21#,CT21#,ST215

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-20030

AT21#,CT21#,ST215

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-10290

AT21#,CT21#,ST215

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
85330-10280

AT21#,CT21#,ST215

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-20390

AT21#,CT21#,ST215

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AT21#,CT21#,ST215

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-12290

AT21#,CT21#,ST215

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-20340

AT21#,CT21#,ST215

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AT21#,CT21#,ST215

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
85349-89122

AT21#,CT21#,ST215

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

AT21#,CT21#,ST215

 1
85355-14481

AT21#,CT21#,ST215

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

AT21#,CT21#,ST215

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-17050

AT21#,CT21#,ST215

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AT21#,CT21#,ST215

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

AT21#,CT21#,ST215

*H,L=530

 1
90446-07001

AT21#,CT21#,ST215

*H,L=480

 1
90446-07001

AT21#,CT21#,ST215

*H,L=480,ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

AT21#,CT21#,ST215

*H,L=530

 1
90446-07001

AT21#,CT21#,ST215

*H,L=480

 1
90446-07001

AT21#,CT21#,ST215

*H,L=480,ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

AT21#,CT21#,ST215

*H,L=740

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33299

AT21#,CT21#,ST215

*H,L=460

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AT21#,CT21#,ST215

*H,L=60

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AT21#,CT21#,ST215

*H,L=60

 1
Common parts
85371-26031
85375-12540
85387-22410
90119-06450
Linked diagrams
8504
