CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

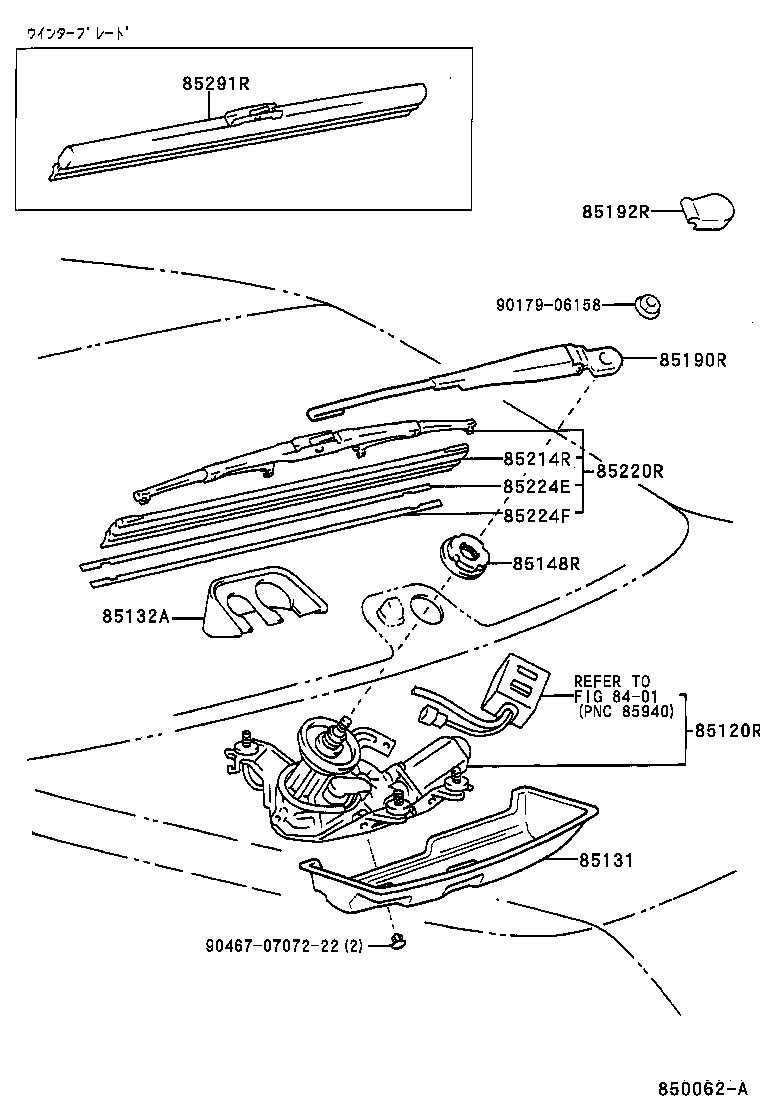

Click highlighted areas on diagram

diagram 8401 85120R 85131 85132A 85148R 85190R 85192R 85214R 85220R 85224E 85224F 85291R 9017906158 904670707222
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85130-20760

AT21#,CT21#,ST215

 1
85131 - COVER, REAR WIPER MOTOR
85131-20720

AT21#,CT21#,ST215

 1
85132A - COVER, REAR WIPER SHAFT
85132-20730E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
85132-20730B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
85148R - NUT, W/WASHER PACKING, REAR WIPER LINK PIVOT
85133-12770

AT21#,CT21#,ST215

 1
85190R - ARM ASSY, REAR WIPER
85241-20140

AT21#,CT21#,ST215

 1
85192R - COVER, REAR WIPER ARM
85192-13060

AT21#,CT21#,ST215

 1
85214R - RUBBER, REAR WIPER
85214-20420

AT21#,CT21#,ST215

 1
85220R - BLADE ASSY, REAR WIPER
85242-20090

AT21#,CT21#,ST215

 1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-1G010

AT21#,CT21#,ST215

 1
85224-20420

AT21#,CT21#,ST215

 1
85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2
85224-20420

AT21#,CT21#,ST215

 1
85224-1G010

AT21#,CT21#,ST215

 1
85291R - BLADE,REAR WIPER, WINTER
85291-60060

AT21#,CT21#,ST215

 1
Common parts
90179-06158
90467-0707222
Linked diagrams
8401
