CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

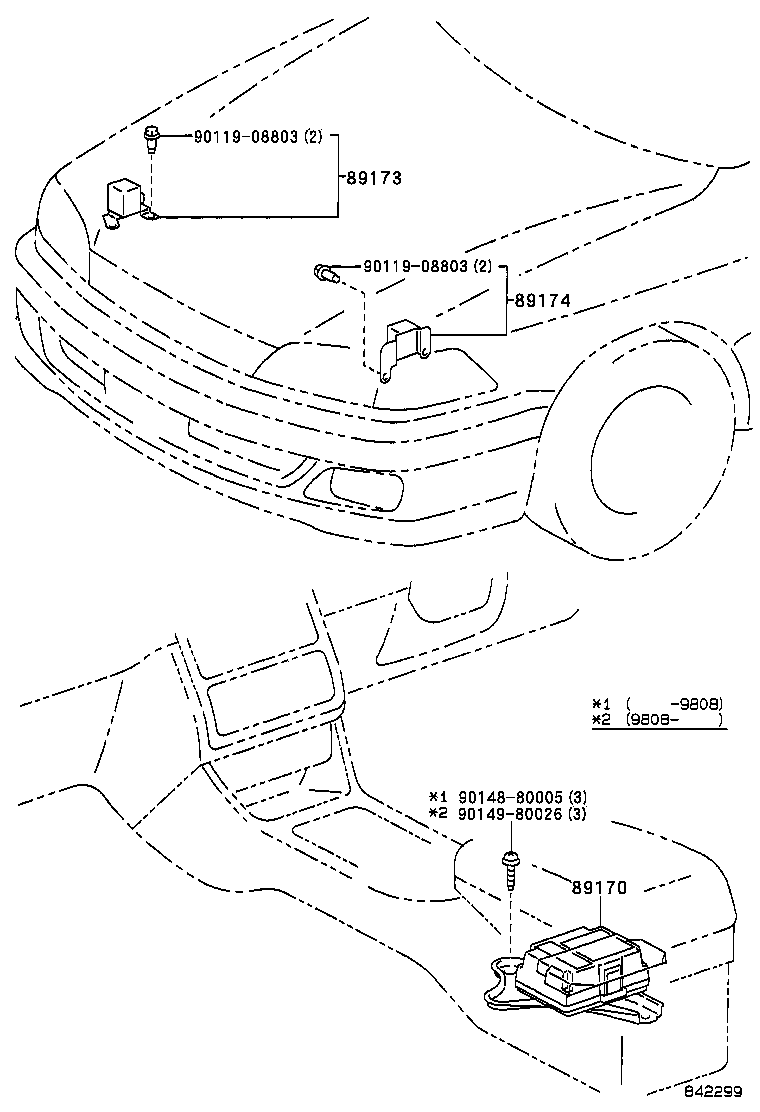

Click highlighted areas on diagram

diagram 89170 89173 89174 9011908803 9011908803 9014880005 9014980026
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-20052

AT21#,CT21#,ST215

 1
Common parts
90119-08803
90148-80005
90149-80026
