CT210-CEPMX (1996)
Toyota Carina Ff

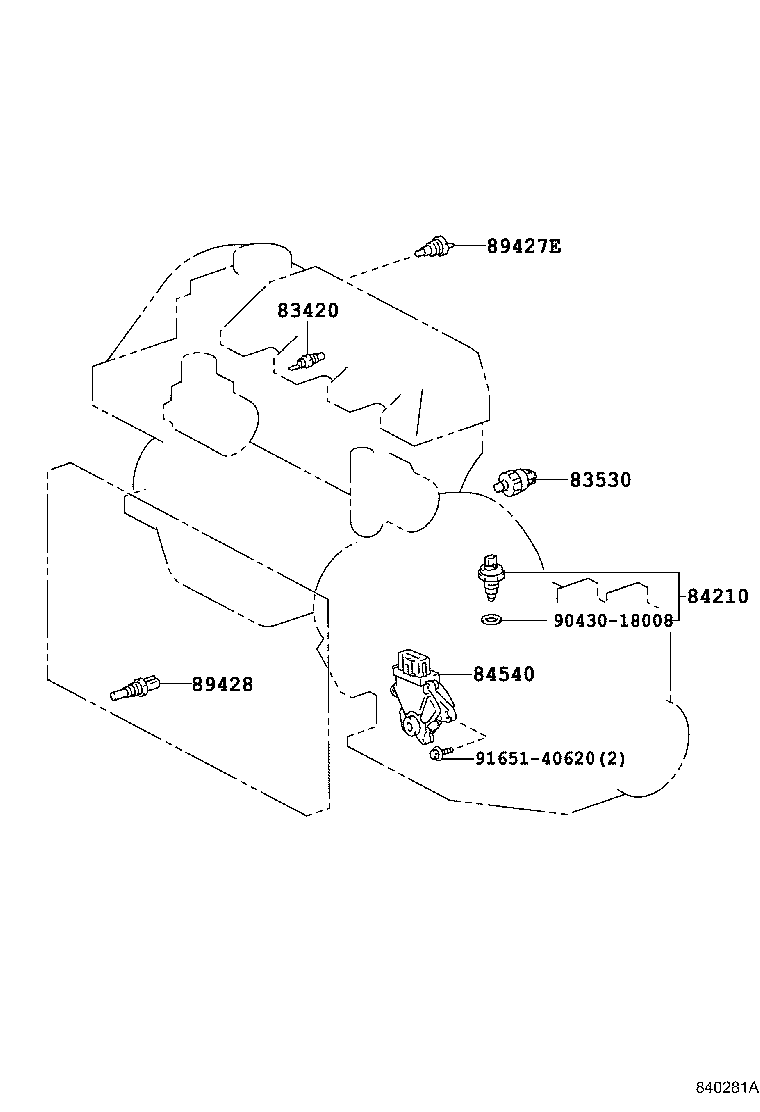

ILLUST NO. 1 OF 6(9608- )CT21#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CT21# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30100 |
CT21# |
1 | ||
| 83530-60010 |
CT21# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16050 |
AT212,CT210,211,216,ST215..4FC..TI |
1 | ||
| 89427E - SWITCH, TEMPERATURE (FOR HEATER IDLE UP) | ||||
| 89427-12051 |
CT21# |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20110 |
CT211,215;CT210,216..4FC |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
ILLUST NO. 2 OF 6(9608-9808)
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
4AGE,5AFE,7AFE,2CT,3CTE,3SFE..AT21#,CT21#,ST215 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-67010 |
2CT,3CTE..CT21# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
AT21#,CT21#,ST215 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
8 | ||
| 90982-09013 |
AT21#,CT21#,ST215 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
2 | ||
| 90982-09007 |
AT21#,CT21#,ST215 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09008 |
AT21#,CT21#,ST215 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
6 | ||
| 90982-09011 |
AT21#,CT21#,ST215 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
AT21#,CT21#,ST215 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
AT21#,CT21#,ST215 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
8 | ||
| 90982-09013 |
AT21#,CT21#,ST215 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
2 | ||
| 90982-09007 |
AT21#,CT21#,ST215 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09008 |
AT21#,CT21#,ST215 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
6 | ||
| 90982-09011 |
AT21#,CT21#,ST215 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
AT21#,CT21#,ST215 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
6 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
AT21#,CT21#,ST215 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-20190 |
CT21# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82720-20020 |
CT215;CT210..4FC |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-2B130 |
CT215;CT210..4FC |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-20040 |
AT21#,CT21#,ST215 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-32100 |
CT21# |
1 | ||
| 83390-20180 |
CT21# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT21#,CT21#,ST215 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AT21#,CT21#,ST215 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02009 |
CT215;CT210..4FC |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02009 |
CT215;CT210..4FC |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02009 |
CT21# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-04003 |
CT21# |
1 | ||
| 85927C - RELAY, COOLING FAN, NO.4 | ||||
| 90987-02009 |
CT215;CT210..4FC |
1 | ||
| 85927D - RELAY, COOLING FAN, NO.5 | ||||
| 90987-02009 |
CT215;CT210..4FC |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-20200 |
CT21# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AT21#,CT21#,ST215 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02009 |
CT21# |
1 | ||
| 89421D - SENSOR, TURBO PRESSURE | ||||
| 89420-20260 |
CT21# |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-35010 |
CT21# |
1 | ||
| Common parts | ||||
| 90119-06157 | ||||
| 90430-12221 | ||||
| 91635-60616 | ||||
| 91651-B0614 | ||||
| 91651-B0620 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||
ILLUST NO. 3 OF 6(9608- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AT21#,CT21#,ST215 |
1 | ||
| 81980-12110 |
AT21#,CT21#,ST215 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
AT21#,CT21#,ST215 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
8 | ||
| 90982-09013 |
AT21#,CT21#,ST215 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
2 | ||
| 90982-09007 |
AT21#,CT21#,ST215 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09008 |
AT21#,CT21#,ST215 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
6 | ||
| 90982-09011 |
AT21#,CT21#,ST215 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
AT21#,CT21#,ST215 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
6 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82685-20100 |
AT21#,CT21#,ST215 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-32052 |
AT212,CT21# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82641-20190 |
AT21#,CT21#,ST215 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-20040 |
AT21#,CT21#,ST215 |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-20030 |
AT21#,CT21#,ST215 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AT21#,CT21#,ST215 |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
AT21#,CT21#,ST215 |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
AT21#,CT21#,ST215 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
AT21#,CT21#,ST215 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AT21#,CT21#,ST215 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT21#,CT21#,ST215 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87011 |
AT21#,CT21#,ST215 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87011,SIEMENS |
1 | ||
| 90987-02012 |
AT21#,CT21#,ST215 ﾋﾝﾊﾞﾝｺｸｲﾝ ｻﾝｼﾖｳ,TOYOTA |
1 | ||
| 85912B - RELAY, DEFOGGER(FOR FRONT WINDOW) | ||||
| 90987-02012 |
AT21#,CT21#,ST215 ﾋﾝﾊﾞﾝｺｸｲﾝ ｻﾝｼﾖｳ,TOYOTA |
1 | ||
| 90080-87011 |
AT21#,CT21#,ST215 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87011,SIEMENS |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02012 |
AT21#,CT21#,ST215 ﾋﾝﾊﾞﾝｺｸｲﾝ ｻﾝｼﾖｳ,TOYOTA |
1 | ||
| 90080-87011 |
AT21#,CT21#,ST215 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87011,SIEMENS |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
AT21#,CT21#,ST215 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
AT21#,CT21#,ST215 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20410 |
AT212,CT21#,ST215..TI |
1 | ||
| 89551 - COMPUTER, EMISSION CONTROL | ||||
| 89551-20130 |
CT21# |
1 | ||
| 89667B - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-20380 |
CT21# |
1 | ||
| 89668B - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-20340 |
CT21# |
1 | ||
| Common parts | ||||
| 90159-60469 | ||||
| 90179-06026 | ||||
| 91651-B0614 | ||||
| 93315-14012 | ||||
| 93319-15010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8601 | ||||

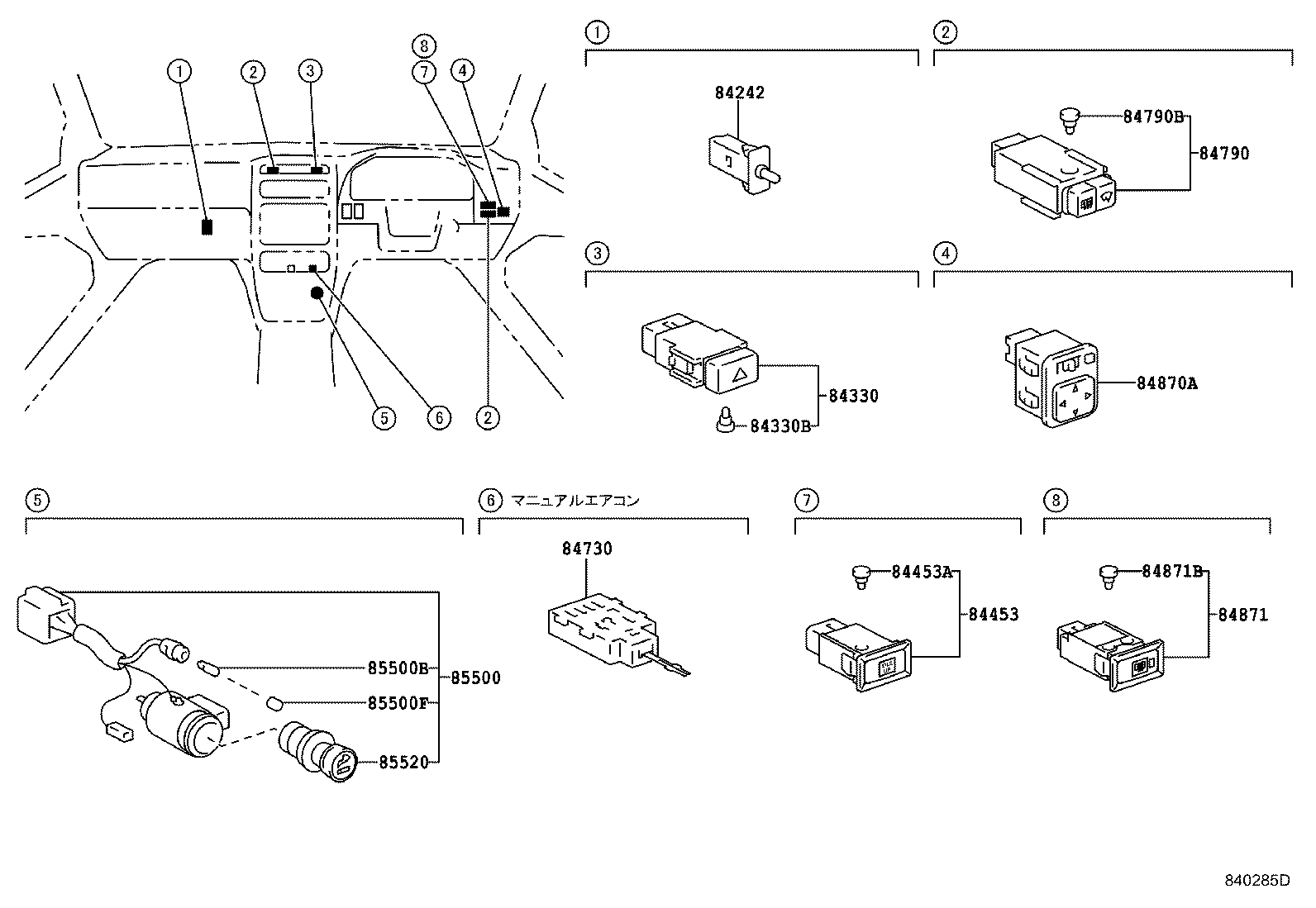

ILLUST NO. 4 OF 6(9608- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20350 |
AT21#,CT21#,ST215 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
AT21#,CT21#,ST215 14V 0.91W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20270 |
AT210,212,CT21# ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-0W010 |
AT21#,CT21#,ST215 |
1 | ||
| 84790-20420 |
AT21#,CT21#,ST215 ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10560 |
AT21#,CT21#,ST215 12V 0.7W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16040 |
AT21#,CT21#,ST215 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ｼｷ ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20280 |
AT21#,CT21#,ST215 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AT21#,CT21#,ST215 14V 1.4W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
AT21#,CT21#,ST215 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
AT21#,CT21#,ST215 |
1 | ||
ILLUST NO. 5 OF 6(9608- )
ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
AT21#,CT21#,ST215 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12390 |
AT21#,CT21#,ST215 ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾌｵｸﾞ ｽｲﾂﾁ) |
1 | ||
| 84140-12380 |
AT212,CT21#,ST215..TI ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84140-20570 |
AT212,CT21#,ST215..TI |
1 | ||
| 84140-20580 |
ST215..SI;AT21#,CT21# ｱﾘ(ﾌｵｸﾞ ｽｲﾂﾁ) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-20050 |
AT21#,CT21#,ST215 ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84306-20090 |
AT21#,CT21#,ST215 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2L450 |
AT212,CT21# ｱﾘ(ﾌｵｸﾞ ｽｲﾂﾁ) |
1 | ||
| 84310-2L430 |
AT212,CT21# |
1 | ||
| 84310-2L590 |
AT212,CT21# ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84310-2L600 |
AT212,CT21# ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾌｵｸﾞ ｽｲﾂﾁ) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
AT21#,CT21#,ST215 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2G360 |
AT21#,CT21#,ST215 |
1 | ||
| 84652-2G440 |
AT21#,CT21#,ST215 ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-12020 |
AT21#,CT210,211,216,ST215..4FC |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

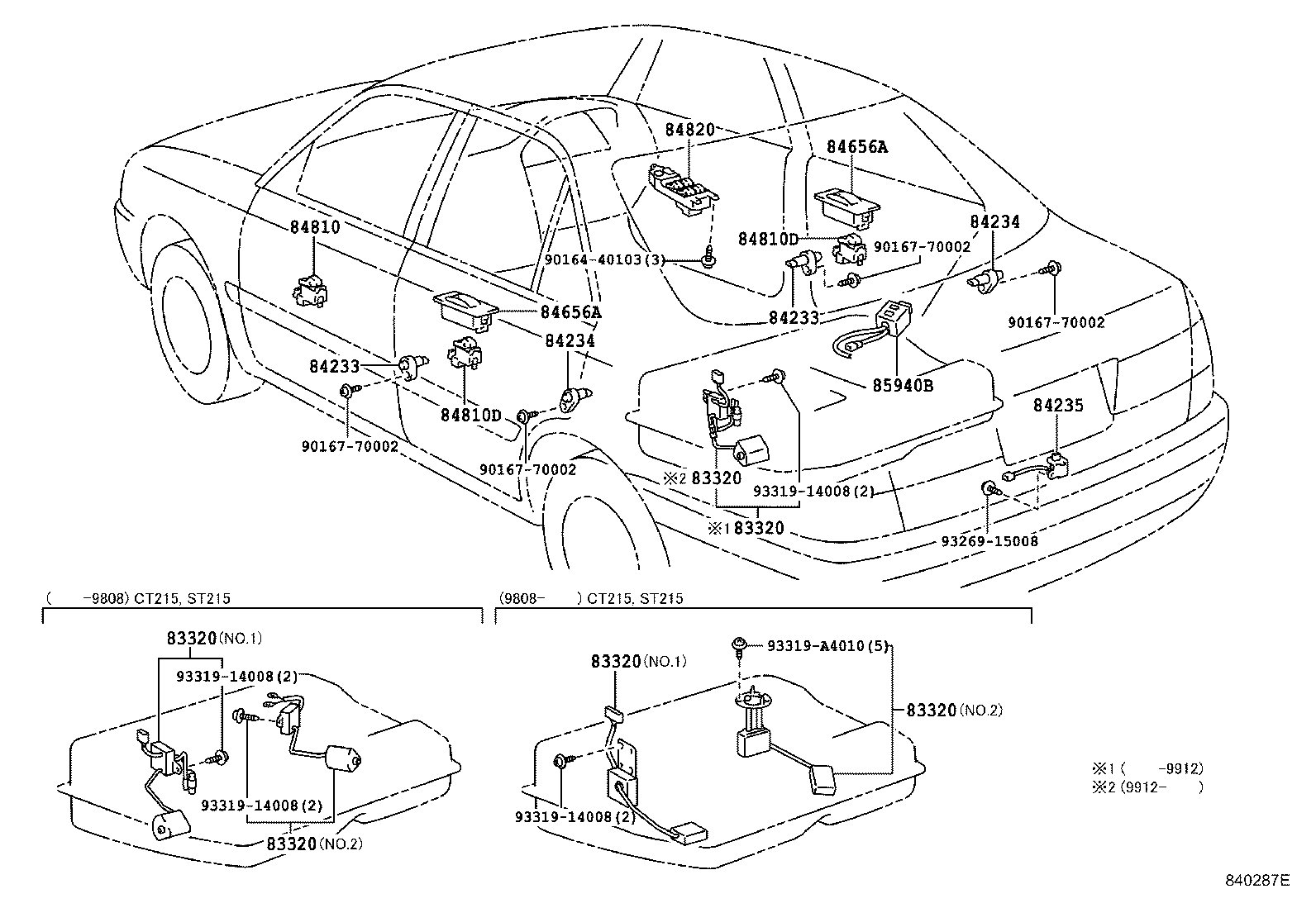

ILLUST NO. 6 OF 6(9608- )
ﾙ-ﾌ,ﾄﾞｱ,ｼ-ﾄ & ﾗﾂｹ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80242 |
CT210,211 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80242 |
CT210,211 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80242 |
CT210,211 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80242 |
CT210,211 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80242 |
CT210,211 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80242 |
CT210,211 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12160 |
AT21#,CT21#,ST215 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12160 |
AT21#,CT21#,ST215 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12160 |
AT21#,CT21#,ST215 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12160 |
AT21#,CT21#,ST215 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-20380 |
AT21#,CT21#,ST215 |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-20040B1 |
AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
2 | ||
| 84656-20040E1 |
AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-20040B1 |
AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
2 | ||
| 84656-20040E1 |
AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
AT21#,CT21#,ST215 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
AT21#,CT21#,ST215 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
AT21#,CT21#,ST215 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-20510 |
AT21#,CT21#,ST215 |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-20200 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90167-70002 | ||||
| 93269-15008 | ||||
| 93319-14008 | ||||
| 93319-A4010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
