CT210-CEPMX (1996)
Toyota Carina Ff

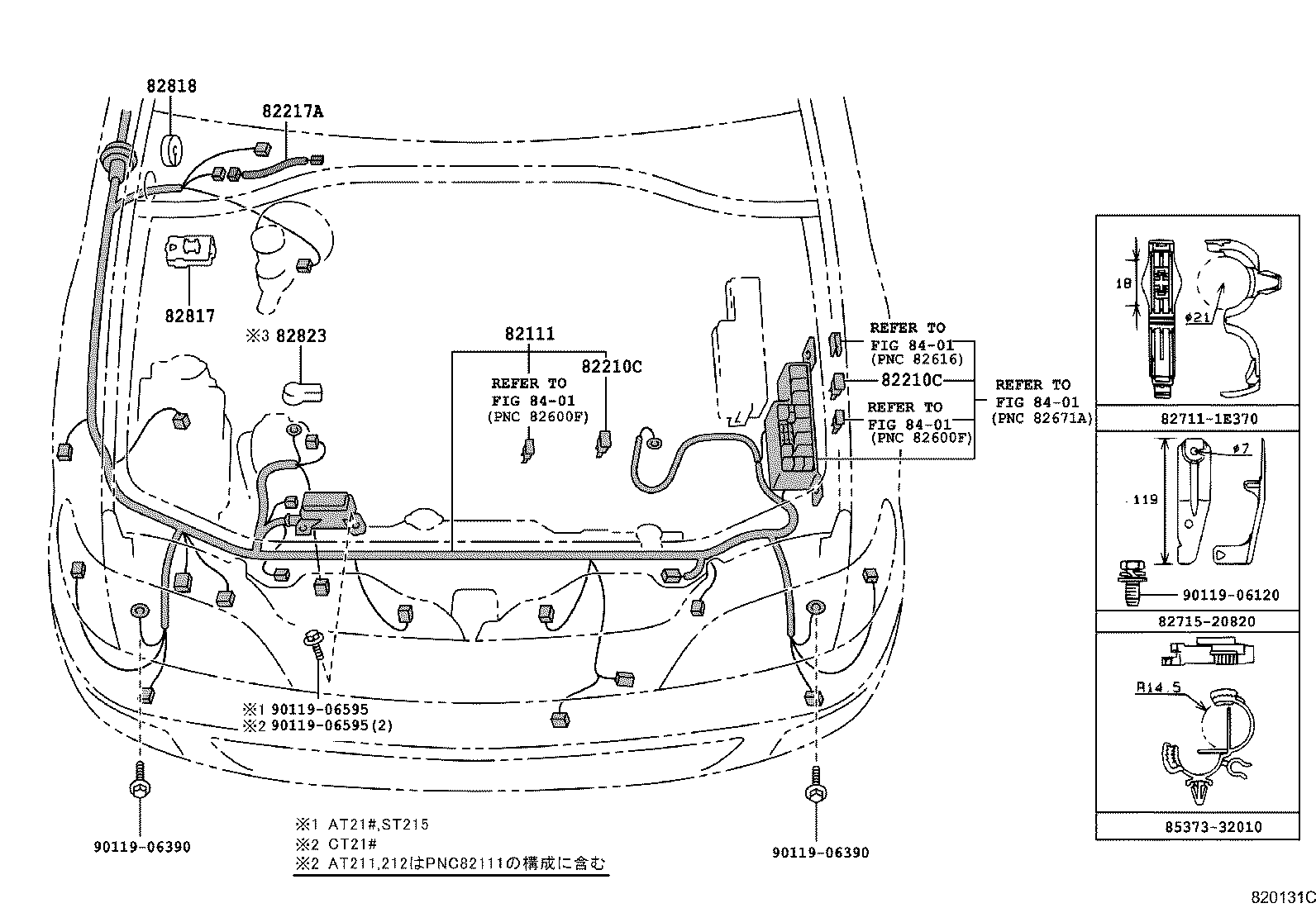

ILLUST NO. 1 OF 9(9608- )
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2L410 |
CT215;CT210..4FC |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08284 |
AT21#,CT21#,ST215 40A,ﾒｽ端子,緑 |
5 | ||
| 90982-08246 |
AT21#,CT21#,ST215 100A,ｵｽ端子,青 |
1 | ||
| 90982-08285 |
AT21#,CT210,215,ST215 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08283 |
AT21#,CT21#,ST215 30A,ﾒｽ端子,桃 |
3 | ||
| 90982-08202 |
AT21#,CT21#,ST215 60A,ｵｽ端子,黄 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08284 |
AT21#,CT21#,ST215 40A,ﾒｽ端子,緑 |
5 | ||
| 90982-08246 |
AT21#,CT21#,ST215 100A,ｵｽ端子,青 |
1 | ||
| 90982-08285 |
AT21#,CT210,215,ST215 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08283 |
AT21#,CT21#,ST215 30A,ﾒｽ端子,桃 |
3 | ||
| 90982-08202 |
AT21#,CT21#,ST215 60A,ｵｽ端子,黄 |
1 | ||
| 82217A - WIRE, FRONT WINDOW DEFOGGER | ||||
| 82217-20080 |
AT21#,CT21#,ST215 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D090 |
AT21#,CT21#,ST215 |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82818-20090 |
AT21#,CT21#,ST215 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
AT210,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 82711-1E370 | ||||
| 82715-20820 | ||||
| 85373-32010 | ||||
| 90119-06120 | ||||
| 90119-06390 | ||||
| 90119-06595 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 9(9608-9808)CT21#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-2M070 |
CT210..4FC |
1 | ||
| 82121-2M071 |
CT210..4FC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-20280 |
CT21# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-20170 |
CT21# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08284 |
AT21#,CT21#,ST215 40A,ﾒｽ端子,緑 |
5 | ||
| 90982-08246 |
AT21#,CT21#,ST215 100A,ｵｽ端子,青 |
1 | ||
| 90982-08285 |
AT21#,CT210,215,ST215 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08283 |
AT21#,CT21#,ST215 30A,ﾒｽ端子,桃 |
3 | ||
| 90982-08202 |
AT21#,CT21#,ST215 60A,ｵｽ端子,黄 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08284 |
AT21#,CT21#,ST215 40A,ﾒｽ端子,緑 |
5 | ||
| 90982-08246 |
AT21#,CT21#,ST215 100A,ｵｽ端子,青 |
1 | ||
| 90982-08285 |
AT21#,CT210,215,ST215 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08283 |
AT21#,CT21#,ST215 30A,ﾒｽ端子,桃 |
3 | ||
| 90982-08202 |
AT21#,CT21#,ST215 60A,ｵｽ端子,黄 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08284 |
AT21#,CT21#,ST215 40A,ﾒｽ端子,緑 |
5 | ||
| 90982-08246 |
AT21#,CT21#,ST215 100A,ｵｽ端子,青 |
1 | ||
| 90982-08285 |
AT21#,CT210,215,ST215 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08283 |
AT21#,CT21#,ST215 30A,ﾒｽ端子,桃 |
3 | ||
| 90982-08202 |
AT21#,CT21#,ST215 60A,ｵｽ端子,黄 |
1 | ||
| Common parts | ||||
| 82711-10070 | ||||
| 82711-24420 | ||||
| 82715-20430 | ||||
| 82715-20810 | ||||
| 82715-20830 | ||||
| 82715-20880 | ||||
| 82715-34330 | ||||
| 82715-42060 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06311 | ||||
| 90119-06390 | ||||
| 91621-60610 | ||||
| 91651-B0614 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 3 OF 9(9608- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-2P280 |
CT210..4FC |
1 | ||
| 82131-2P450 |
CT210..4FC ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82131-2P451 |
CT210..4FC ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82131-2P281 |
CT210..4FC |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08284 |
AT21#,CT21#,ST215 40A,ﾒｽ端子,緑 |
5 | ||
| 90982-08246 |
AT21#,CT21#,ST215 100A,ｵｽ端子,青 |
1 | ||
| 90982-08285 |
AT21#,CT210,215,ST215 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08283 |
AT21#,CT21#,ST215 30A,ﾒｽ端子,桃 |
3 | ||
| 90982-08202 |
AT21#,CT21#,ST215 60A,ｵｽ端子,黄 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08284 |
AT21#,CT21#,ST215 40A,ﾒｽ端子,緑 |
5 | ||
| 90982-08246 |
AT21#,CT21#,ST215 100A,ｵｽ端子,青 |
1 | ||
| 90982-08285 |
AT21#,CT210,215,ST215 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08283 |
AT21#,CT21#,ST215 30A,ﾒｽ端子,桃 |
3 | ||
| 90982-08202 |
AT21#,CT21#,ST215 60A,ｵｽ端子,黄 |
1 | ||
| Common parts | ||||
| 61824-20100 | ||||
| 82711-1E260 | ||||
| 82711-1E350 | ||||
| 82711-2D090 | ||||
| 82715-21130 | ||||
| 85373-32010 | ||||
| 90119-08375 | ||||
| 90159-70003 | ||||
| 90159-70004 | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||
ILLUST NO. 4 OF 9(9608- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-2G590 |
AT212,CT21# |
1 | ||
| 82141-2G620 |
AT212,CT21# ｱﾘ(ｵ-ﾄｴｱｺﾝ & ﾌﾛﾝﾄ & ﾘﾔ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 82141-2G620 |
AT212,CT210 ﾏｲﾛ-ﾄﾞ *(B) |
1 | ||
| Common parts | ||||
| 61824-20100 | ||||
| 82711-1E370 | ||||
| 90159-70003 | ||||

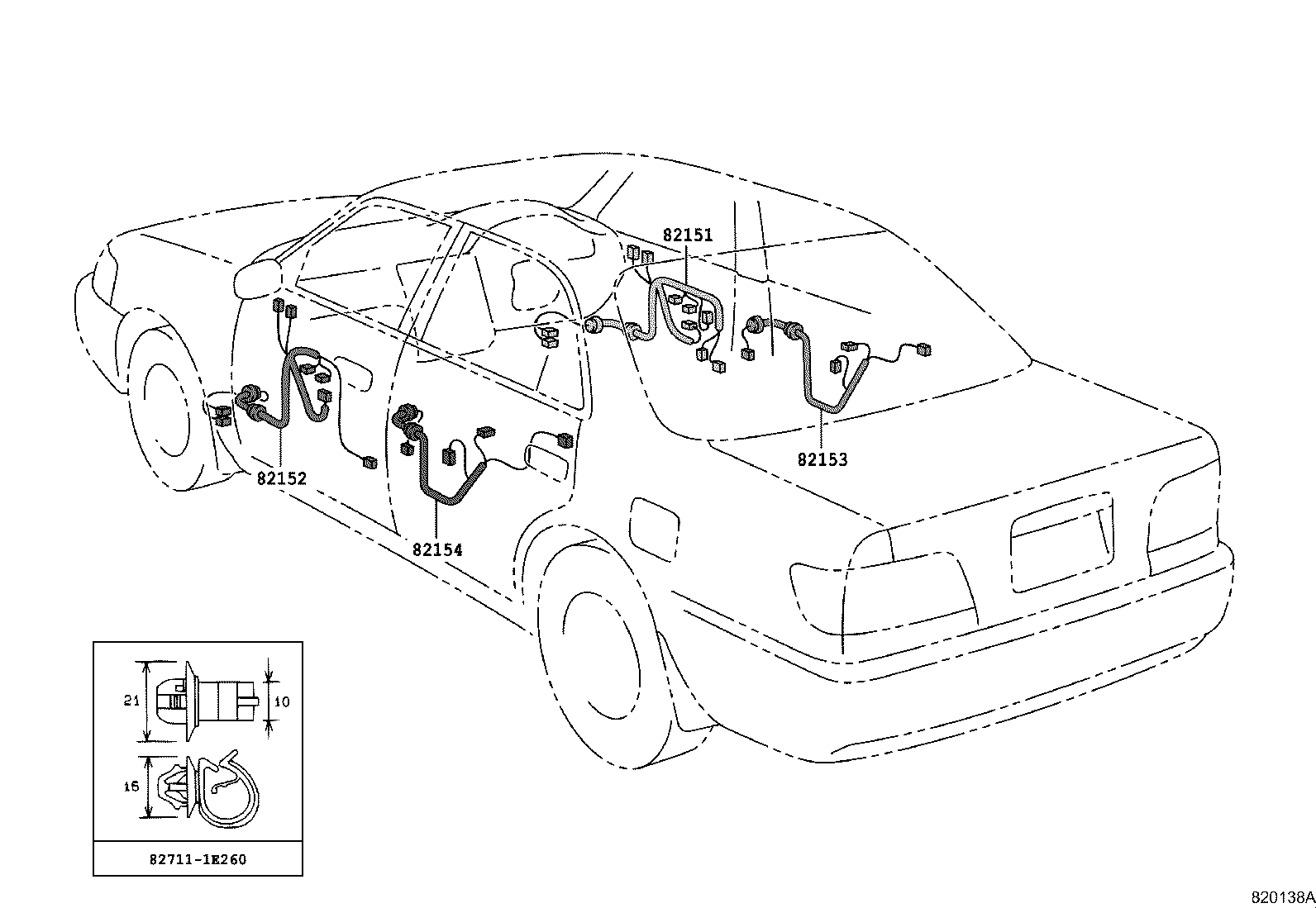

ILLUST NO. 5 OF 9(9608- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-2G390 |
AT21#,CT21#,ST215 |
1 | ||
| 82151-2G391 |
AT21#,CT21#,ST215 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-2G190 |
AT21#,CT21#,ST215 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-20450 |
AT21#,CT21#,ST215 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-20450 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 82711-1E260 | ||||

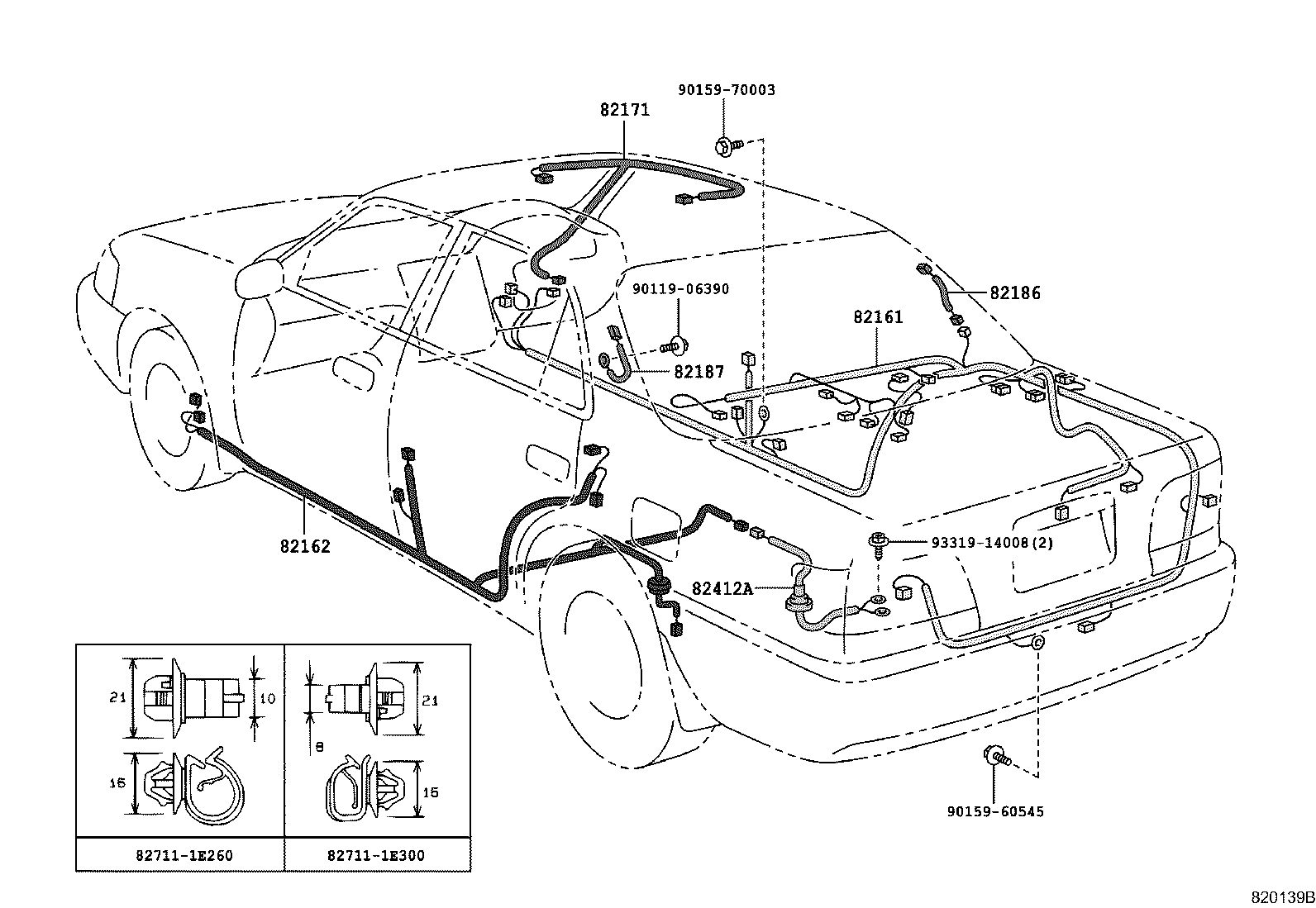

ILLUST NO. 6 OF 9(9608- )
ﾌﾛｱ & ﾙ-ﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-2L800 |
AT21#,CT21#,ST215 ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82161-2L780 |
AT210,212,CT21# |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-20520 |
AT21#,CT210 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-2B100 |
AT212,CT21#,ST215..TI |
1 | ||
| 82171-2B090 |
AT212,CT21#,ST215 ｱﾘ(ﾏﾂﾌﾟ ﾗﾝﾌﾟ) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-20210 |
AT210,212,CT21# |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-20270 |
AT210,212,CT21# |
1 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 82711-1E300 | ||||
| 90119-06390 | ||||
| 90159-60545 | ||||
| 90159-70003 | ||||
| 93319-14008 | ||||

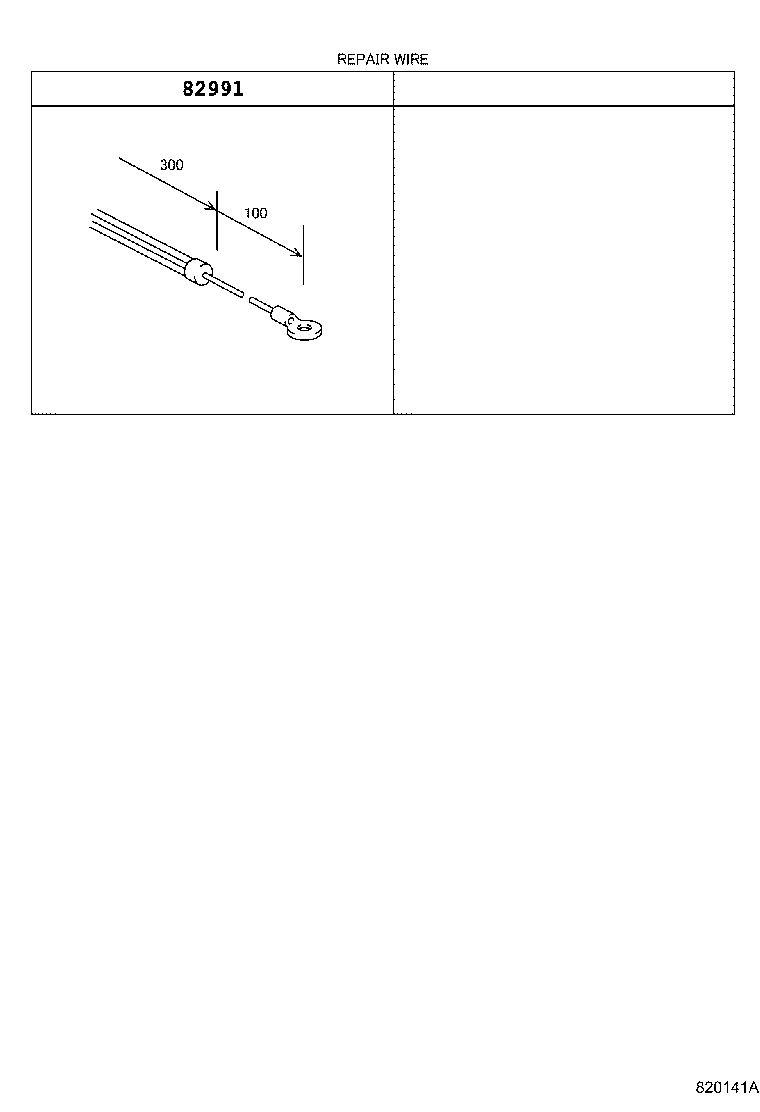

ILLUST NO. 8 OF 9(9608- )
ﾘﾍﾟｱ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20110 |
AT21#,CT21#,ST215 |
1 | ||

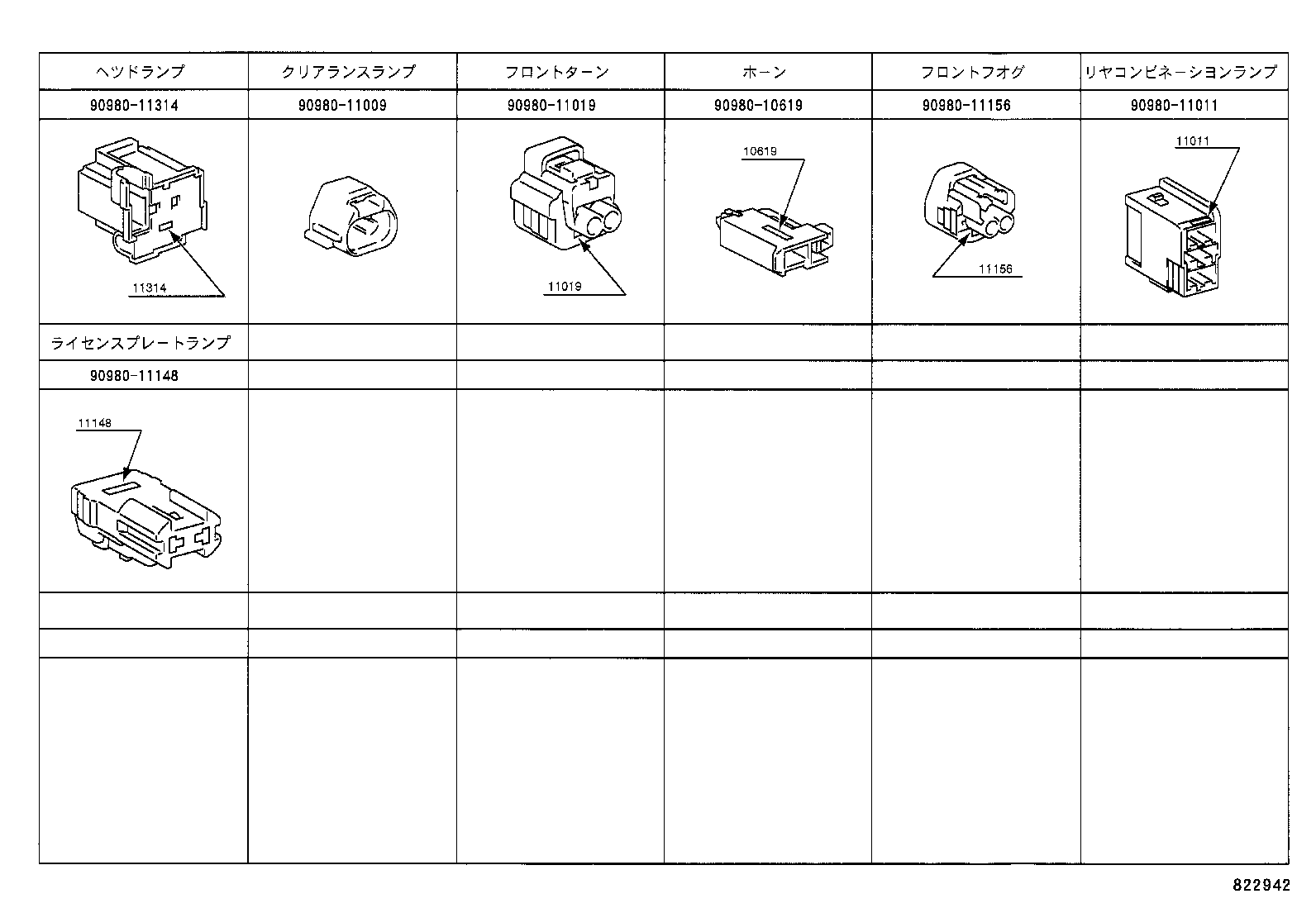

ILLUST NO. 9 OF 9(9608- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-11009 | ||||
| 90980-11011 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11314 | ||||
