CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

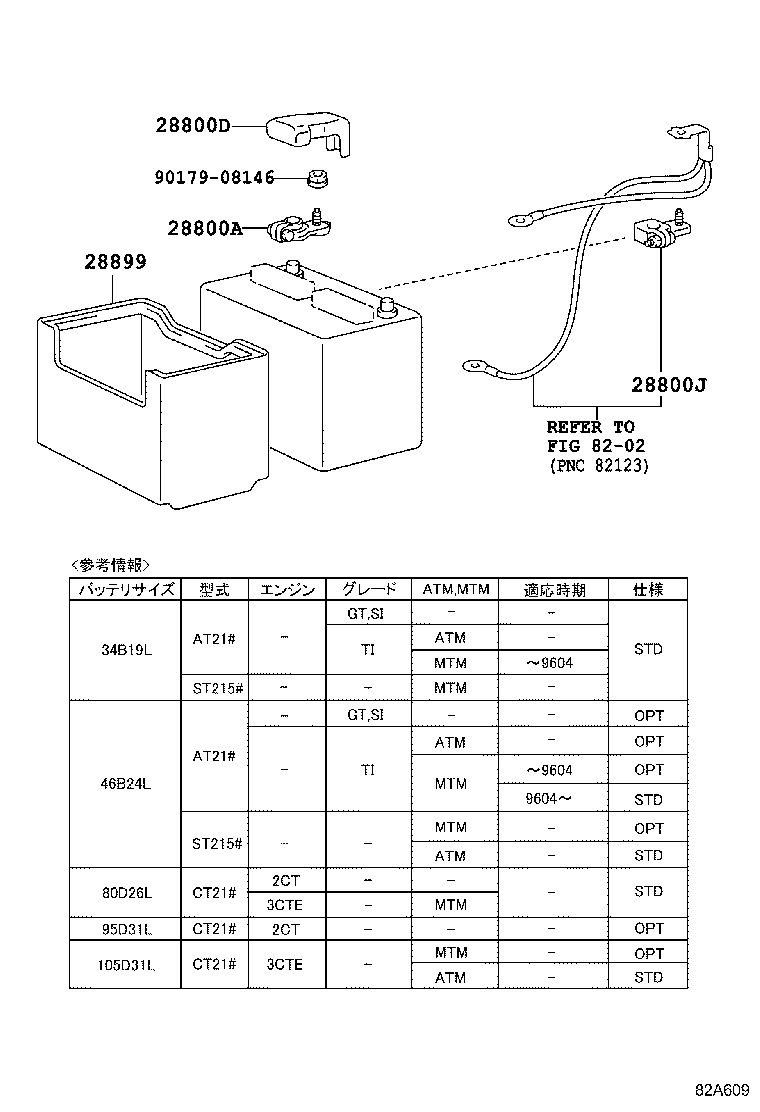

Click highlighted areas on diagram

diagram 28800A 28800D 28800J 28899 8202 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

2CT,3CTE..CT21#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-20350

4AGE,5AFE,7AFE,2CT,3CTE,3SFE..AT21#,CT21#,ST215

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06026

2CT,3CTE..CT21#

 1
28899 - INSULATOR, BATTERY
28899-54050

2CT,3CTE..CT21#

ｱﾘ(ﾊﾞﾂﾃﾘ=95D31L)

 1
28899-64110

2CT..CT210,215;3CTE..CT211..5F

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26L)

 1
Common parts
90179-08146
Linked diagrams
8202
