CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

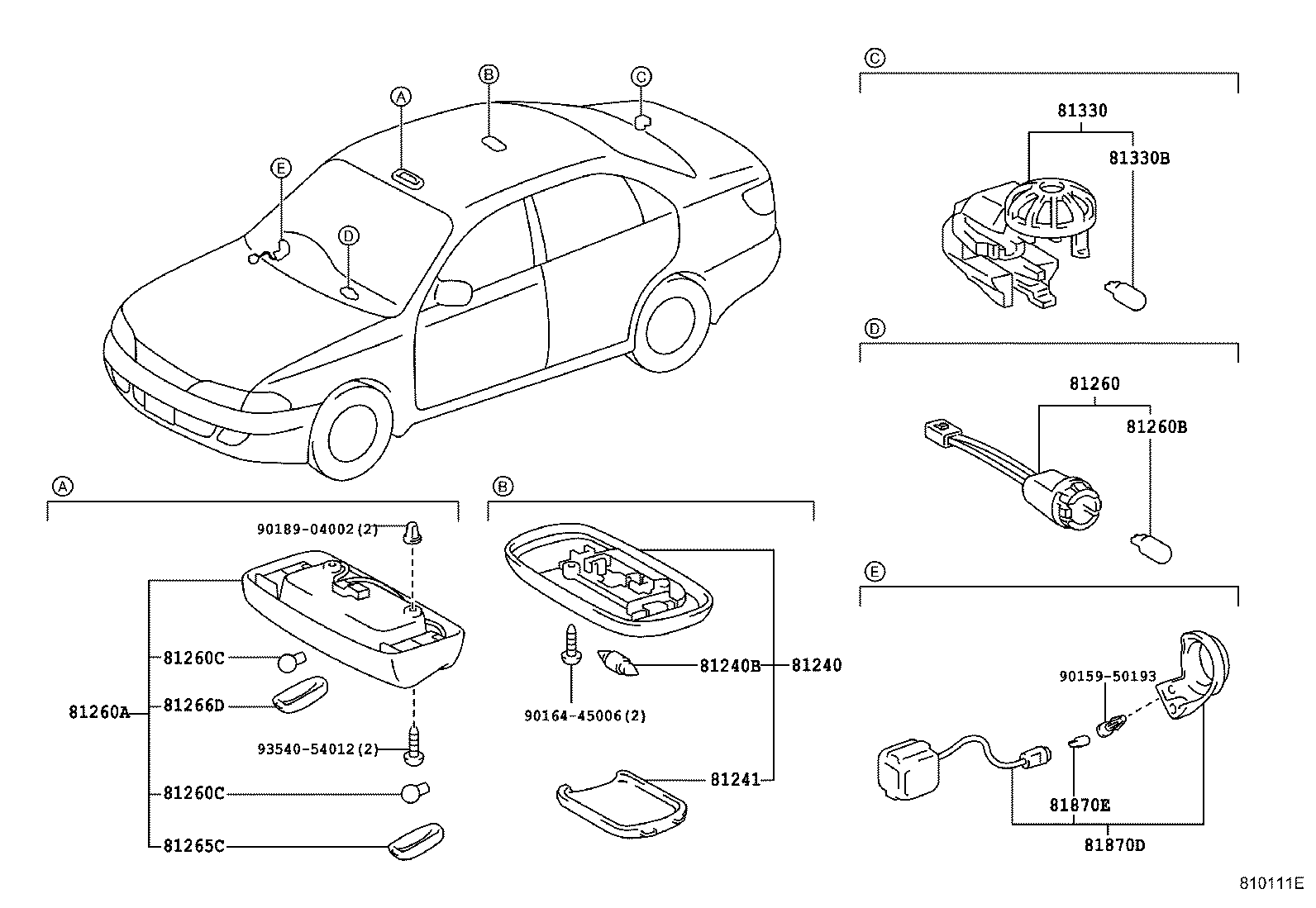

Click highlighted areas on diagram

diagram 81240 81240B 81241 81260 81260A 81260B 81260C 81260C 81265C 81266D 81330 81330B 81870D 81870E 9015950193 9016445006 9018904002 9354054012
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-12060B3

AT21#,CT21#,ST215

LT.GRAY,TRIM1#

 1
81240-12060E1

AT211,212,CT21#,ST215

LT.ANTELOPE,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

AT21#,CT21#,ST215

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

AT21#,CT21#,ST215

 1
81260A - LAMP ASSY, MAP
81260-20260E0

AT211,212,CT21#,ST215

LT.ANTELOPE,TRIM4#

 1
81260-20260B0

AT21#,CT21#,ST215

LT.GRAY,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-12020

AT21#,CT21#,ST215

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12020

AT21#,CT21#,ST215

12V 8W

 2
81265C - LENS, MAP LAMP, NO.1
81265-20260

AT21#,CT21#,ST215

 1
81266D - LENS, MAP LAMP, NO.2
81266-20260

AT21#,CT21#,ST215

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-12020

AT21#,CT21#,ST215

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

AT21#,CT21#,ST215

12V 3.8W

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-20050

AT21#,CT21#,ST215

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11014

AT21#,CT21#,ST215

14V 1.4W

 1
Common parts
90159-50193
90164-45006
90189-04002
93540-54012
