CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

Click highlighted areas on diagram

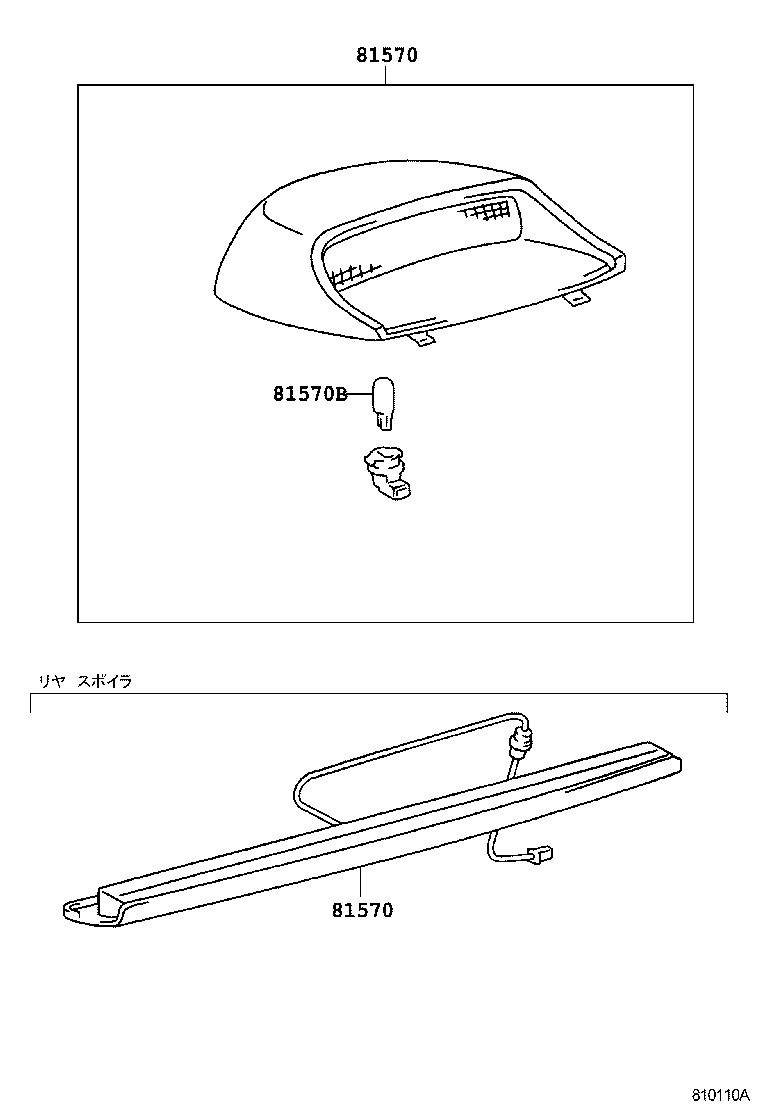

diagram 81570 81570 81570B
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-20350B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM11

 1
81570-20370

AT21#,CT21#,ST215

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
81570-20350E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
81570 - LAMP ASSY, CENTER STOP
81570-20350B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM11

 1
81570-20370

AT21#,CT21#,ST215

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
81570-20350E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11039

AT21#,CT21#,ST215

12V 16W

 1
