CT210-CEPMX (1996)
Toyota Carina Ff
Production
Aug 1996
-
Aug 1998
Engine
2CT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608-9808)

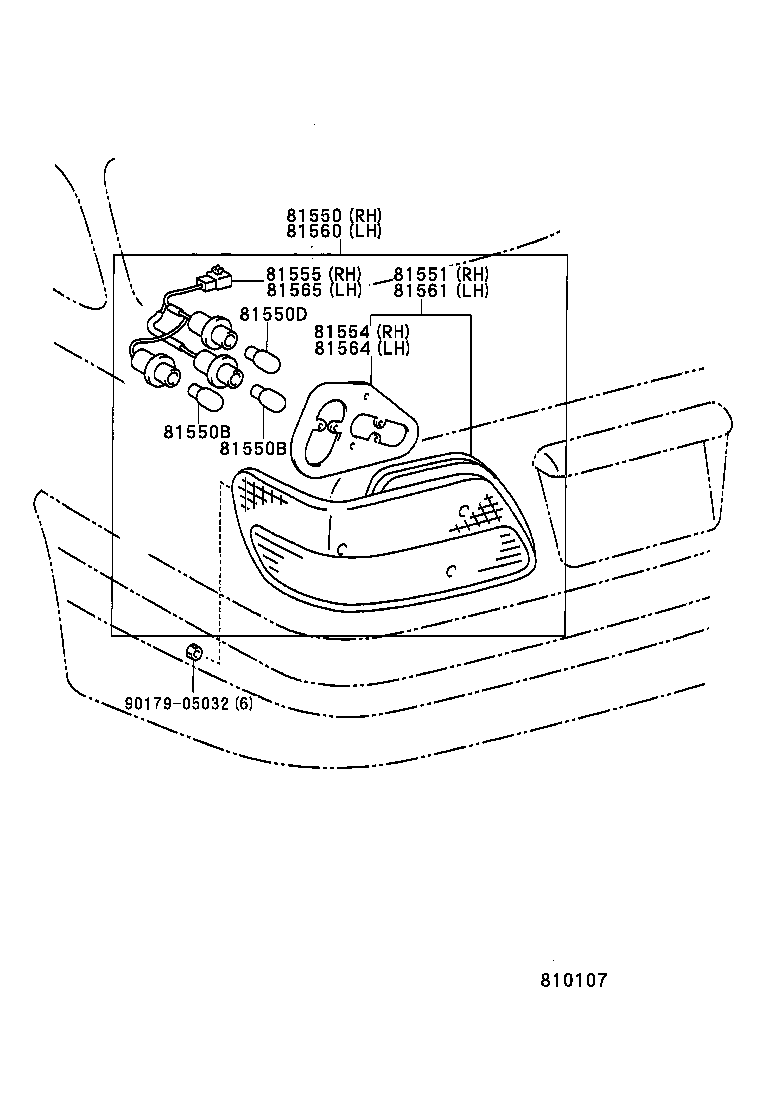

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-2B470 |
AT21#,CT21#,ST215 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13043 |
AT21#,CT21#,ST215 12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13043 |
AT21#,CT21#,ST215 12V 21W |
4 | ||
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
AT21#,CT21#,ST215 12V 21/5W |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-2B470 |
AT21#,CT21#,ST215 |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-2B470 |
AT21#,CT21#,ST215 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-2B470 |
AT21#,CT21#,ST215 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-2B340 |
AT21#,CT21#,ST215 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-2B340 |
AT21#,CT21#,ST215 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-2B340 |
AT21#,CT21#,ST215 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-2B470 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 90179-05032 | ||||
