CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808)

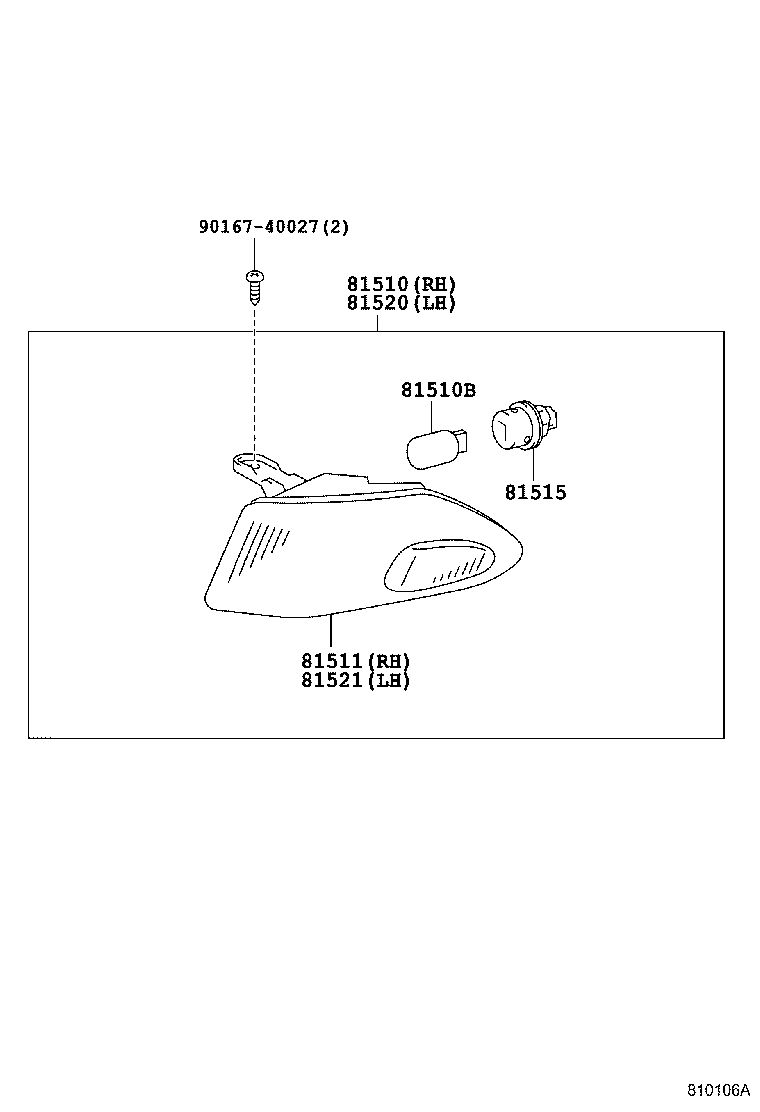

Click highlighted areas on diagram

diagram 81510 81510B 81511 81515 81520 81521 9016740027
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20820

AT21#,CT21#,ST215

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13043

AT21#,CT21#,ST215

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20820

AT21#,CT21#,ST215

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
90075-99080

AT21#,CT21#,ST215

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20810

AT21#,CT21#,ST215

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20810

AT21#,CT21#,ST215

 1
Common parts
90167-40027
