CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808)

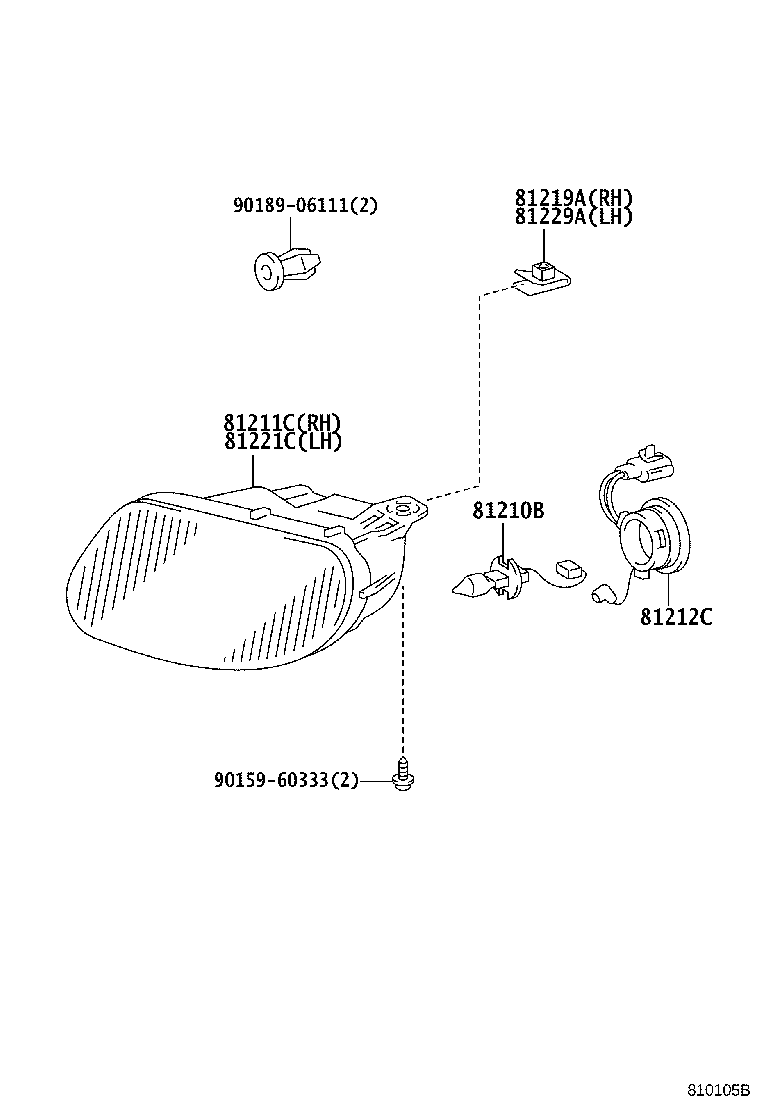

Click highlighted areas on diagram

diagram 81210B 81211C 81212C 81219A 81221C 81229A 9015960333 9018906111
Part # Description Qty Price
81210B - BULB, FOG LAMP
90981-13071

AT21#,CT21#,ST215

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-20400

AT21#,CT21#,ST215

 1
81212C - COVER, FOG LAMP
90075-66002

AT21#,CT21#,ST215

 2
81219A - BRACKET, FOG LAMP, RH
52125-20100

AT21#,CT21#,ST215

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-20390

AT21#,CT21#,ST215

 1
81229A - BRACKET, FOG LAMP, LH
52125-20100

AT21#,CT21#,ST215

 1
Common parts
90159-60333
90189-06111
