CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808)

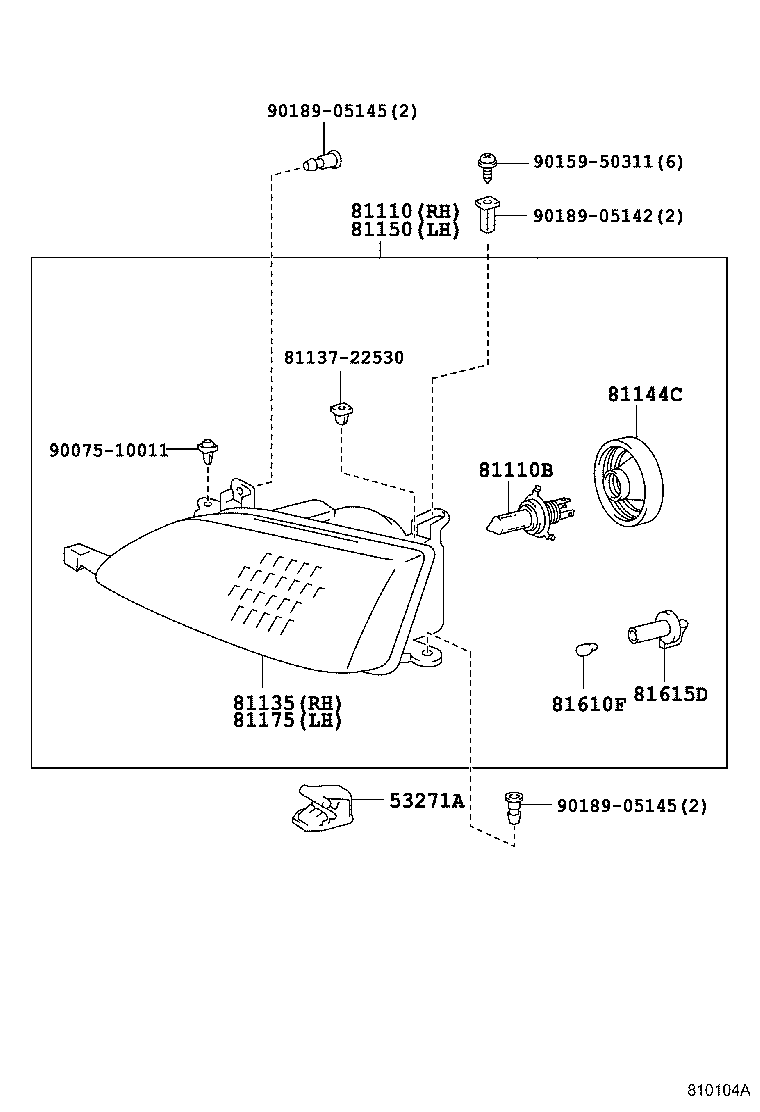

Click highlighted areas on diagram

diagram 53271A 81110 81110B 81135 8113722530 81144C 81150 81175 81610F 81615D 9007510011 9015950311 9018905142 9018905145 9018905145
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-44010

AT21#,CT21#,ST215

 2
81110 - HEADLAMP ASSY, RH
81110-2B750

AT21#,CT21#,ST215

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-22004

AT21#,CT21#,ST215

12V 60/55W,*HAL *WH

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-2B720

AT21#,CT21#,ST215

 1
81144C - COVER, HEADLAMP SOCKET
90075-65002

AT21#,CT21#,ST215

 2
81150 - HEADLAMP ASSY, LH
81150-2B680

AT21#,CT21#,ST215

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-2B680

AT21#,CT21#,ST215

 1
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

AT21#,CT21#,ST215

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-99044

AT21#,CT21#,ST215

 2
Common parts
81137-22530
90075-10011
90159-50311
90189-05142
90189-05145
