CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808)CT21#

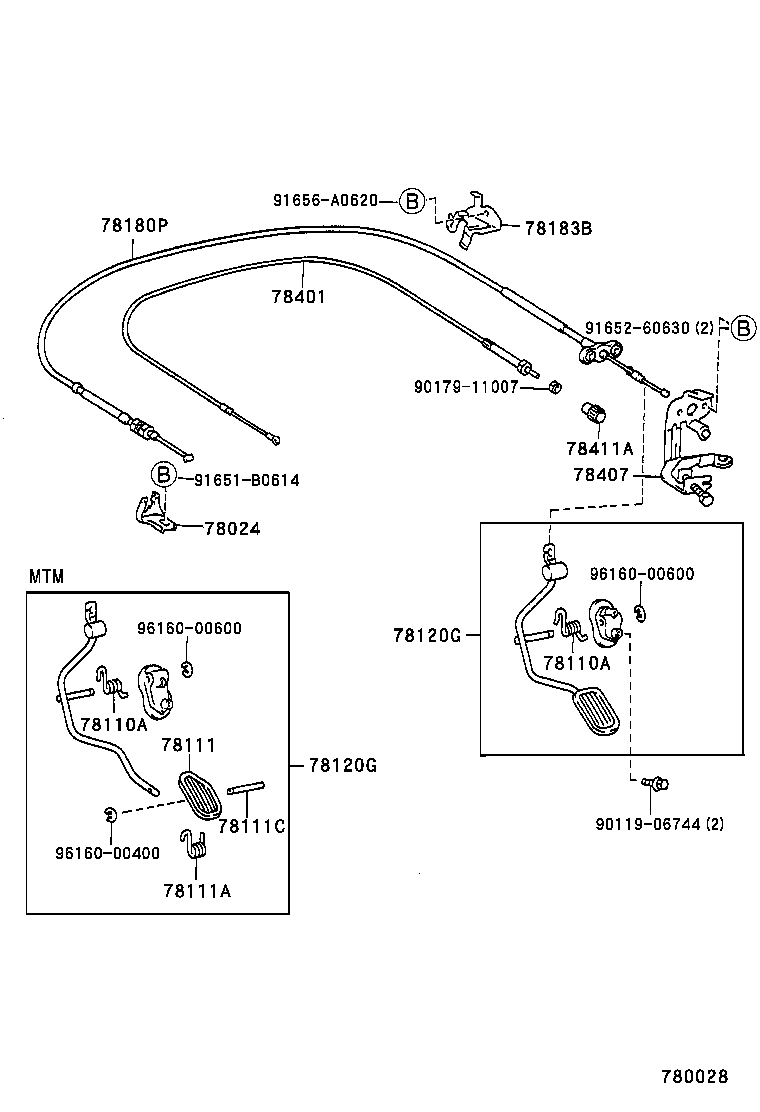

Click highlighted areas on diagram

diagram 78024 78110A 78110A 78111 78111A 78111C 78120G 78120G 78180P 78183B 78401 78407 78411A 9011906744 9017911007 91651B0614 9165260630 91656A0620 9616000400 9616000600 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-32140

CT21#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03009

AT210,212,CT210..4FC

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03009

AT210,212,CT210..4FC

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20700

AT210,212,CT210..4FC

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20700

AT210,212,CT210..4FC

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2D530

CT210..4FC

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20170

CT211..4FC;AT21#,CT210,215,216,ST215

 1
Common parts
90119-06744
90179-11007
91651-B0614
91652-60630
91656-A0620
96160-00400
96160-00600
