CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9608-9808)AT21#,CT210

Click highlighted areas on diagram

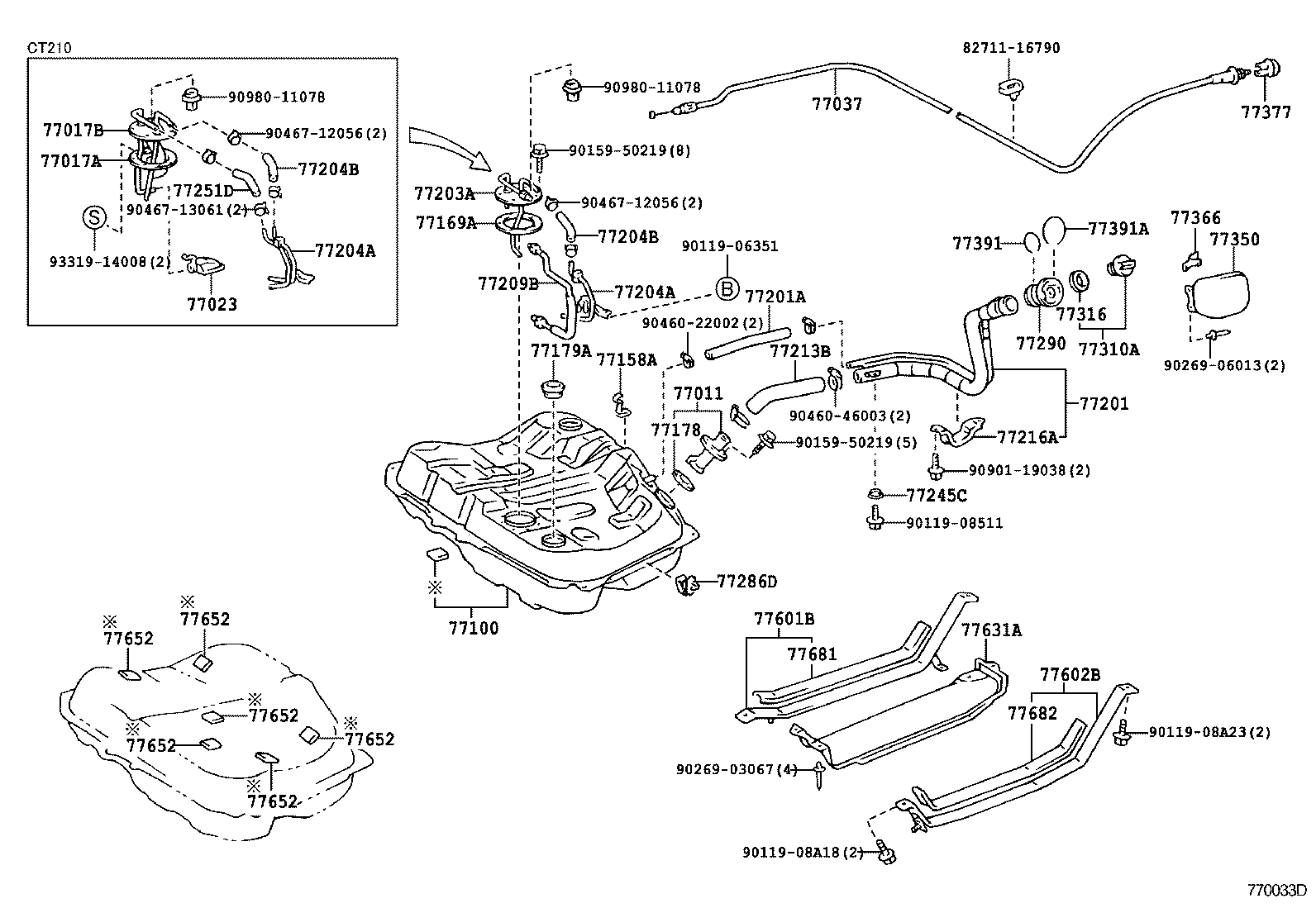

diagram 77011 77017A 77017B 77023 77037 77100 77158A 77169A 77178 77179A 77201 77201A 77203A 77204A 77204A 77204B 77204B 77209B 77213B 77216A 77245C 77251D 77286D 77290 77310A 77316 77350 77366 77377 77391 77391A 77601B 77602B 77631A 77652 77652 77652 77652 77652 77652 77681 77682 8271116790 9011906351 9011908511 9011908A18 9011908A23 9015950219 9015950219 9026903067 9026906013 9046022002 9046046003 9046712056 9046712056 9046713061 9090119038 9098011078 9098011078 9331914008
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-20100

ST215..TI;AT21#,CT210,211,216

 1
77017A - GASKET, FUEL TANK VENT
77169-20050

CT210

 1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-20190

CT210,211

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-32040

CT210,211,216

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-20110

AT21#,CT21#,ST215

 1
77100 - TANK ASSY, FUEL
77001-20740

AT21#,CT210,211

 1
77158A - SUPPORT, TANK SUCTION TUBE
77158-20020

AT21#,CT210,211

 2
77169A - GASKET, FUEL SUCTION TUBE SET
77169-20050

AT21#,CT210,211

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030

AT21#,CT21#,ST215

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-20530

AT21#,CT210,211

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
90445-22036

AT21#,CT210,211

 1
77204A - TUBE, FUEL TANK RETURN
77204-20100

CT210,211

 1
77204A - TUBE, FUEL TANK RETURN
77204-20100

CT210,211

 1
77204B - HOSE, FUEL(FOR FUEL RETURN)
95333-06020

AT21#,CT210,211

長さ=110

 1
77204B - HOSE, FUEL(FOR FUEL RETURN)
95333-06020

AT21#,CT210,211

長さ=110

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-20150

AT21#,CT210,211

 1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-20180

AT21#,CT210,211

 1
77245C - SUPPORT, FUEL TANK
77245-20120

AT21#,CT21#,ST215

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-08020

CT210,211

*H,L=120,内径=7.6

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-20100

AT21#,CT210,211

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-20140

AT21#,CT21#,ST215

 1
77310A - CAP ASSY, FUEL TANK
77310-32011

CT21#

 1
77310-12150

CT21#

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

AT21#,CT21#,ST215

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-20280

AT21#,CT21#,ST215

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-12080

AT21#,CT21#,ST215

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12050

AT21#,CT21#,ST215

 1
77391 - RING, FUEL INLET BOX
77391-12020

AT21#,CT21#,ST215

 1
77391A - RING, FUEL INLET BOX
77391-20030

AT21#,CT21#,ST215

 1
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-20220

AT21#,CT210,211

 1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-20140

AT21#,CT210,211

 1
77631A - PROTECTOR, FUEL TANK, LOWER CENTER
77631-20090

AT21#,CT210,211

 1
77652 - CUSHION, FUEL TANK, NO.1
77651-20090

AT21#,CT210,211

 6
77652 - CUSHION, FUEL TANK, NO.1
77651-20090

AT21#,CT210,211

 6
77652 - CUSHION, FUEL TANK, NO.1
77651-20090

AT21#,CT210,211

 6
77652 - CUSHION, FUEL TANK, NO.1
77651-20090

AT21#,CT210,211

 6
77652 - CUSHION, FUEL TANK, NO.1
77651-20090

AT21#,CT210,211

 6
77652 - CUSHION, FUEL TANK, NO.1
77651-20090

AT21#,CT210,211

 6
77681 - SEAT, FUEL TANK BAND, RH
77681-32060

AT21#,CT21#,ST215

 1
77682 - SEAT, FUEL TANK BAND, LH
77681-32060

AT21#,CT21#,ST215

 1
Common parts
82711-16790
90119-06351
90119-08511
90119-08A18
90119-08A23
90159-50219
90269-03067
90269-06013
90460-22002
90460-46003
90467-12056
90467-13061
90901-19038
90980-11078
93319-14008

ILLUST NO. 2 OF 2(9608- )CT210,211

Click highlighted areas on diagram

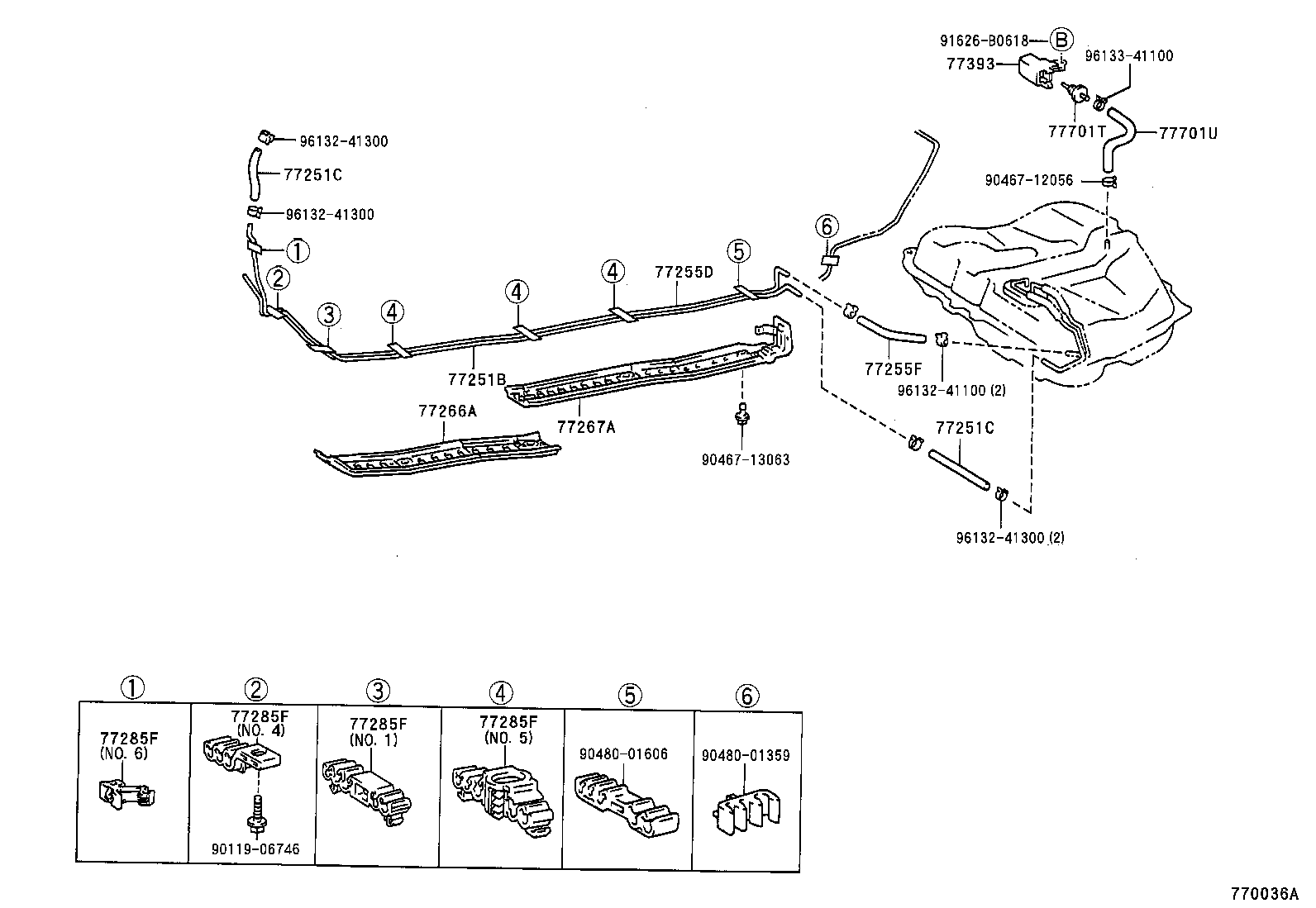

diagram 77251B 77251C 77251C 77255D 77255F 77266A 77267A 77285F 77285F 77285F 77285F 77393 77701T 77701U 9011906746 9046712056 9046713063 9048001359 9048001606 91626B0618 9613241100 9613241300 9613241300 9613241300 9613341100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-20780

CT210,211

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95333-08020

CT21#

長さ=200,内径=8

 1
95333-08020

CT210,211

*H,L=150,内径=7.6

 1
95333-08020

CT210,211,216

*H,L=180,内径=7.6

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95333-08020

CT21#

長さ=200,内径=8

 1
95333-08020

CT210,211

*H,L=150,内径=7.6

 1
95333-08020

CT210,211,216

*H,L=180,内径=7.6

 1
77255D - TUBE, FUEL RETURN
77255-20650

CT210,211

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06020

CT210,211,215

*H,L=160

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-20120

AT21#,CT21#,ST215

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-20110

AT21#,CT21#,ST215

 1
77285F - CLAMP, FUEL TUBE, NO.1
77286-20090

AT21#,CT21#,ST215

NO.4

 1
77298-12030

AT21#,CT21#,ST215

NO.5

 3
77286-20090

CT21#

NO.4

 1
77285-12020

AT21#,CT21#,ST215

NO.1

 1
77285-20120

CT21#

NO.6

 1
77298-20040

AT21#,CT21#,ST215

NO.5

 3
77285F - CLAMP, FUEL TUBE, NO.1
77286-20090

AT21#,CT21#,ST215

NO.4

 1
77298-12030

AT21#,CT21#,ST215

NO.5

 3
77286-20090

CT21#

NO.4

 1
77285-12020

AT21#,CT21#,ST215

NO.1

 1
77285-20120

CT21#

NO.6

 1
77298-20040

AT21#,CT21#,ST215

NO.5

 3
77285F - CLAMP, FUEL TUBE, NO.1
77286-20090

AT21#,CT21#,ST215

NO.4

 1
77298-12030

AT21#,CT21#,ST215

NO.5

 3
77286-20090

CT21#

NO.4

 1
77285-12020

AT21#,CT21#,ST215

NO.1

 1
77285-20120

CT21#

NO.6

 1
77298-20040

AT21#,CT21#,ST215

NO.5

 3
77285F - CLAMP, FUEL TUBE, NO.1
77286-20090

AT21#,CT21#,ST215

NO.4

 1
77298-12030

AT21#,CT21#,ST215

NO.5

 3
77286-20090

CT21#

NO.4

 1
77285-12020

AT21#,CT21#,ST215

NO.1

 1
77285-20120

CT21#

NO.6

 1
77298-20040

AT21#,CT21#,ST215

NO.5

 3
77393 - PROTECTOR, CHECK VALVE
77393-20010

CT21#

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10082

CT21#

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06030

CT21#

*H,L=220

 1
77259-20190

CT210,211

長さ=220

 1
Common parts
90119-06746
90467-12056
90467-13063
90480-01359
90480-01606
91626-B0618
96132-41100
96132-41300
96133-41100
