CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808)

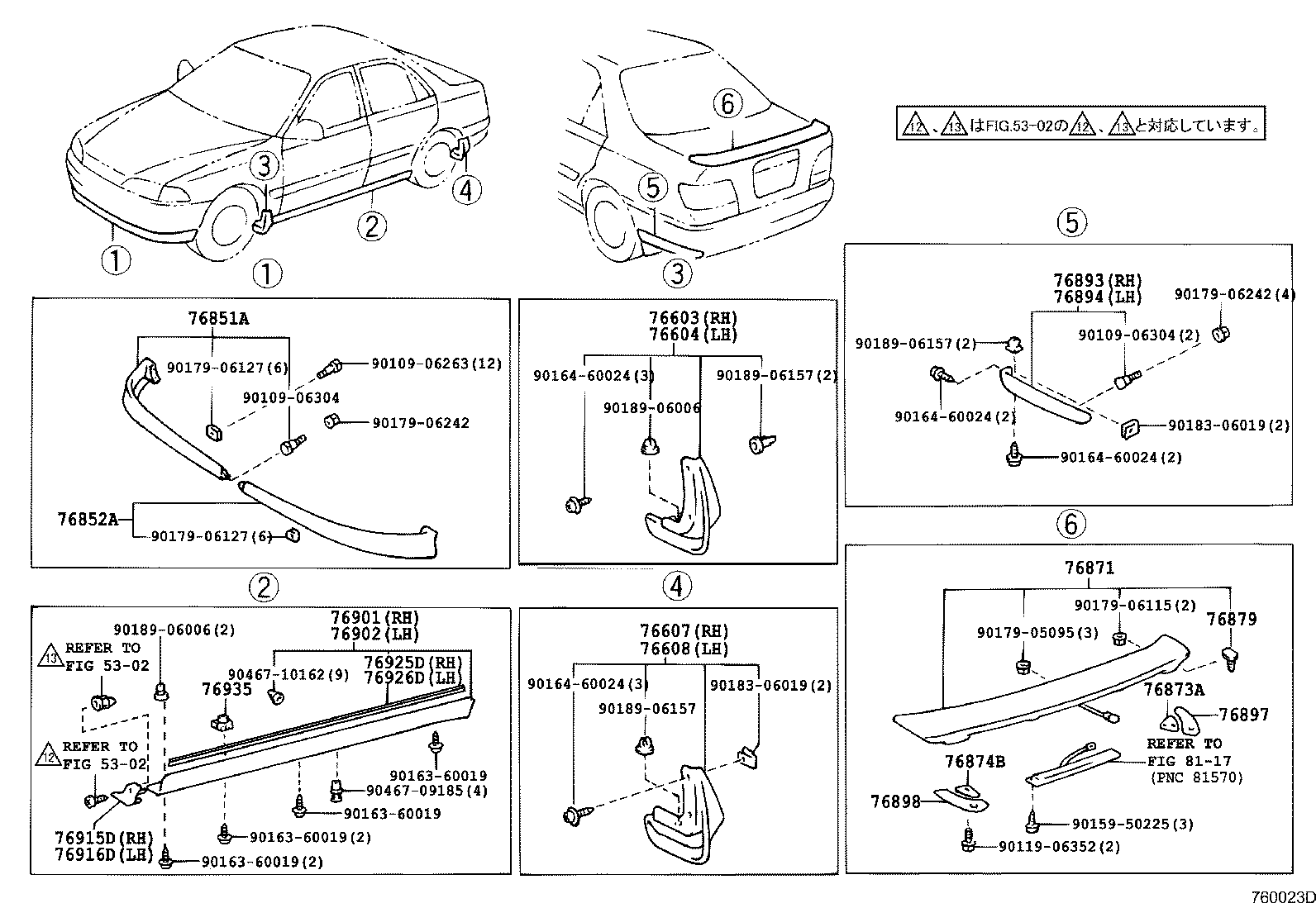

Click highlighted areas on diagram

diagram 5302 5302 76603 76604 76607 76608 76851A 76852A 76871 76873A 76874B 76879 76893 76894 76897 76898 76901 76902 76915D 76916D 76925D 76926D 76935 8117 9010906263 9010906304 9010906304 9011906352 9015950225 9016360019 9016360019 9016360019 9016360019 9016460024 9016460024 9016460024 9016460024 9017905095 9017906115 9017906127 9017906127 9017906242 9017906242 9018306019 9018306019 9018906006 9018906006 9018906157 9018906157 9018906157 9046709185 9046710162
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-29205J1

AT211,212,CT21#,ST215

DK BLUE M.M.,8L2

 1
76621-29205G2

AT211,212,CT21#,ST215

LT GREEN ME.OP.,6P7

 1
76621-29205K0

AT211,212,CT21#,ST215

LAVENDER M.M.,925

 1
76621-29205B2

AT211,212,CT21#,ST215

SILVER ME.,199

 1
76621-29205A0

AT211,212,CT21#,ST215

SUPER WHITE 2,040

 1
76621-29205G1

AT211,212,CT21#,ST215

DK.GREEN M.M.,6P2

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-29205B2

AT211,212,CT21#,ST215

SILVER ME.,199

 1
76622-29205G2

AT211,212,CT21#,ST215

LT GREEN ME.OP.,6P7

 1
76622-29205A0

AT211,212,CT21#,ST215

SUPER WHITE 2,040

 1
76622-29205K0

AT211,212,CT21#,ST215

LAVENDER M.M.,925

 1
76622-29205J1

AT211,212,CT21#,ST215

DK BLUE M.M.,8L2

 1
76622-29205G1

AT211,212,CT21#,ST215

DK.GREEN M.M.,6P2

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-29225G2

AT211,212,CT21#,ST215

LT GREEN ME.OP.,6P7

 1
76625-29225J1

AT211,212,CT21#,ST215

DK BLUE M.M.,8L2

 1
76625-29225B2

AT211,212,CT21#,ST215

SILVER ME.,199

 1
76625-29225K0

AT211,212,CT21#,ST215

LAVENDER M.M.,925

 1
76625-29225A0

AT211,212,CT21#,ST215

SUPER WHITE 2,040

 1
76625-29225G1

AT211,212,CT21#,ST215

DK.GREEN M.M.,6P2

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-29225G1

AT211,212,CT21#,ST215

DK.GREEN M.M.,6P2

 1
76626-29225K0

AT211,212,CT21#,ST215

LAVENDER M.M.,925

 1
76626-29225A0

AT211,212,CT21#,ST215

SUPER WHITE 2,040

 1
76626-29225G2

AT211,212,CT21#,ST215

LT GREEN ME.OP.,6P7

 1
76626-29225J1

AT211,212,CT21#,ST215

DK BLUE M.M.,8L2

 1
76626-29225B2

AT211,212,CT21#,ST215

SILVER ME.,199

 1
76871 - SPOILER, REAR
76871-20915

AT21#,CT21#,ST215

 1
76873A - PROTECTOR, REAR SPOILER, RH
76873-20200

AT21#,CT21#,ST215

 1
76874B - PROTECTOR, REAR SPOILER, LH
76874-20190

AT21#,CT21#,ST215

 1
76879 - CLIP, REAR SPOILER, NO.1
76879-12040

AT21#,CT21#,ST215

 2
76897 - PROTECTOR, REAR SPOILER, SIDE RH
76897-20060

AT21#,CT21#,ST215

 1
76898 - PROTECTOR, REAR SPOILER, SIDE LH
76898-20060

AT21#,CT21#,ST215

 1
Common parts
90109-06263
90109-06304
90119-06352
90159-50225
90163-60019
90164-60024
90179-05095
90179-06115
90179-06127
90179-06242
90183-06019
90189-06006
90189-06157
90467-09185
90467-10162
Linked diagrams
5302
8117
