CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

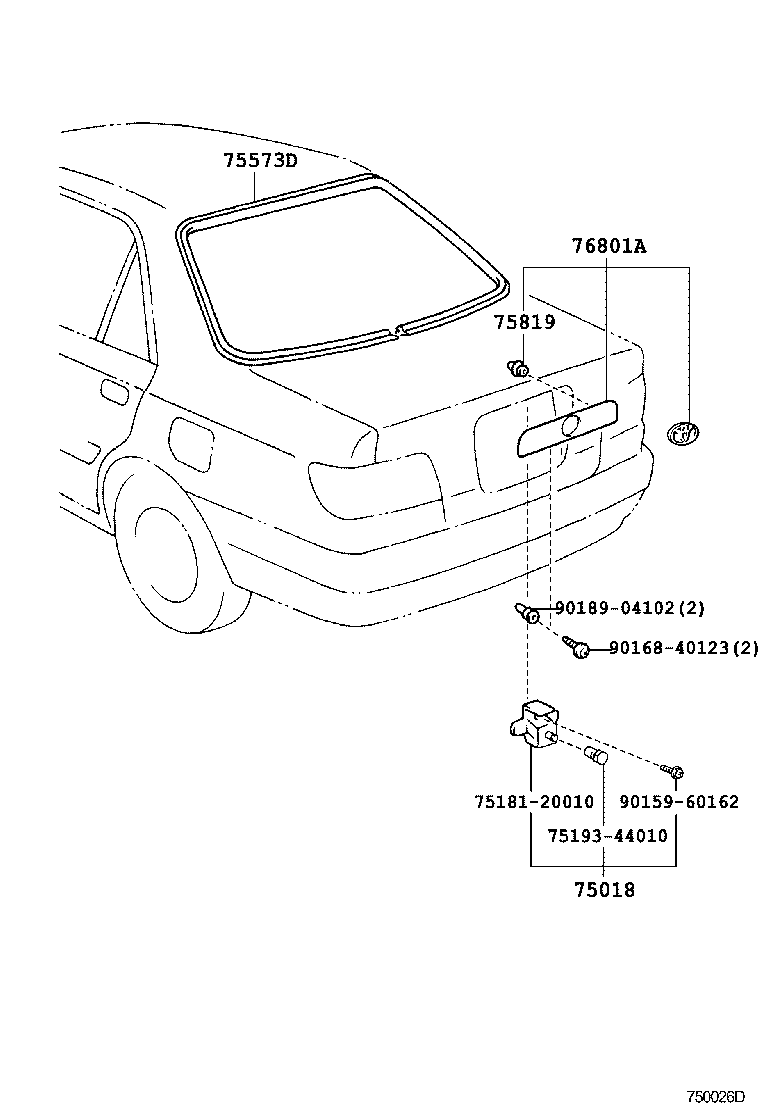

Click highlighted areas on diagram

diagram 75018 7518120010 7519344010 75573D 75819 76801A 9015960162 9016840123 9018904102
Part # Description Qty Price
75018 - FRAME SUB-ASSY, REAR LICENSE PLATE
75010-20010

AT21#,CT21#,ST215

***

 1
75573D - MOULDING, BACK WINDOW, OUTSIDE
75573-20340

AT21#,CT21#,ST215

 1
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-20060

AT21#,CT21#,ST215

 2
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-20240A0

AT21#,CT21#,ST215

SUPER WHITE 2,040

 1
76801-20240J0

AT21#,CT21#,ST215

DK.BLUE M.M.,8L2

 1
76801-20240K0

AT21#,CT21#,ST215

LAVENDER M.M.,925

 1
76801-20240G1

AT21#,CT21#,ST215

LT.GREEN ME.OP.,6P7

 1
76801-20240G0

AT21#,CT21#,ST215

DK.GREEN M.M.,6P2

 1
76801-20240B1

AT21#,CT21#,ST215

SILVER ME,199

 1
Common parts
75181-20010
75193-44010
90159-60162
90168-40123
90189-04102
