CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

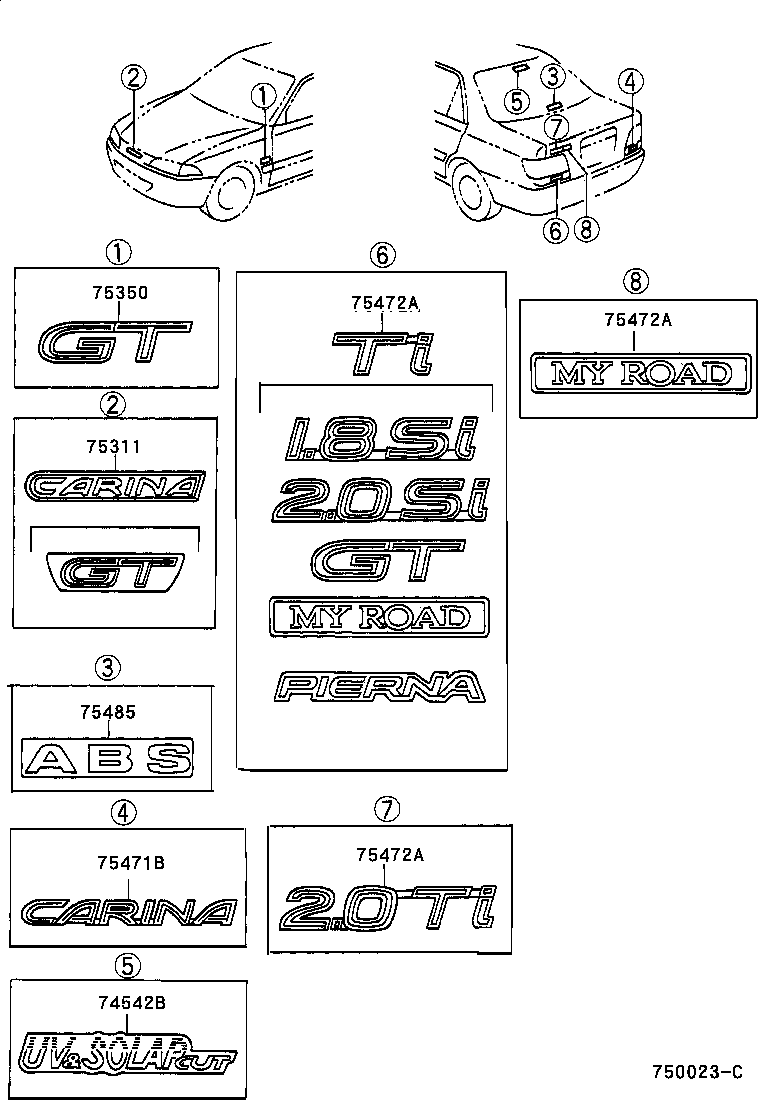

Click highlighted areas on diagram

diagram 74542B 75311 75350 75471B 75472A 75472A 75472A 75485
Part # Description Qty Price
74542B - PLATE, REAR WINDOW MARK
74542-20040

AT21#,CT21#,ST215

 1
75471B - PLATE, REAR BODY NAME, NO.1
75471-20080

AT21#,CT21#,ST215

 1
75472A - PLATE, REAR BODY NAME, NO.2
75472-20120

AT212,CT21#

TI

 1
75472-20170

AT211,212,CT210,ST215

MYROAD

 1
75472A - PLATE, REAR BODY NAME, NO.2
75472-20120

AT212,CT21#

TI

 1
75472-20170

AT211,212,CT210,ST215

MYROAD

 1
75472A - PLATE, REAR BODY NAME, NO.2
75472-20120

AT212,CT21#

TI

 1
75472-20170

AT211,212,CT210,ST215

MYROAD

 1
75485 - PLATE, BACK WINDOW NAME
74542-20050

AT21#,CT21#,ST215

ABS

 1
