CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

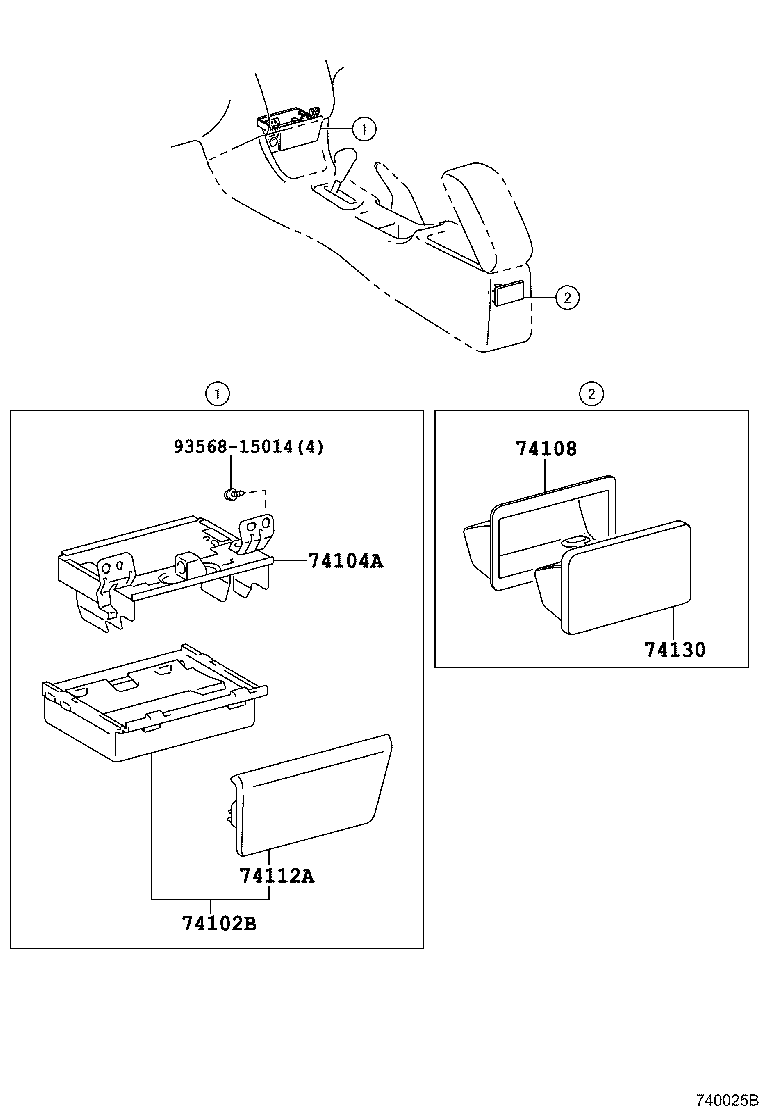

Click highlighted areas on diagram

diagram 74102B 74104A 74108 74112A 74130 9356815014
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-20260B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
74102-20260E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-20320

AT21#,CT21#,ST215

 1
74104-20300

AT21#,CT21#,ST215

 1
74108 - RETAINER SUB-ASSY, REAR ASH RECEPTACLE
74108-20090

AT21#,CT21#,ST215

 1
74112A - DOOR, FRONT ASH RECEPTACLE
74112-20130B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
74112-20130E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-20080P0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
74109-20080E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
Common parts
93568-15014
