CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

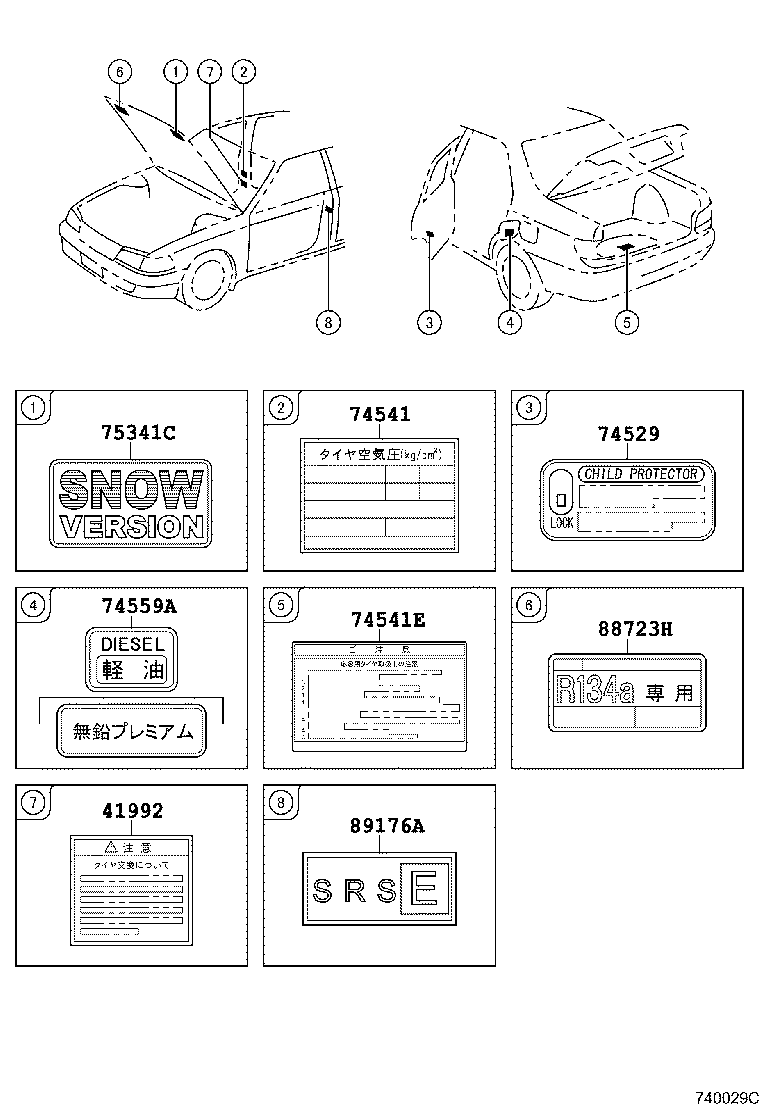

Click highlighted areas on diagram

diagram 41992 74529 74541 74541E 74559A 75341C 88723H 89176A
Part # Description Qty Price
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-12010

AT21#,CT21#,ST215

 2
74541 - PLATE, TIRE PRESSURE CAUTION
42661-2B322

AT212,CT210

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-32010

AT21#,CT21#,ST215

 1
74559A - PLATE, FUEL CAUTION
74559-14030

CT21#

 1
75341C - PLATE, HOOD NAME
75341-20060

AT21#,CT21#,ST215

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-20030

AT21#,CT21#,ST215

 1
