CT210-CEPMX (1996)
Toyota Carina Ff
Production
Aug 1996
-
Aug 1998
Engine
2CT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )

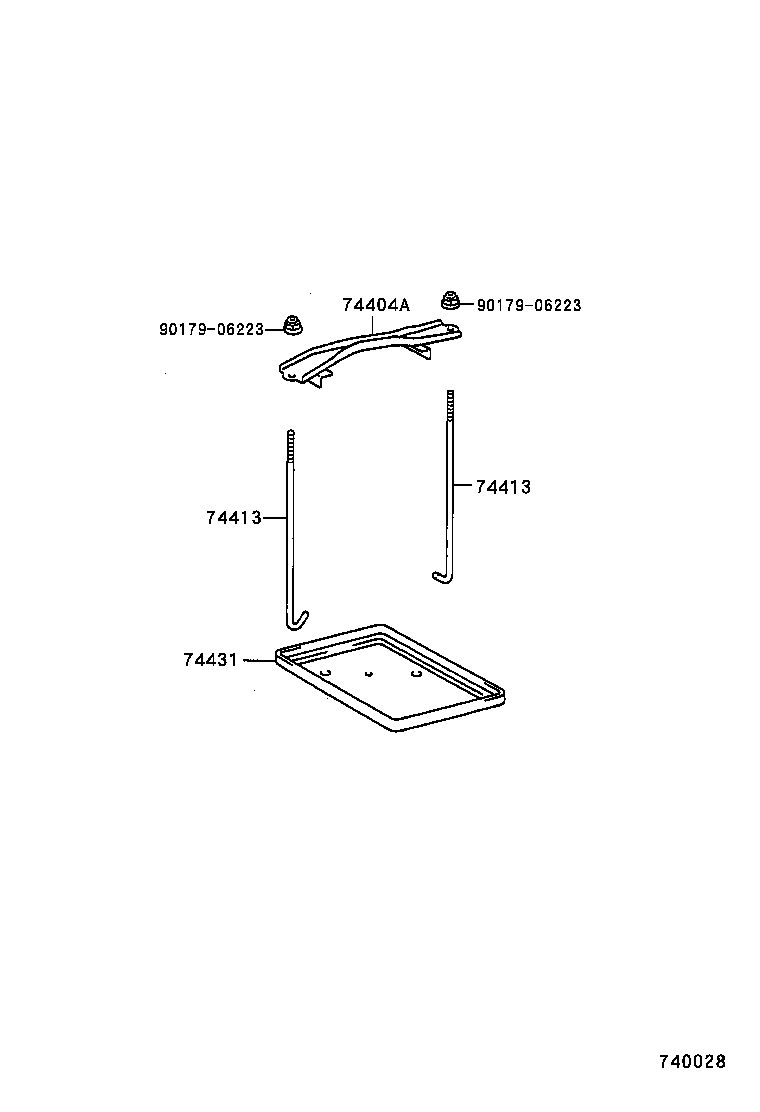

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74404A - CLAMP SUB-ASSY, BATTERY | ||||
| 74404-32130 |
CT21# |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-14010 |
CT21# ﾌﾛﾝﾄ |
1 | ||
| 74451-32070 |
CT21# ﾘﾔ |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-14010 |
CT21# ﾌﾛﾝﾄ |
1 | ||
| 74451-32070 |
CT21# ﾘﾔ |
1 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-20100 |
CT21# |
1 | ||
| Common parts | ||||
| 90179-06223 | ||||
