CT210-CEPMX (1996)
Toyota Carina Ff

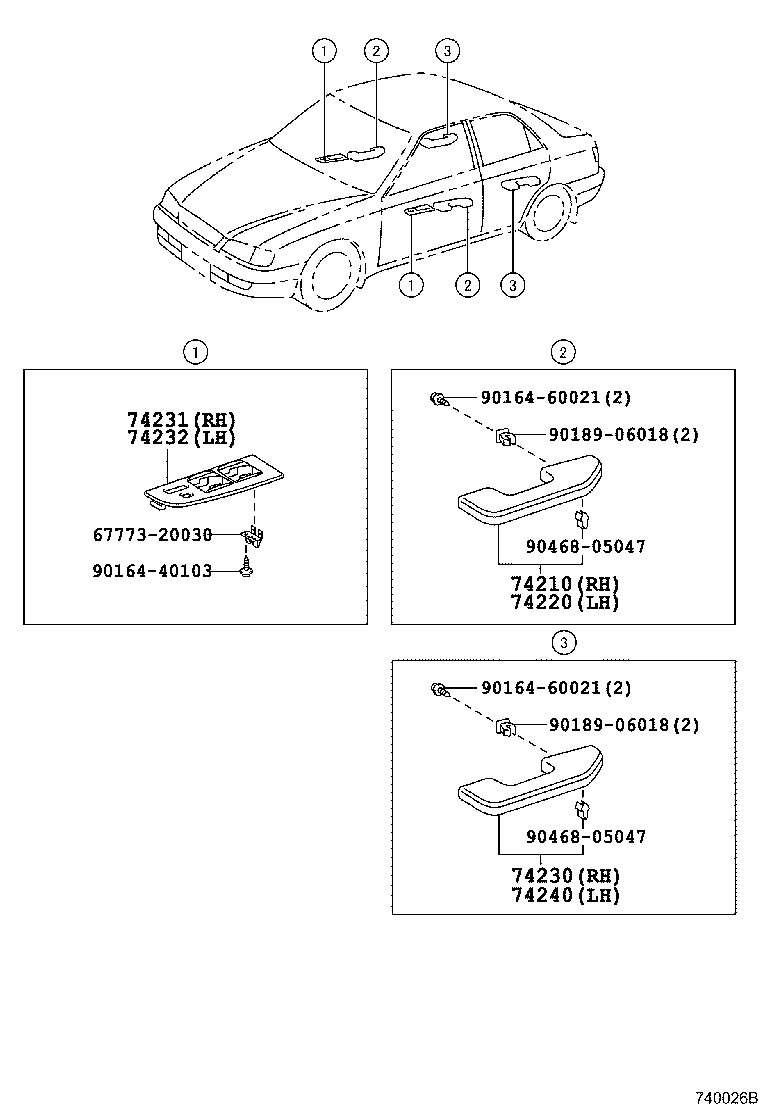

ILLUST NO. 1 OF 2(9608- )
ｱ-ﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-20190B0 |
AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
1 | ||
| 74210-20190E0 |
AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-20190E0 |
AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
1 | ||
| 74220-20190B0 |
AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-20190E0 |
AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
1 | ||
| 74210-20190B0 |
AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-20350 |
AT211,212,CT210,ST215 ﾓｸﾒ |
1 | ||
| 74231-20280B0 |
AT211,212,CT21#,ST215 SHADOW GRAY,TRIM1# |
1 | ||
| 74231-20280E0 |
AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-20270B0 |
AT211,212,CT21#,ST215 SHADOW GRAY,TRIM1# |
1 | ||
| 74232-20270E0 |
AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
1 | ||
| 74232-20330 |
AT211,212,CT210,ST215 ﾓｸﾒ |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74220-20190B0 |
AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
1 | ||
| 74220-20190E0 |
AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
1 | ||
| Common parts | ||||
| 67773-20030 | ||||
| 90164-40103 | ||||
| 90164-60021 | ||||
| 90189-06018 | ||||
| 90468-05047 | ||||

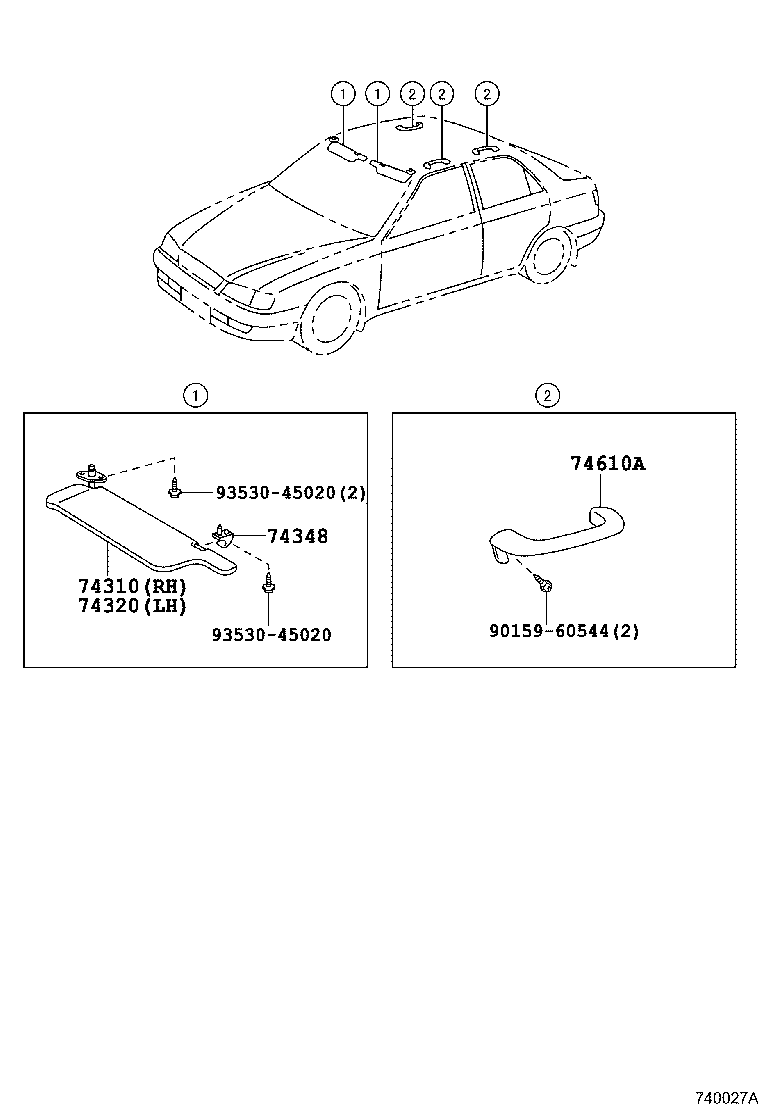

ILLUST NO. 2 OF 2(9608- )
ﾊﾞｲｻﾞ- & ｱｼｽﾄｸﾞﾘﾂﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-2B700B2 |
AT21#,CT21#,ST215 ｱﾘ(ｼﾖｸﾓｳ),LT. GRAY,TRIM1# |
1 | ||
| 74310-2D070E1 |
AT212,CT21# LT. ANTELOPE,TRIM4# |
1 | ||
| 74310-2B690B2 |
AT212,CT21# LT. GRAY,TRIM1# |
1 | ||
| 74310-2B690E2 |
AT212,CT21# LT. ANTELOPE,TRIM4# |
1 | ||
| 74310-2D080B1 |
AT21#,CT21#,ST215 ｱﾘ(ｼﾖｸﾓｳ),LT. GRAY,TRIM1# |
1 | ||
| 74310-2D080E1 |
AT211,212,CT21#,ST215 ｱﾘ(ｼﾖｸﾓｳ),LT. ANTELOPE,TRIM4# |
1 | ||
| 74310-2B700E2 |
AT211,212,CT21#,ST215 ｱﾘ(ｼﾖｸﾓｳ),LT. ANTELOPE,TRIM4# |
1 | ||
| 74310-2D070B1 |
AT212,CT21# LT. GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-2B650E1 |
AT211,212,CT21#,ST215 ｱﾘ(ｼﾖｸﾓｳ/ﾊﾞﾆﾃｲﾐﾗ-),LT. ANTELOPE,TRIM4# |
1 | ||
| 74320-2B650B1 |
AT21#,CT21#,ST215 ｱﾘ(ｼﾖｸﾓｳ/ﾊﾞﾆﾃｲﾐﾗ-),LT. GRAY,TRIM1# |
1 | ||
| 74320-2B800E1 |
AT212,CT21# LT. ANTELOPE,TRIM4# |
1 | ||
| 74320-2B560B2 |
AT212,CT21# LT. GRAY,TRIM1# |
1 | ||
| 74320-2B810E1 |
AT211,212,CT21#,ST215 ｱﾘ(ｼﾖｸﾓｳ/ﾊﾞﾆﾃｲﾐﾗ-),LT. ANTELOPE,TRIM4# |
1 | ||
| 74320-2B560E2 |
AT212,CT21# LT. ANTELOPE,TRIM4# |
1 | ||
| 74320-2B810B1 |
AT21#,CT21#,ST215 ｱﾘ(ｼﾖｸﾓｳ/ﾊﾞﾆﾃｲﾐﾗ-),LT. GRAY,TRIM1# |
1 | ||
| 74320-2B800B1 |
AT212,CT21# LT. GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-22020E3 |
AT211,212,CT21#,ST215 LT.ANTELOPE,TRIM4# |
2 | ||
| 74348-22020B6 |
AT21#,CT21#,ST215 LT.GRAY,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74611-20030B3 |
AT21#,CT21#,ST215 LT.GRAY,TRIM1# |
3 | ||
| 74611-20030E2 |
AT211,212,CT21#,ST215 LT.ANTELOPE,TRIM4# |
3 | ||
| Common parts | ||||
| 90159-60544 | ||||
| 93530-45020 | ||||
