CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

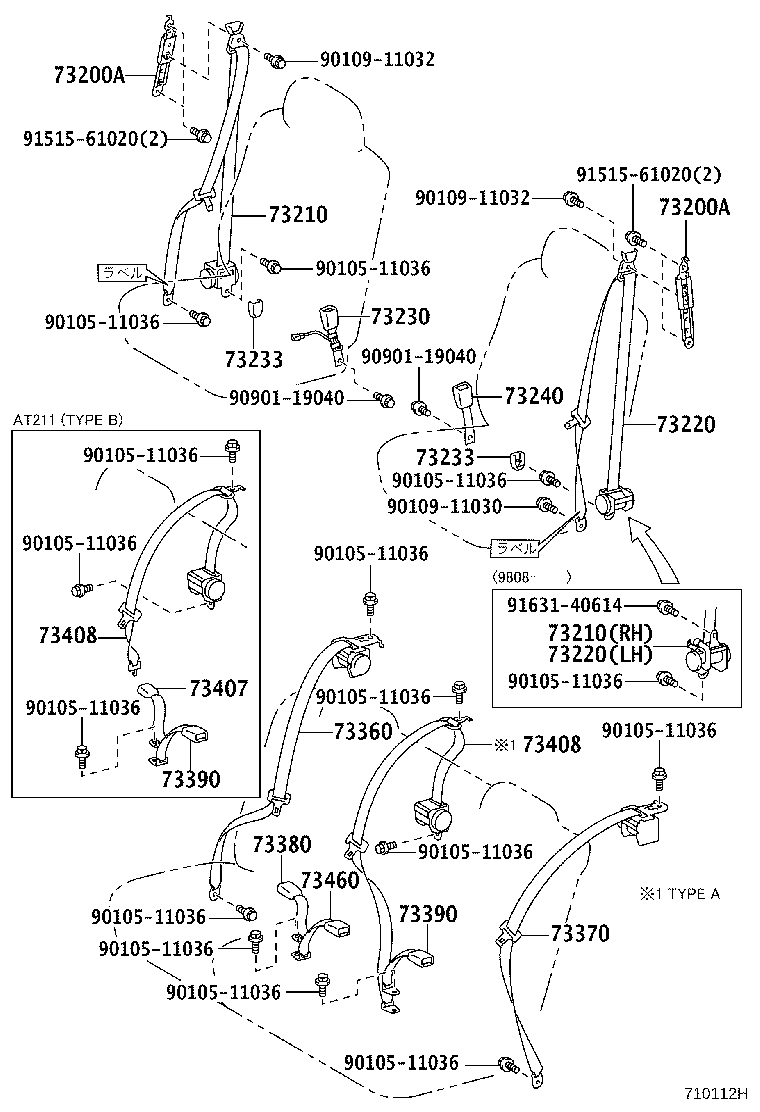

Click highlighted areas on diagram

diagram 73200A 73200A 73210 73210 73220 73220 73230 73233 73233 73240 73360 73370 73380 73390 73390 73407 73408 73408 73460 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010911030 9010911032 9010911032 9090119040 9090119040 9151561020 9151561020 9163140614
Part # Description Qty Price
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-20031B2

AT21#,CT21#,ST215

LT.GRAY,TRIM1#

 2
73200-20031E2

AT211,212,CT21#,ST215

LT.ANTELOPE,TRIM4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-20031B2

AT21#,CT21#,ST215

LT.GRAY,TRIM1#

 2
73200-20031E2

AT211,212,CT21#,ST215

LT.ANTELOPE,TRIM4#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-2B030E0

AT211,212,CT21#,ST215

DK. ROSE,TRIM4#

 1
73210-2B030B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-2B030E0

AT211,212,CT21#,ST215

DK. ROSE,TRIM4#

 1
73210-2B030B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-20740B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
73220-20740E0

AT211,212,CT21#,ST215

DK. ROSE,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-20740B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
73220-20740E0

AT211,212,CT21#,ST215

DK. ROSE,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-20780B0

AT210,212,CT21#

SHADOW GRAY,TRIM1#

 1
73230-20780E0

AT212,CT21#

ANTELOPE,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-20730E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
73230-20730B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-20790E0

AT211,212,CT21#,ST215

DK. ROSE,TRIM4#

 1
73360-20790B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM11,12

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-20790B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM11,12

 1
73360-20790E0

AT211,212,CT21#,ST215

DK. ROSE,TRIM4#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-20500B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM11,12

 1
73380-20500E0

AT211,212,CT21#,ST215

DK. ROSE,TRIM4#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-20500B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM11,12

 1
73380-20500E0

AT211,212,CT21#,ST215

DK. ROSE,TRIM4#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-20500B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM11,12

 1
73380-20500E0

AT211,212,CT21#,ST215

DK. ROSE,TRIM4#

 1
73408 - BELT ASSY, REAR SEAT 3 POINT TYPE, CENTER
73350-20200B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
73350-20200E0

AT211,212,CT21#,ST215

DK. ROSE,TRIM4#

 1
73408 - BELT ASSY, REAR SEAT 3 POINT TYPE, CENTER
73350-20200B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
73350-20200E0

AT211,212,CT21#,ST215

DK. ROSE,TRIM4#

 1
73460 - BELT ASSY, REAR SEAT 3 POINT TYPE, CENTER RH
73460-20010B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM11,12

 1
73460-20010E0

AT211,212,CT21#,ST215

DK. ROSE,TRIM4#

 1
Common parts
90105-11036
90109-11030
90109-11032
90901-19040
91515-61020
91631-40614
